ProgressiveRC 10S FMA Cellpro - Manual (Page 7)

7

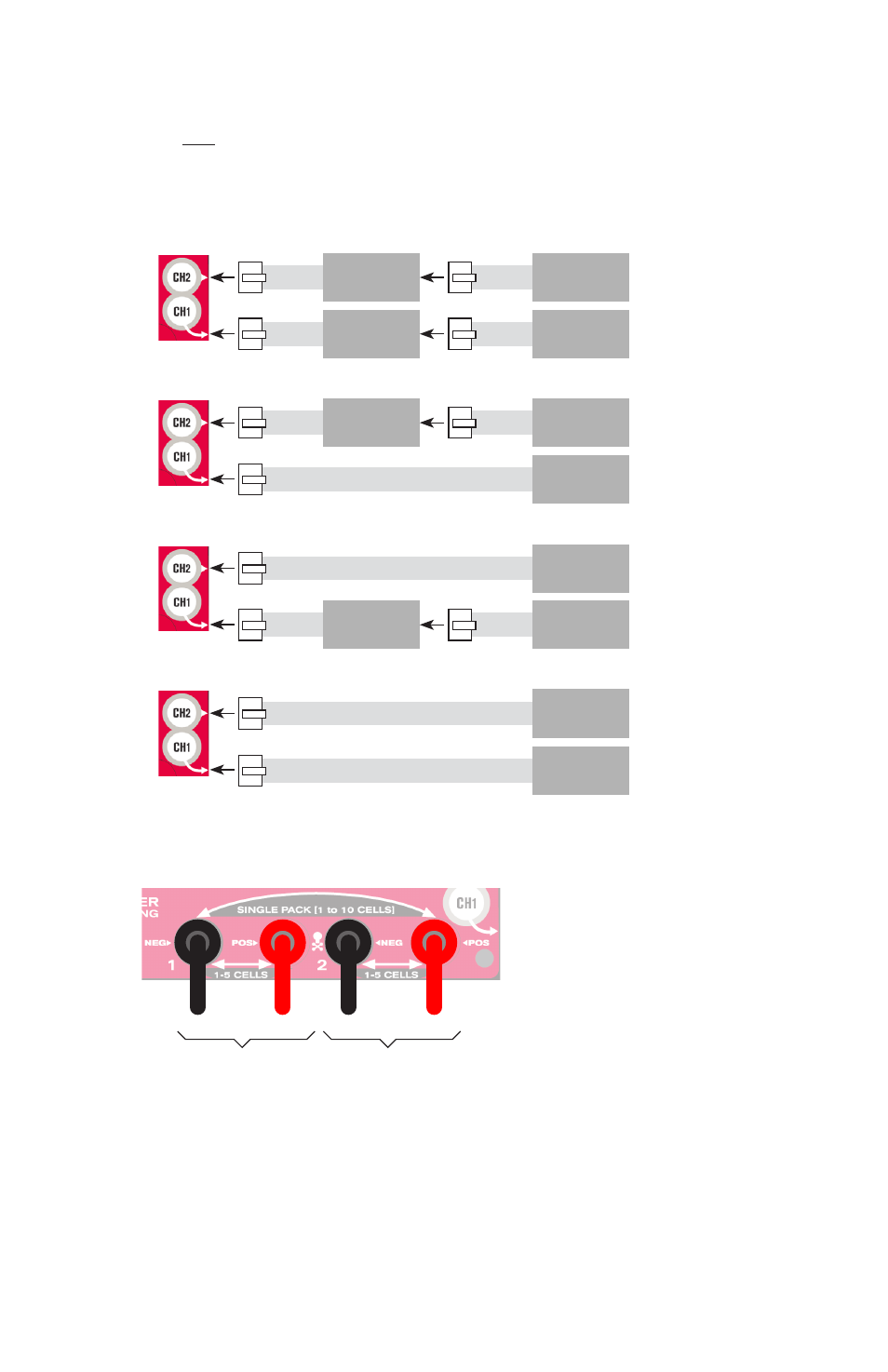

Connecting two 1s to 5s Cellpro packs
1. How you connect the Cellpro packs’ node connectors to the charger depends on the packs’
configurations. Find the configurations in the diagrams below, then connect as shown in that
diagram.
2. If you are using the discharge wires during charging, connect the discharge wires into the ba-
nana jacks as shown below.
or
If you are not using the discharge wires during charging, insert the Plug Blocker into the out-
ermost banana jacks.
+ – – +
From Ch1 pack From Ch2 pack
6-pin to 5-pin
Adapter
1s to 4s
Cellpro pack
6-pin to 5-pin
Adapter
1s to 4s
Cellpro pack
5s
Cellpro pack
6-pin to 5-pin
Adapter
1s to 4s
Cellpro pack
5s
Cellpro pack
6-pin to 5-pin
Adapter
1s to 4s
Cellpro pack
5s
Cellpro pack
5s
Cellpro pack
