6

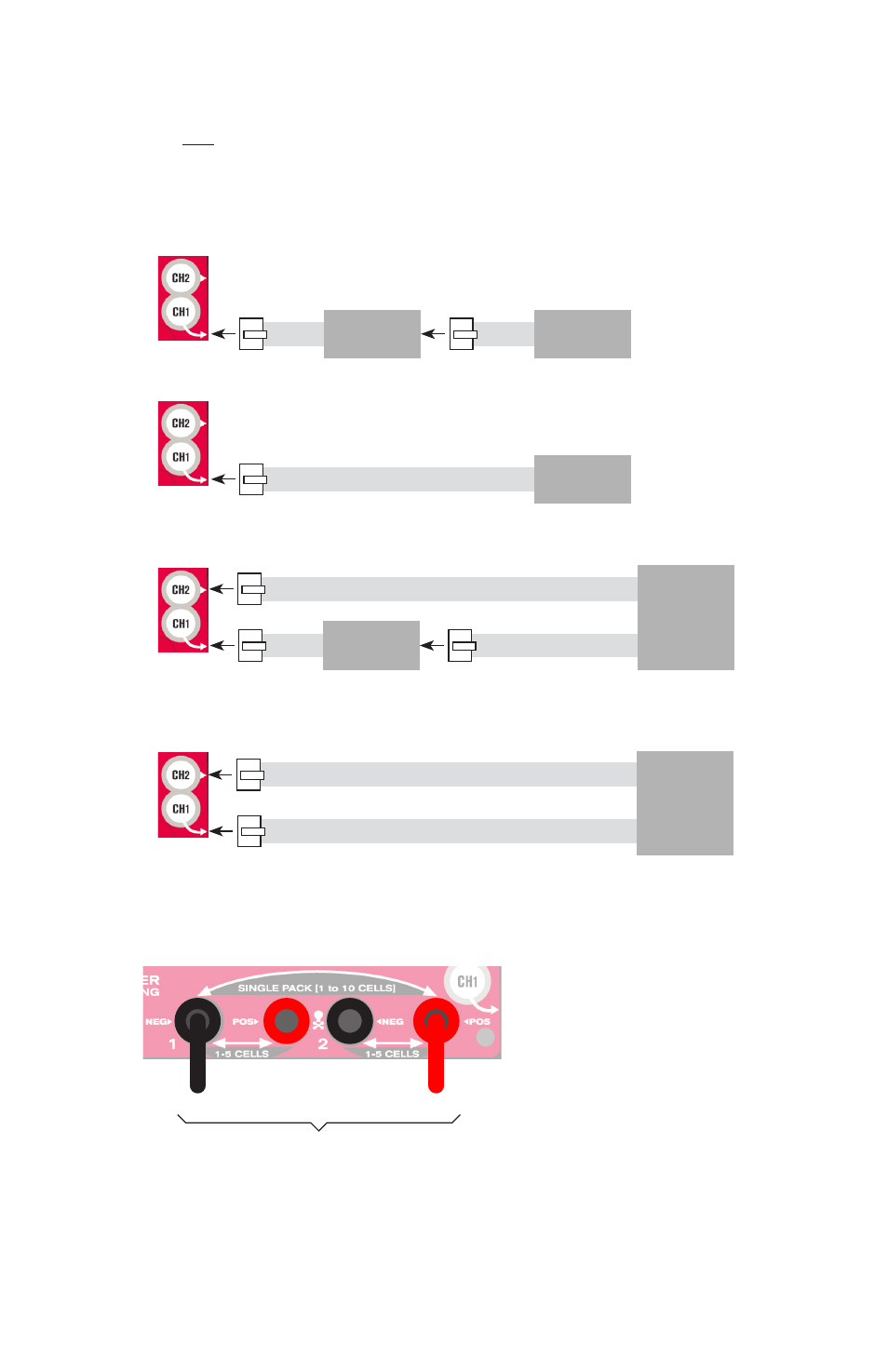

Connecting one 1s to 10s Cellpro pack
1. How you connect the Cellpro pack’s node connector(s) to the charger depends on the pack’s
configuration. Find the pack’s configuration in the diagrams below, then connect as shown in
that diagram.
2. If you are using the discharge wires during charging the single pack, plug the discharge wires
into the outermost banana jacks.
or
If you are not using the discharge wires during charging, insert the Plug Blocker into the out-
ermost banana jacks.
6-pin to 5-pin
Adapter
6s to 9s
Cellpro pack
Pack positive and
higher-numbered nodes
Pack negative and
lower-numbered nodes
+ –
From single pack connected to Ch1
5s
Cellpro pack
6-pin to 5-pin
Adapter
1s to 4s
Cellpro pack
10s
Cellpro pack
Pack positive and
higher-numbered nodes
Pack negative and
lower-numbered nodes
