Parts
 Cellpro 10s Charger
 2 6-pin to 5-pin node connector adapters (to enable Cellpro packs equipped with 5-pin con-
nectors to be charged using the Cellpro 10s Charger)
 Plug Blocker (to enable charging packs without connecting discharge wires)
 Optional: FUIM2 PC connectivity set (required for using the Charge Control Software)

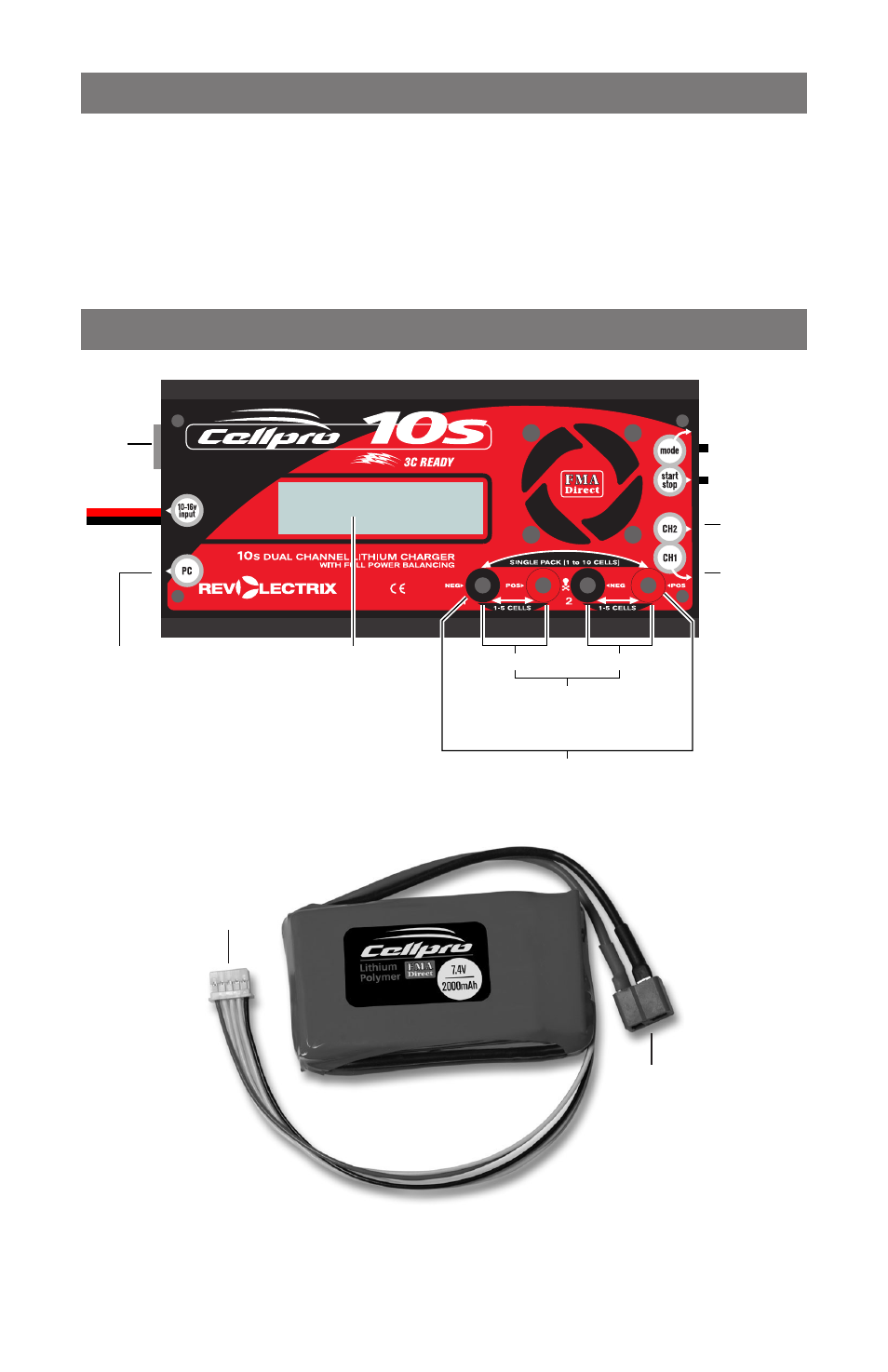

Charger and pack terminology
Mode button
Start/Stop button
Channel 1
node connector
Channel 2
node connector
Banana jacks for discharge wires when charging one pack, or
insert Plug Blocker when not charging through discharge wires
Banana jacks for discharge
wires when charging two
packs at the same time
To power
source
Auto
mini-
fuse
Connect FUIM2 here when
using Charge Control Software
Display
Channel 1 Channel 2
Discharge wires:
Red = pack positive
Black = pack negative
Node connector
