Oldcastle BuildingEnvelope HP-1750 - Manual (Page 7)

7 JULY 2011
H P - 1 7 5 0 I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)

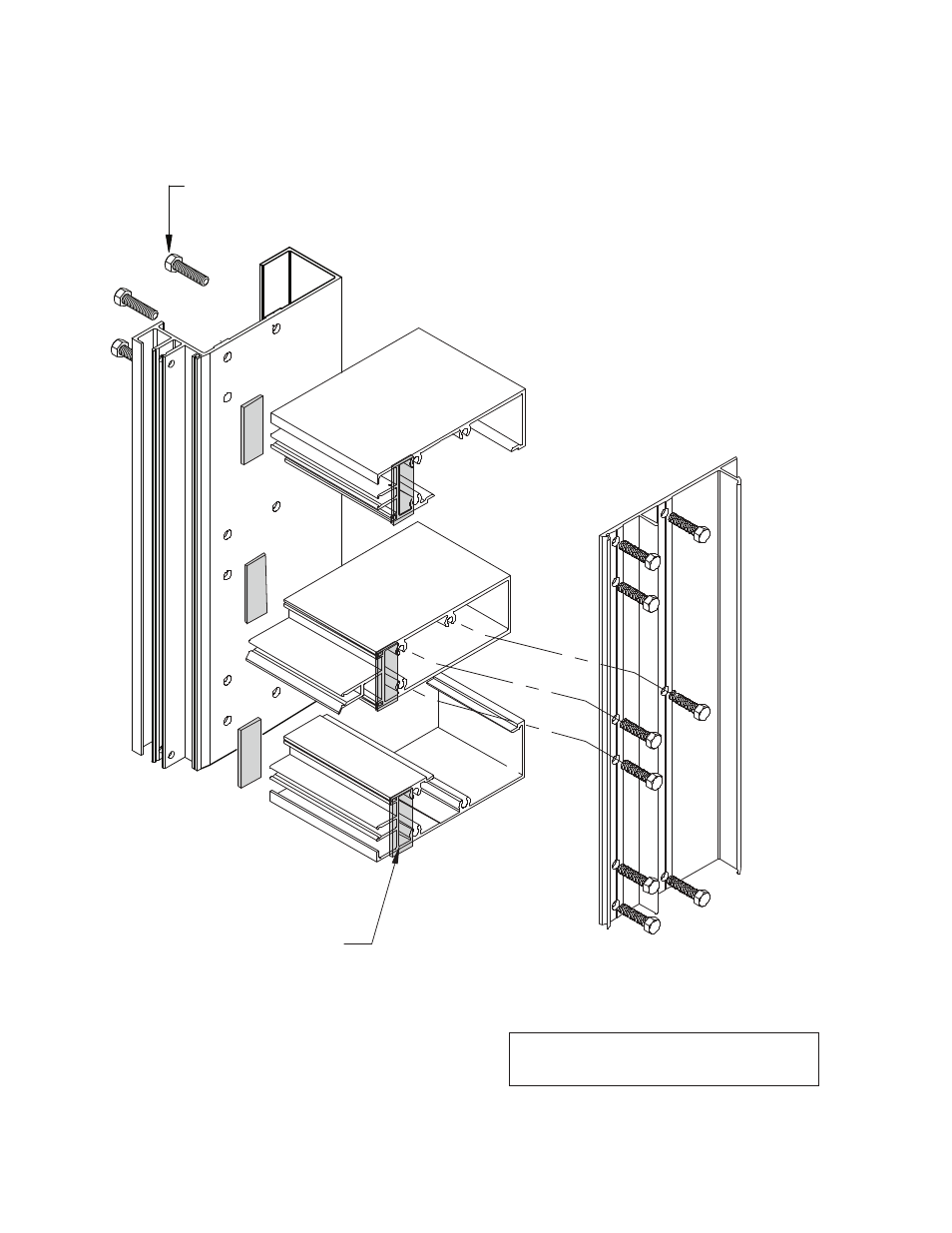

JAMB FABRICATION AND ASSEMBLY
HP-10435
HP-10436
HP-10390
FS-8 (#14 X 1" HHSTS)
3 PER HORIZONTAL
HP-10435
SCHNEE-MOREHEAD SM5601
1/8" X 1/2" TACKY TAPE
VW PART # 4666 (OR EQUAL)
NOTE: KEEP TAPE AWAY
FROM SCREWSPLINES
NOTE:
MULL CAPS REQUIRED
CAPTURED JAMB ALSO USED FOR SSG ASSEMBLY
AT HEAD & SILL.
REFERENCE SHEET #8
FOR INSTALLATION.
NOTE: USE RAZOR KNIFE TO TRIM
EXCESS SEALANT TAPE. DO NOT
PULL TAPE TO TRIM.
HP-10433
