H P - 1 7 5 0 I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)

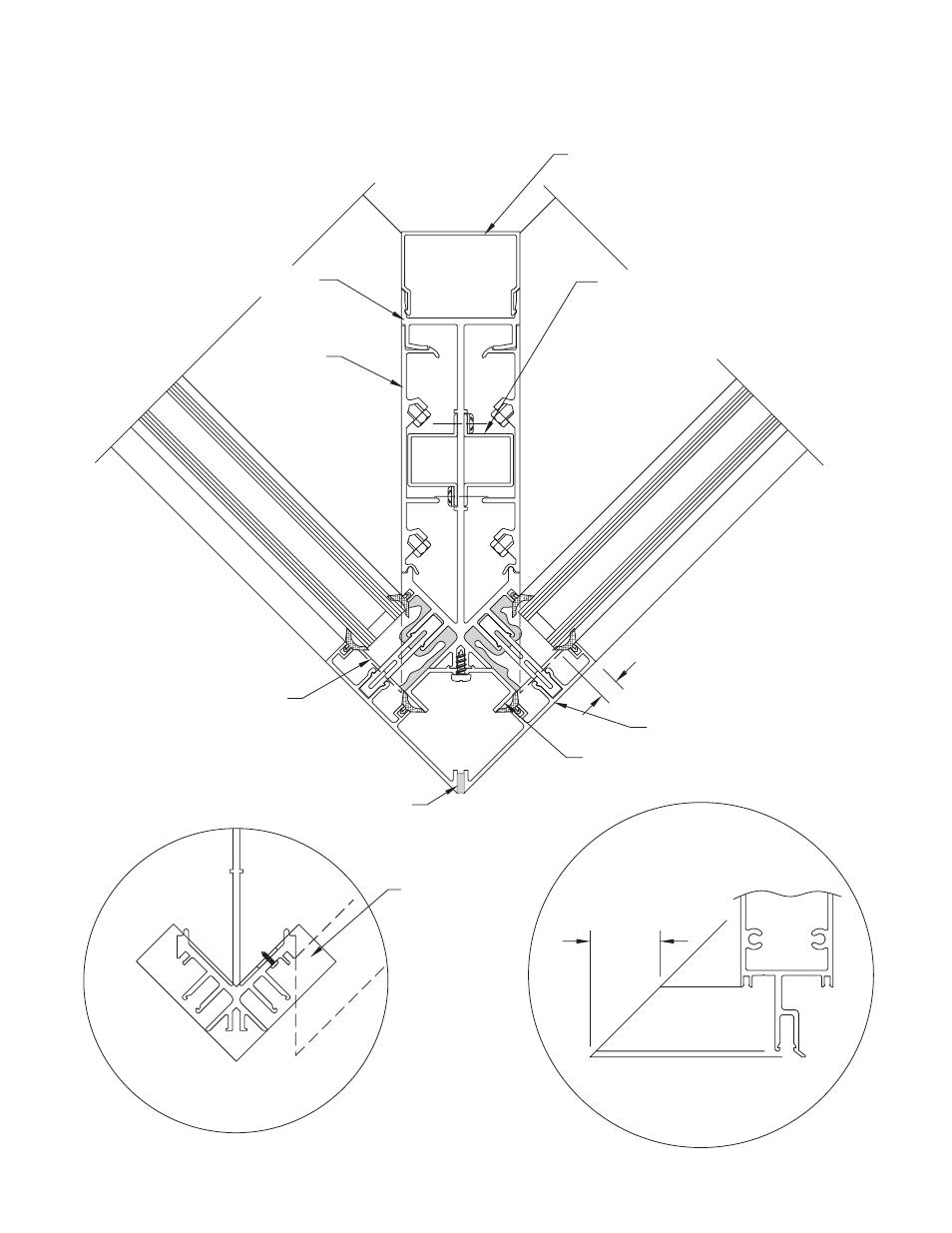

90 OUTSIDE CORNER
DLO +
1 5/16"
MITER DETAIL
HP-10465
HP-10457
O
MODIFIED HP175-FP-4
DIVERTER. BED IN SEALANT
& SEAL AS SHOWN
SEAL CONTINUOUS
HP175-FP-57
MULL CAP. BED IN
SEALANT & ATTACH
W/ FS-202. LOCATE
AT HEAD & SILL
REFERENCE SHEET #8 FOR
TYPICAL MULL CAP
INSTALLATION
HP-10455
HP175-FP-62
AT MID-SPAN ANCHORS.
ATTACH W/ (2) FS-6
(#10 X 3/4" PPH)
HP-10459
ATTACH W/ FS-55
@ 18" O.C.
HP-10460
3/8"
