Oldcastle BuildingEnvelope HP-1750 - Manual (Page 12)

12 JULY 2011
H P - 1 7 5 0 I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)

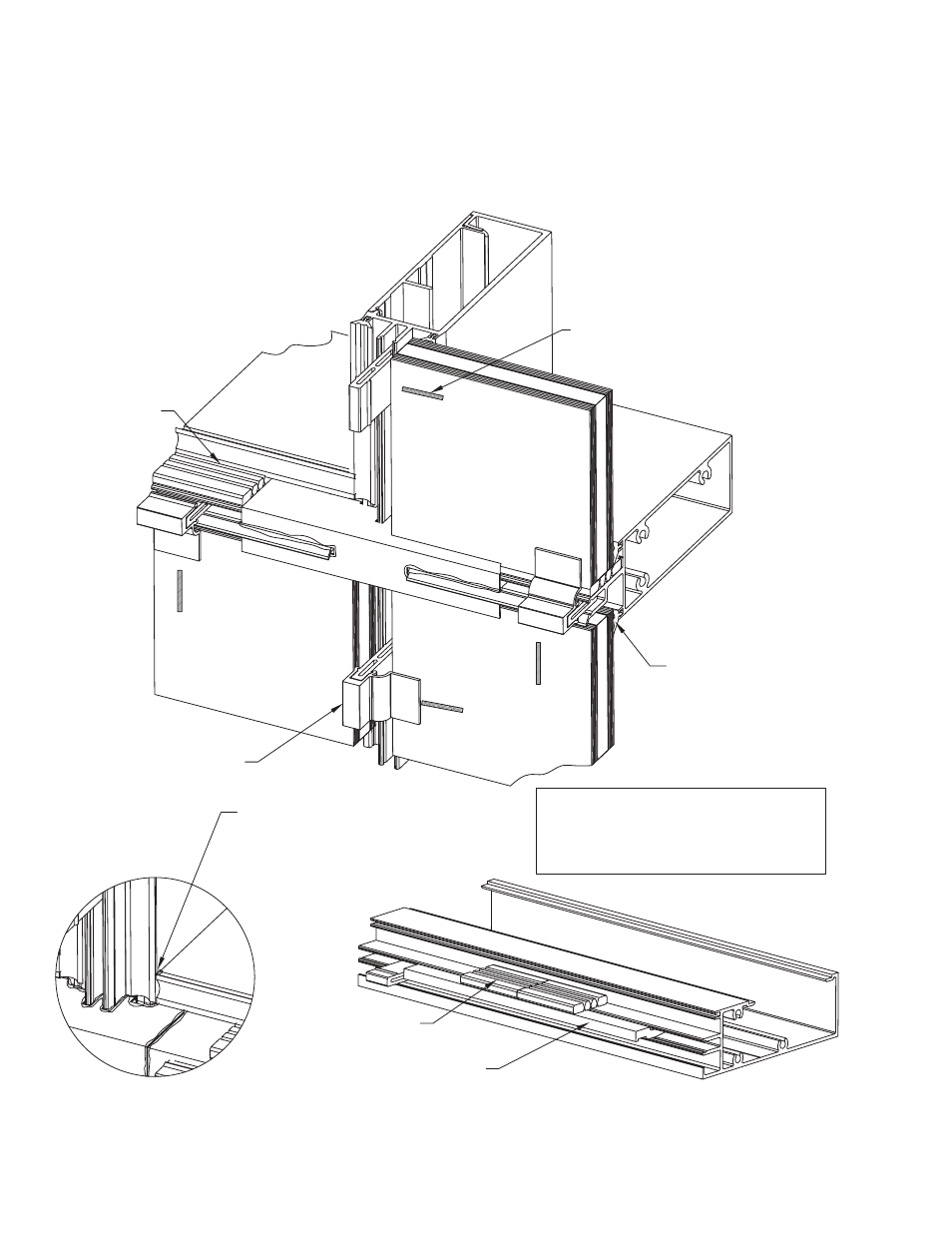

GLAZING - 1” GLASS
NHP-6 GASKETS.
CUT GASKET S D.L.O.
+1/4" PER FOOT.
SEAL CORNERS PER
DETAIL BELOW.
MARK LOCATION OF EACH
GLAZING CLIP PRIOR TO
INSTALLING FACE CAPS.
CAUTION:
BE CERTAIN THAT GLASS IS PLACED
FIRMLY AGAINST INTERIOR GASKET
BEFORE SETTING ON BLOCKS. GLASS
BREAKAGE CAN OCCUR AT OR NEAR
SETTING BLOCKS DUE TO THE WEIGHT
OF THE GLASS NOT ALLOWING THE
GLASS TO MOVE TOWARD INTERIOR
GASKET. LUBRICATING THE TOP OF
THE SETTING BLOCK WILL HELP
INSURE PROPER SETTING OF GLASS
HP-36 TEMPORARY
CLIPS. SLIDE ONTO
GLAZING CLIPS.
SEAL BETWEEN VERTICAL
AND HORIZONTAL GASKETS.
TOOL INTERIOR OF JOINT
TO FORM FILLET SEAL.
GLAZING NOTE:
GLAZE SYSTEM FROM BOTTOM
TO TOP. INSTALL BRIDGE
TO HORIZONTAL ABOVE AS YOU
PROCEED UP THE BUILDING.
(2) HP-17
SETTING
BLOCKS
(2) HP-17
SETTING BLOCKS
HP-41
SETTING CHAIR
(2) PER DLO
