Oldcastle BuildingEnvelope HP-1750 - Manual (Page 13)

13 JULY 2011
H P - 1 7 5 0 I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)

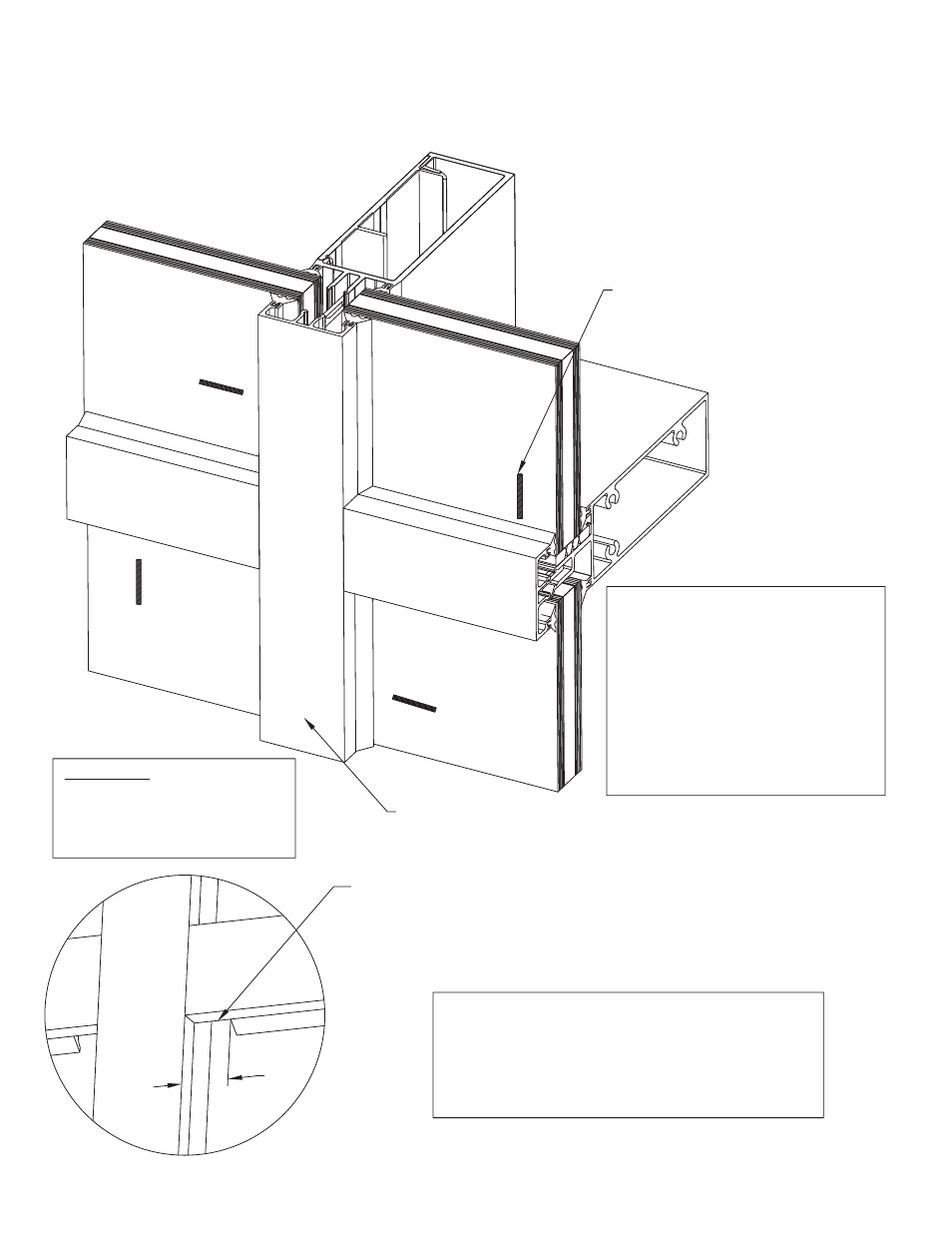

INSTALLING FACE CAPS
CUT NHP-6 GASKET 3/4" SHORT
ON BOTTOM SIDE OF HORIZONTAL
FACE CAPS.
WHEN INSTALLING FACE CAPS
USE DEADBLOW HAMMER AND
IMPACT CAPS AT LOCATIONS
OF GLAZING CLIPS ONLY.
INSTALL VERTICAL CAPS
FIRST, THEN HORIZONTALS.
3/4"
NOTE:
SCREWSPLINE SYSTEM
AVAILABLE WITH 1" OR 1/4"
GLAZING. WHEN INSTALLING
1" SYSTEM AND GLAZING 1/4"
GLASS, ADAPTORS WILL BE
REQUIRED. REFERENCE
SHEET #18.
IF 1/4" GLAZING SYSTEM IS
USED REFERENCE SHEET #38
FOR ADDITIONAL INFORMATION.
FACE CAPS:
HP-10437 @ TYPICAL MULLS &
HORIZONTALS
HP-10438 @ PERIMETER
JAMBS, HEAD & SILL
CAP INSTALLATION NOTE:
TO INSTALL FACE CAPS, LOCATE CAP ONTO
CLIPS AT EACH END. PRESS FIRMLY AGAINST
CAP UNTIL GASKET IS COMPRESSED AGAINST
GLASS AND STRIKE AT PREVIOUSLY MARKED
LOCATIONS OF GASKET CLIPS. WHEN INSTALLED
PROPERLY CAPS SHOULD RESIST ROTATION.
