Page 21

JULY 2011

H P - 1 7 5 0

I N S T A L L A T I O N M A N U A L

Web Address: www.oldcastlebe.com

Phone: 1-866-OLDCASTLE (653-2278)

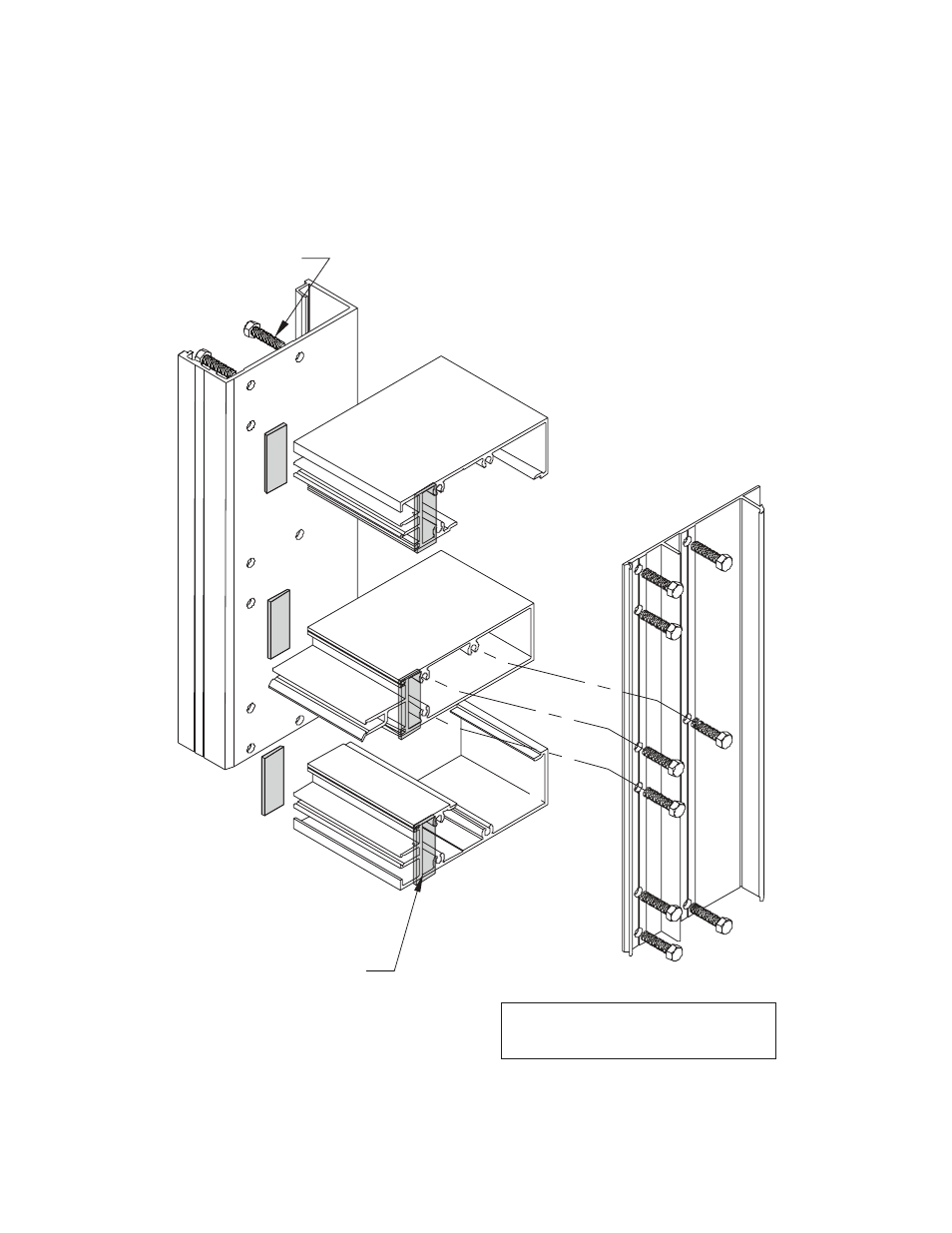

SSG MULLION ASSEMBLY

FS-8 (#14 X 1" HHSTS)

3 PER HORIZONTAL

HP-10469

HP-10435

HP-10436

SCHNEE-MOREHEAD SM5601

1/8" X 1/2" TACKY TAPE

VW PART #4666 (OR EQUAL)

NOTE: KEEP TAPE AWAY

FROM SCREWSPLINES

NOTE:

MULL CAPS REQUIRED

AT HEAD & SILL.

REFERENCE SHEET #25

FOR INSTALLATION.

NOTE: USE RAZOR KNIFE TO TRIM

EXCESS SEALANT TAPE. DO NOT

PULL TAPE TO TRIM.

HP-10435

HP-10390
