25 JULY 2011
H P - 1 7 5 0 I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)

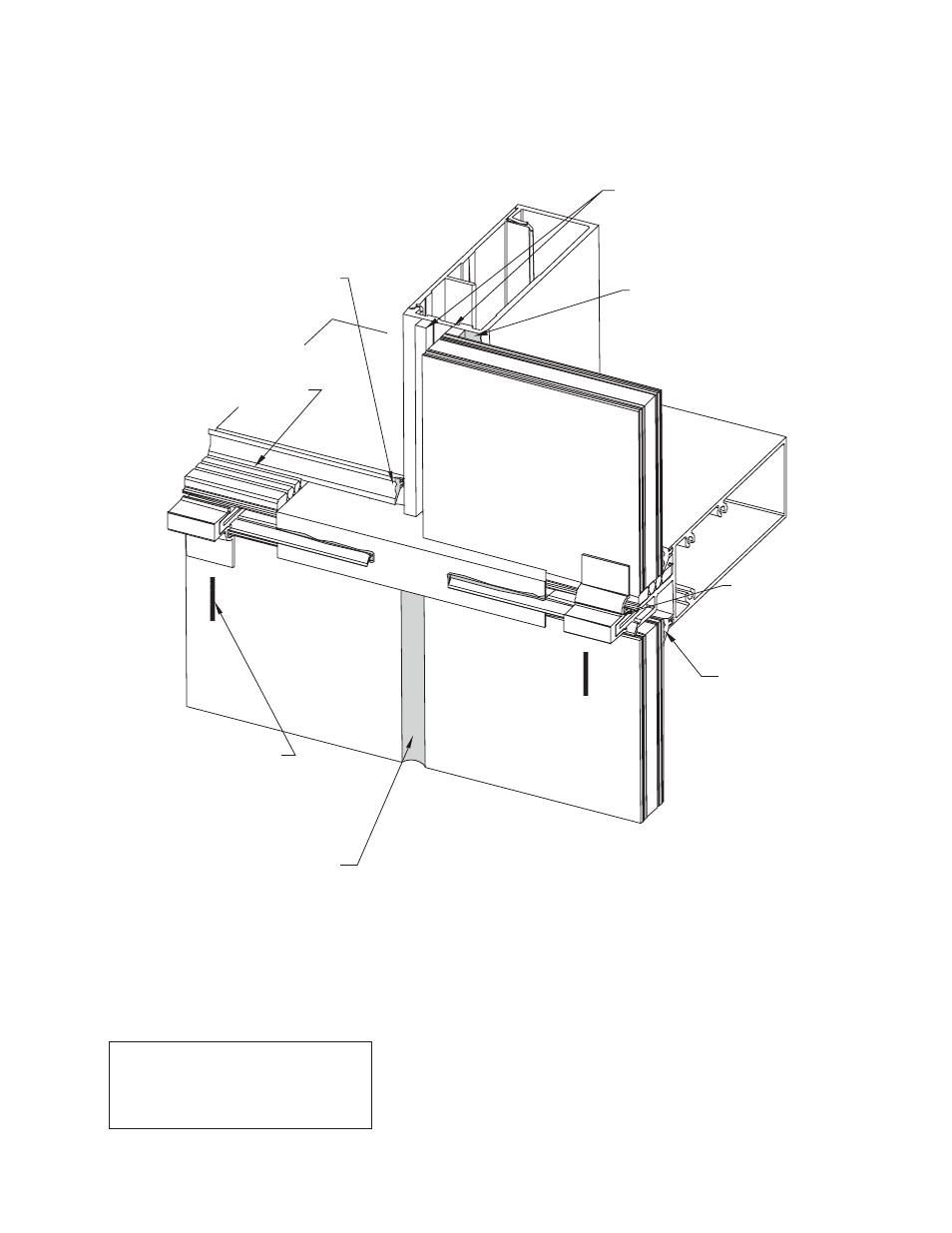

SSG - GLAZING 1” GLASS
WHEN RUNNING STRUCTURAL
SILICONE, SEAL GAP BETWEEN
GASKET AND TAPE.
HP-17
SETTING
BLOCK
MARK LOCATION OF EACH
GLAZING CLIP PRIOR TO
INSTALLING FACE CAPS.
WEATHER SEAL,
REFERENCE SHEET #26
FOR ADDITIONAL
INFORMATION
NOTES:
1) PEAL BACK 1" TO 2" OF PROTECTIVE
FILM FROM V2110 AT TOP AND BOTTOM
OF LITE.
2) BE CERTAIN THAT GLASS IS PLACED
FIRMLY AGAINST INTERIOR GASKET AND
TAPE BEFORE SETTING ON BLOCKS.
3) LEAVE PROTECTIVE FILM ON V2110
TAPE BETWEEN ENDS UNTIL GLASS IS
IN POSITION.
4) REMOVE REMAINDER OF PROTECTIVE
FILM FROM SPACER TAPE. (NOTE: GLASS
CAN NOT BE ADJUSTED ONCE IN
CONTACT WITH ADHESIVE OF SPACER
TAPE)
5) INSTALL HP-36 HORIZONTAL
TEMPORARY CLIPS.
NHP-6 GASKETS.
CUT GASKETS D.L.O.
+1/4" PER FOOT.
HP-36 TEMPORARY
CLIPS. SLIDE ONTO
GLAZING CLIPS.
STRUCTURAL SILICONE
V2110 SPACER TAPE, ALIGN TAPE
WITH "V" GROOVE IN MULLION
SEE NOTES BELOW FOR
INSTALLATION INFORMATION
GLAZING NOTE:
GLAZE SYSTEM FROM BOTTOM
TO TOP. INSTALLING BRIDGES
TO HORIZONTAL ABOVE AS YOU
PROCEED UP BUILDING.
