H P - 1 7 5 0 I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)

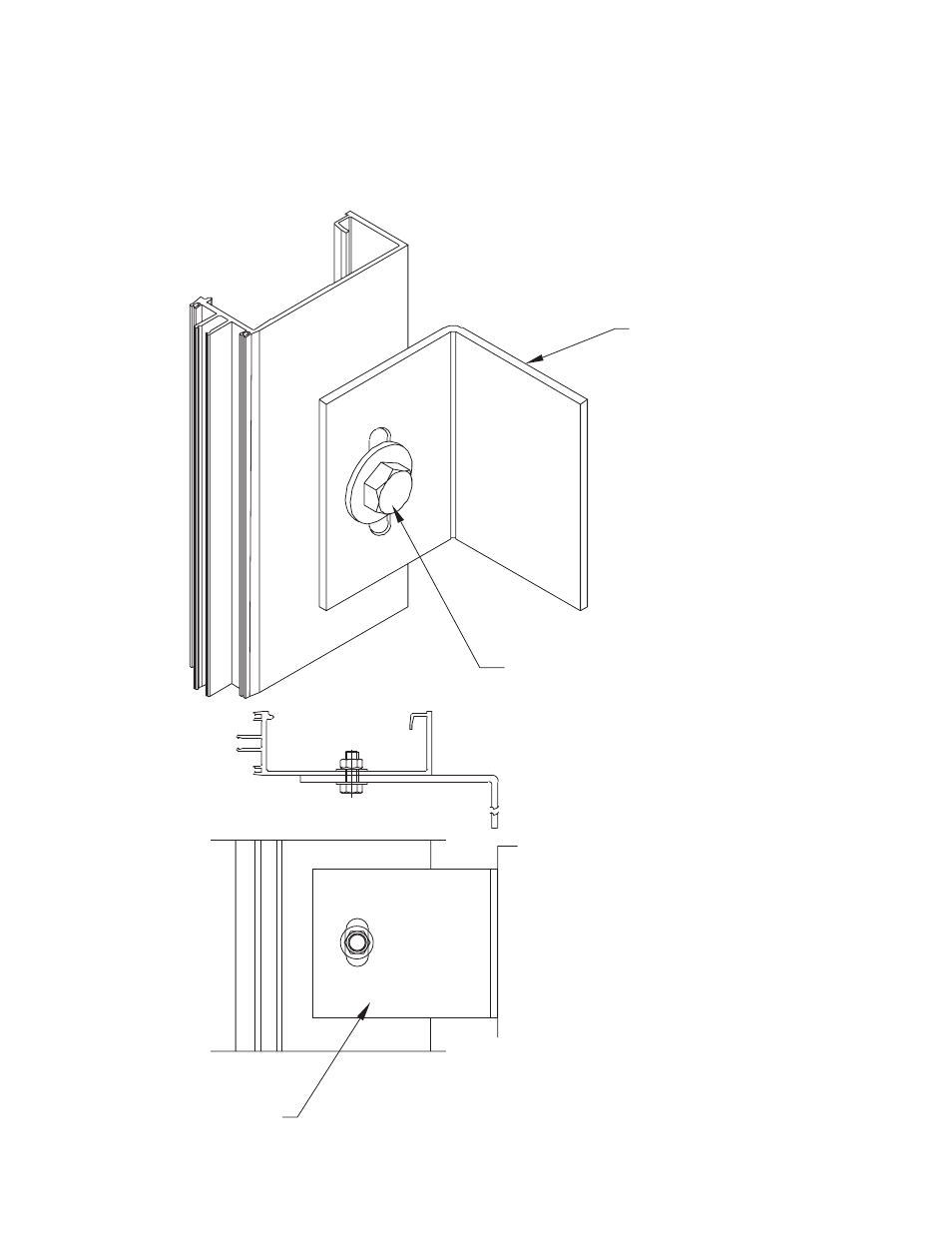

INSTALLING WINDLOAD ANCHOR
ANCHOR REQUIRED AT
MULLS (SIZE BY STRUCTURAL
REQUIREMENTS)
ANCHOR SIZE DETERMINED
BY STRUCTURAL REQUIREMENTS
NOTE:
CURTAIN WALL INSTALLATIONS ARE
LIMITED TO A MAXIMUM OF THREE
STORY CONSTRUCTION WITH DEADLOAD
SPLICES AT EITHER THE SECOND OR
THIRD FLOOR. SINCE THE FILLER
SIDE OF THE MULLION ASSEMBLY
SNAP FITS WITH THE MULLION, NO
PROVISION IS MADE TO EITHER
ANCHOR OR SPACE THE MEMBER AT A
SPLICE.
WINDLOAD ANCHOR
SLOT SIZE DETERMINED
BY STRUCTURAL
REQUIREMENTS
