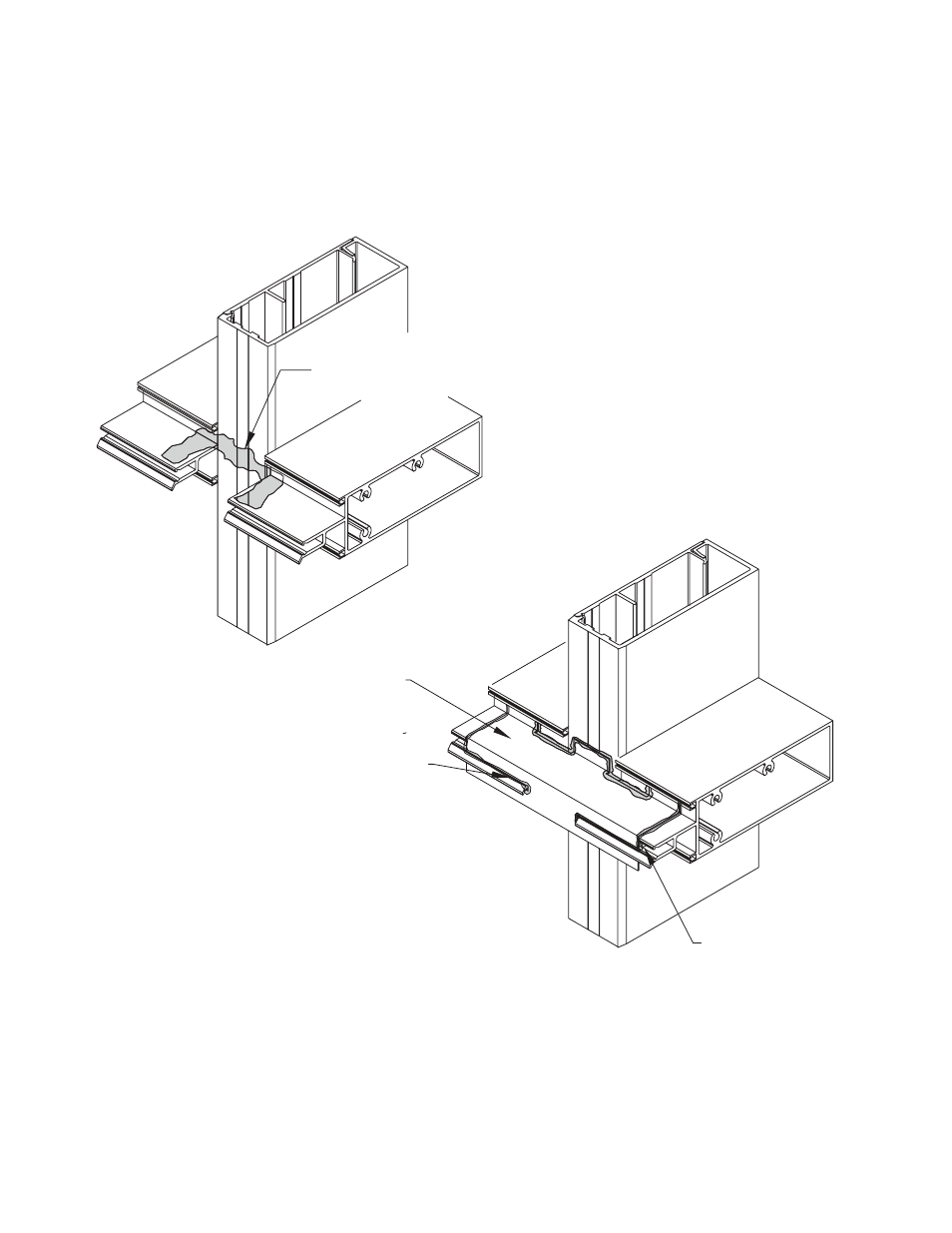

SSG BRIDGE INSTALLATION
RUN SEALANT ACROSS
FACE OF MULL AND TOP
OF HORIZONTALS
HP175-FP-61
BRIDGE
1) BED FACE OF MULL
AND TOP OF HORIZONTALS
WITH SEALANT.
2) SET HP175-FP-61 BRIDGE
INTO PLACE. HOOK OVER DRIP
LEGS AND ROTATE INTO
PROPER POSITION.
3) SEAL AND TOOL ACROSS
FACE OF MULL AND HORIZONTALS
4) SEAL CLIP POCKET AT EACH END OF BRIDGE
5) SEAL ABOVE AND BELOW DRIP LEG OF
HORIZONTALS
SEAL ACROSS FACE
OF BRIDGE AT
DRIP LEG
SEAL CLIP
POCKET AT EACH
END OF BRIDGE
STEP 1
STEP 2
GLAZE SYSTEM FROM BOTTOM TO TOP.
INSTALLING DIVERTERS TO HORIZONTAL
ABOVE AS YOU PROCEED UP BUILDING.
