Oldcastle BuildingEnvelope HP-1750 - Manual (Page 11)

11 JULY 2011
H P - 1 7 5 0 I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)

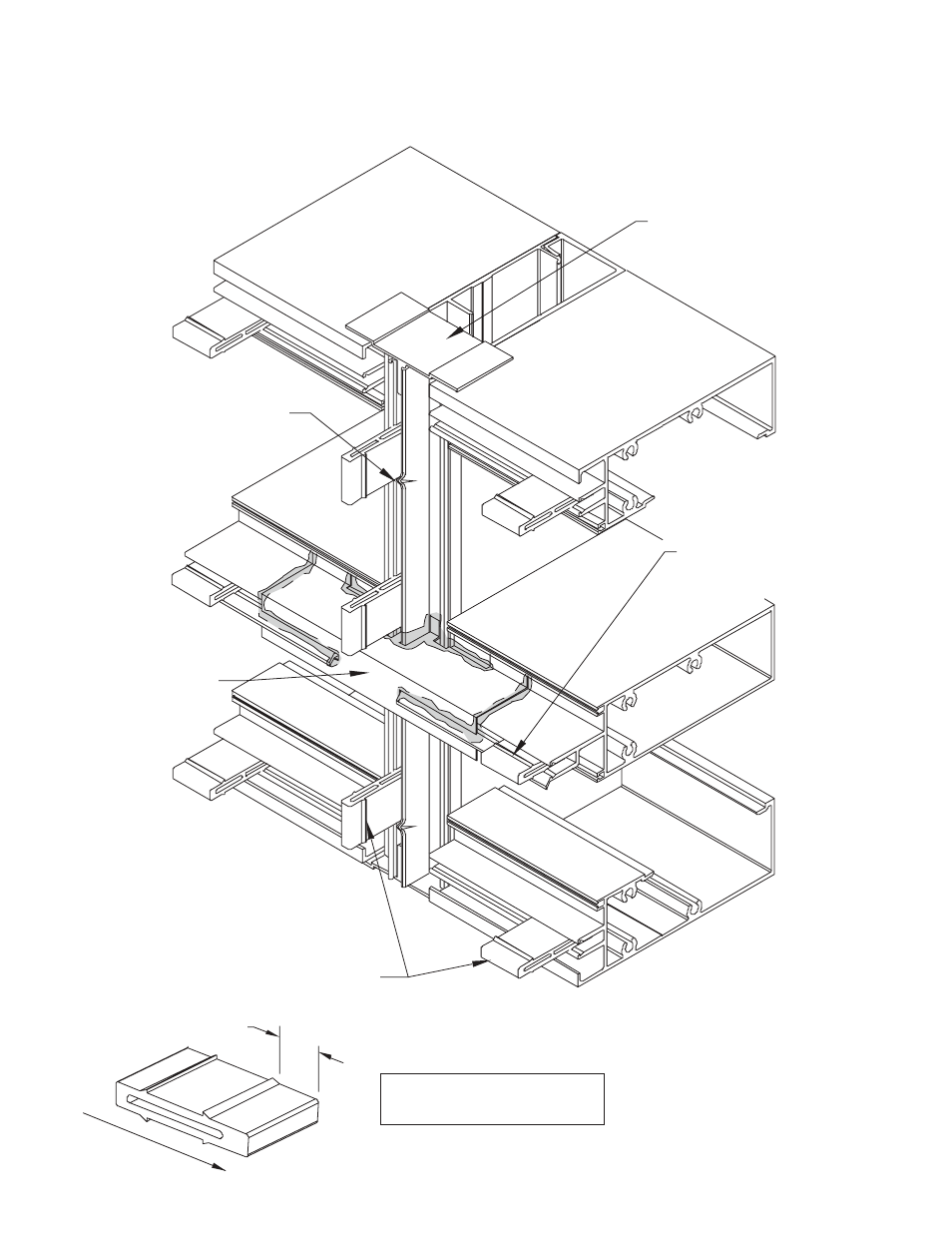

GLAZING CLIP INSTALLATION
STAKE UNDERSIDE
OF VERTICAL CLIPS
TO PREVENT SLIDING
HP175-FP-43
REF SHEET #10
FOR SEALANT
INSTRUCTIONS
HP-10 GLAZING CLIPS
LOCATE AT MAXIMUM OF 12" O.C.
(VERTICALS, HEAD & SILL)
9/16"
TOWARDS
GUTTER
NOTE: CLIPS ARE NOT
SYMMETRICAL, INSTALL AS
SHOWN.
HP-8 GLAZING CLIP
LOCATE AT 12" O.C.
(HP-8 @ INT. HORIZ ONLY!)
HP175-FP-51 MULL CAP
REF SHEET #8 FOR
INSTALLATION & SEALANT
INSTRUCTIONS
