Adding/Replacing EPIMs
SEHI User’s Guide 4-9
4.5 ADDING/REPLACING EPIMS
This section contains procedures on how to add or replace an Ethernet
Port Interface Module (EPIM) to upgrade or change the capabilities of
your SEHI. After installing a new EPIM, refer to the appropriate EPIM
section in Appendix A to verify proper operation.
Perform the following steps to install an EPIM:
1. Remove the coverplate or the EPIM (whichever applies).
2. Slide the new EPIM into place, making sure that the connectors on the
rear of the EPIM align correctly and firmly with the connector inside
the SEHI. See Figure 4-8.
3. Tighten the mounting screw.

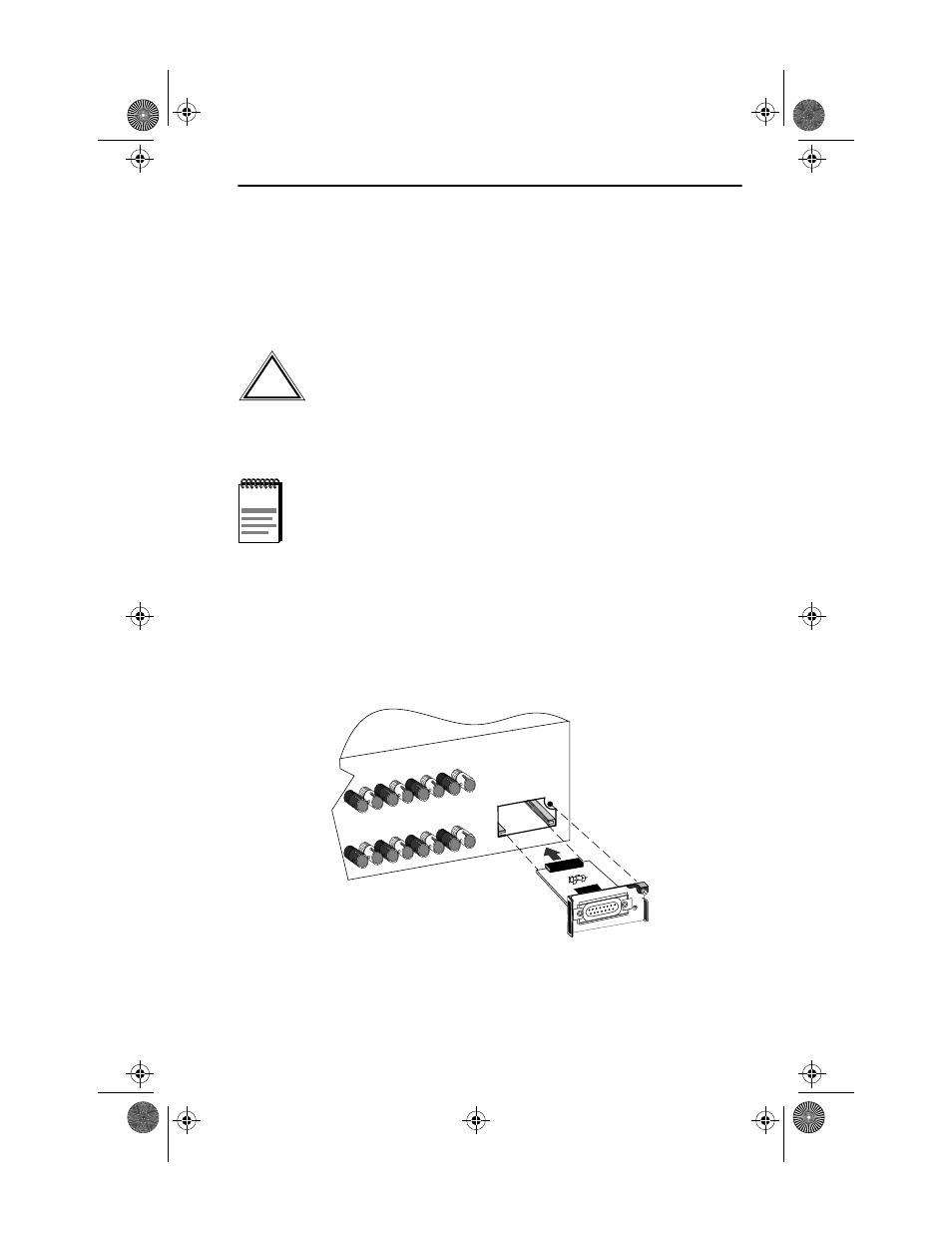

Figure 4-8 Installing an EPIM
!
C AUT IO N
Observe all static precautions while handling EPIMs.
NOTE
When removing an EPIM, pull the module out straight to
prevent damage to the connector.
