Chapter 4: Installation
4-8 SEHI User’s Guide
If one end of a HubSTACK Interconnect cable is disconnected without
disconnecting the other end attached to the hub, disconnect the cable from
the OUT port as shown in Figure 4-7 to ensure that the HubSTACK
Interconnect cable is terminated properly.

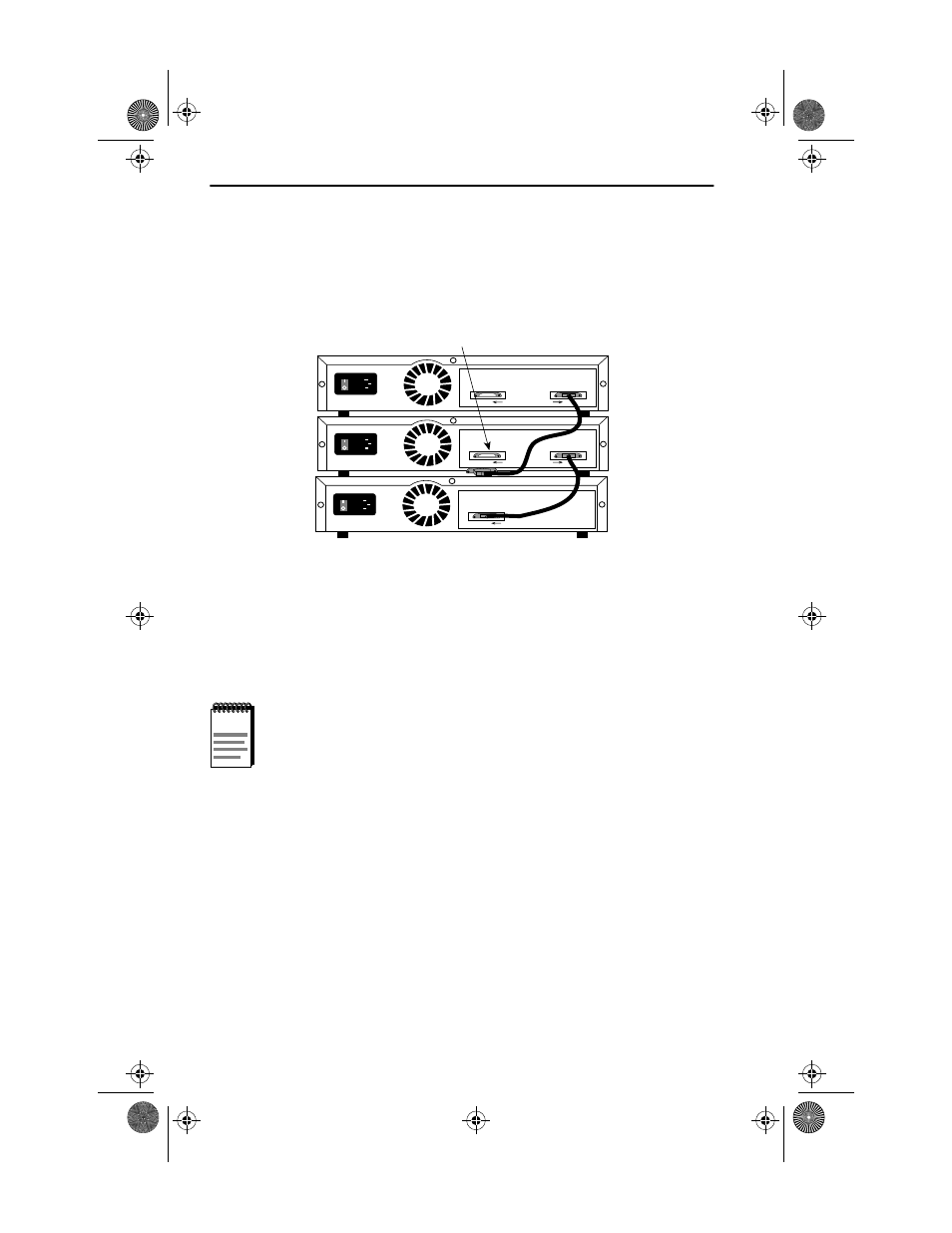

Figure 4-7 Disconnecting the HubSTACK Interconnect Cable
Proceed to Section 4.4 to connect power.
4.4 CONNECTING THE SEHI TO THE POWER SOURCE
Connect the SEHI to the power source as follows:
1. Plug the power cord into the back panel of the SEHI.
2. Plug the other end of the power cord into a grounded wall outlet.
3. Verify that the PWR LED is on, indicating that the SEHI is receiving
power. After the SEHI runs a self test, the CPU LED blinks green
indicating normal operation. If the LED remains red, the processor is
faulty, contact Cabletron Systems Technical Support.
NOTE
The SEHI uses a universal power supply that operates
between 100–125 Vac or 200–250 Vac, 50/60 Hz.
Disconnect SEH and SEHI
Interconnect Cables at the "OUT" Port
SEH INTERCONNECT
SEH-22FL 100BASE-FL HUB WITH LANVIEW®
OUT IN
SEH INTERCONNECT
SEH-22FL 100BASE-FL HUB WITH LANVIEW®
OUT IN
165211
SEH INTERCONNECT
SEHI-22FL 100BASE-FL HUB WITH LANVIEW®
OUT
