Quick Start Guide
Right Side Panel - Software Upgrade Views
6.1.3
Figure 16 shows an example of the System Monitor main page with Hub 1 selected in the menu and the
Software Upgrade tab selected in the right side panel. .

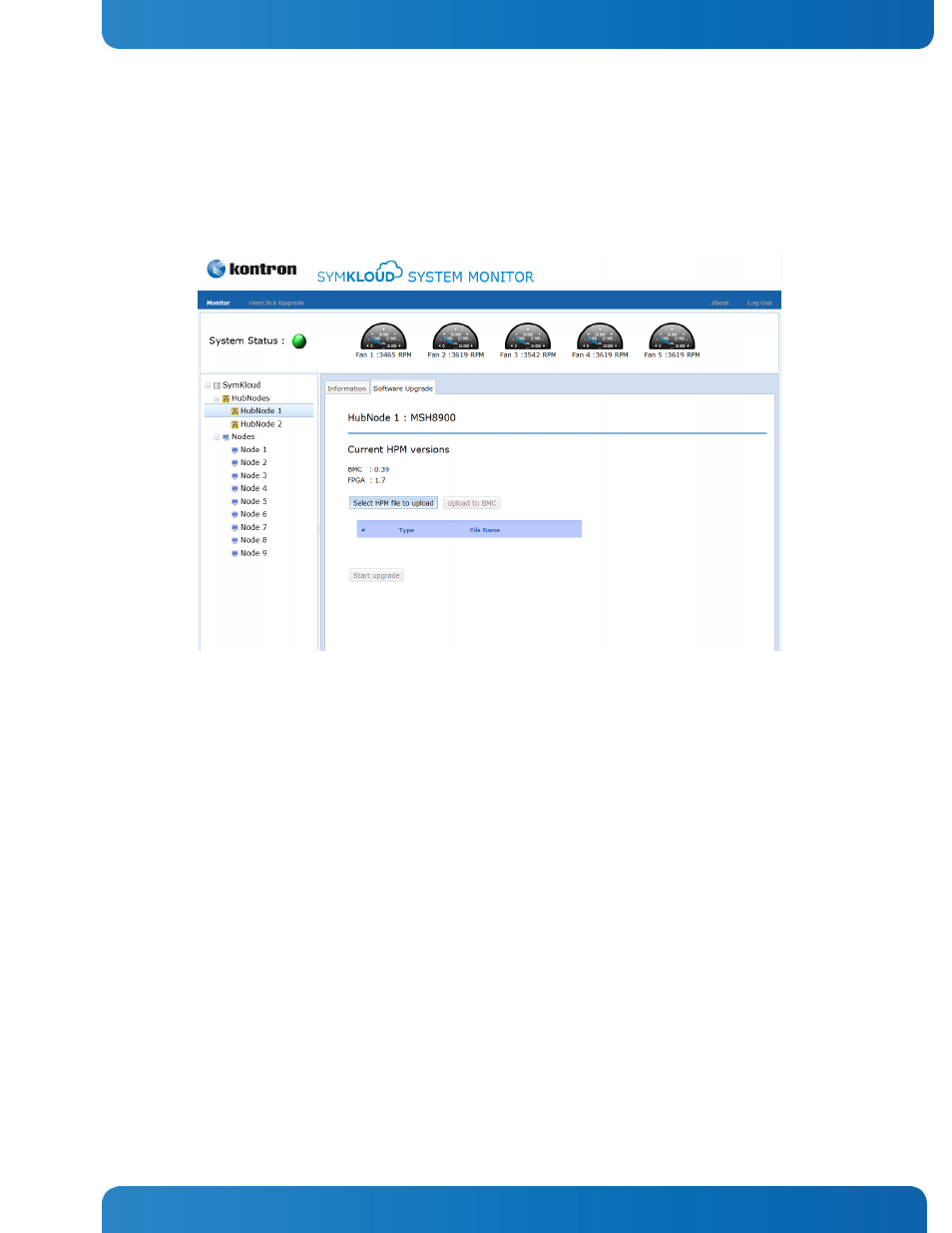

Figure 16: System Monitor Main Page (Hub System Upgrade Example)
In this example, the current BMC and FPGA software versions are displayed and either of these can be
selected for uploading and an upgrade.
Figure 17 shows an example of the System Monitor main page with Processor Node 2 selected in the menu
and the Software Upgrade tab selected in the right side panel.
