Quick Start Guide

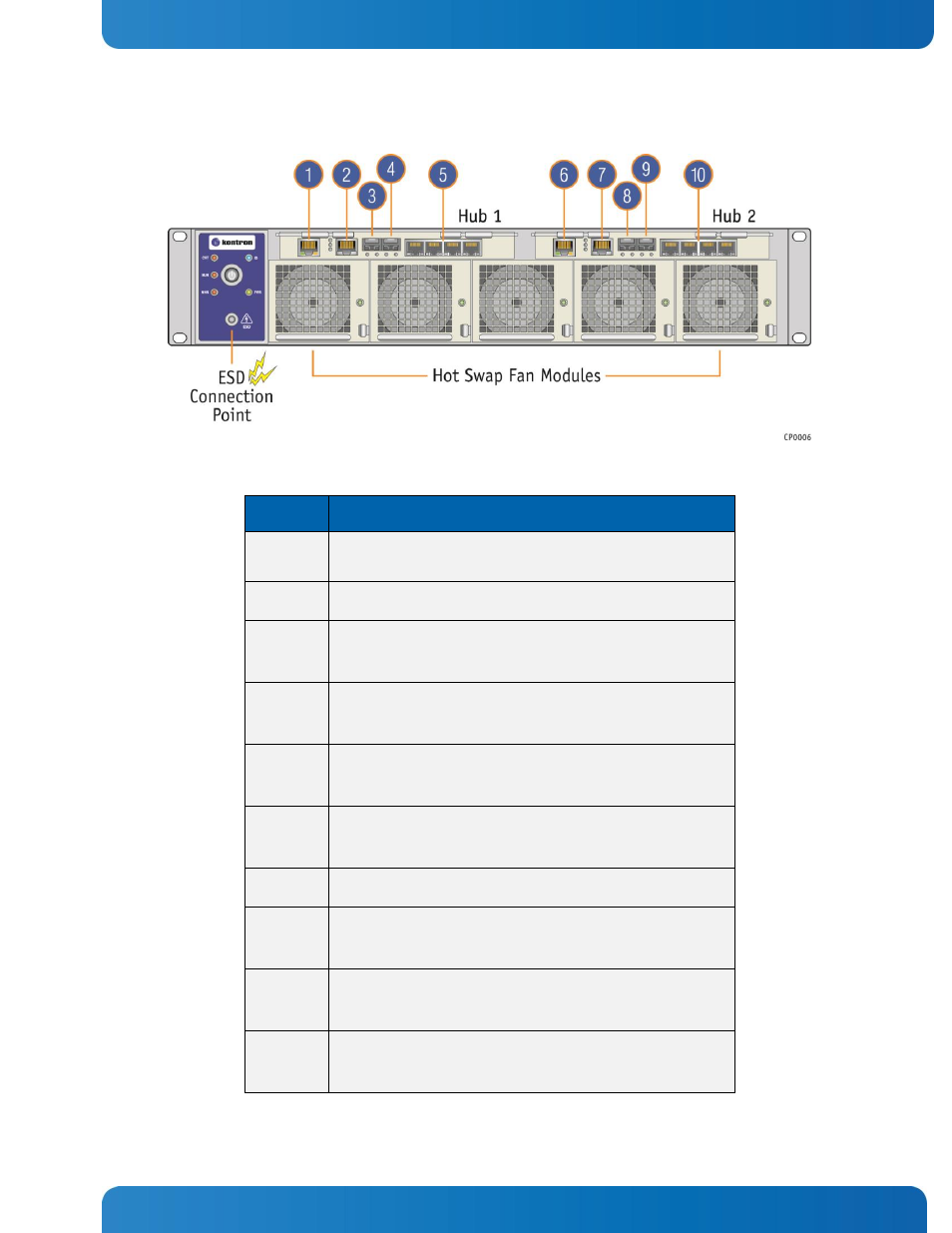

Figure 6: MS2900 Front I/O Connections
I/O Port Description
1
Management 1GbE RJ-45 port (Switch/ShMC 1)
(Marked ‘’MNGT’’ on the Hub 1 faceplate)
2 Console RJ-45 port (Switch/ShMC 1)
3
10GbE SFP+ stacking port (Switch/ShMC 1)
(Marked ‘’1’’ on the Hub 1 faceplate)
4
10GbE SFP+ uplink port (Switch/ShMC 1)
(Marked ‘’2’’ on the Hub 1 faceplate)
5
Quad 1GbE RJ-45 ports (Switch/ShMC 1)
(Marked ‘’3’’, ‘’4’’, ‘’5’’ and ‘’6’’ on the Hub 1 faceplate)
6
Management 1GbE RJ-45 port (Switch/ShMC 2)
(Marked ‘’MNGT’’ on the Hub 2 faceplate)
7 Console RJ-45 port (Switch/ShMC 2)
8
10GbE SFP+ stacking port (Switch/ShMC 2)
(Marked ‘’1’’ on the Hub 2 faceplate)
9
10GbE SFP+ uplink port (Switch/ShMC 2)
(Marked ‘’2’’ on the Hub 2 faceplate)
10
Quad 1GbE RJ-45 ports (Switch/ShMC 2)
(Marked ‘’3’’, ‘’4’’, ‘’5’’ and ‘’6’’ on the Hub 2 faceplate)
