2. Type the following values into the form:

USERNAME: admin

PASSWORD: admin
and click Sign in to access the SYMKLOUD System Monitor.

Main Page Overview

6.1.1

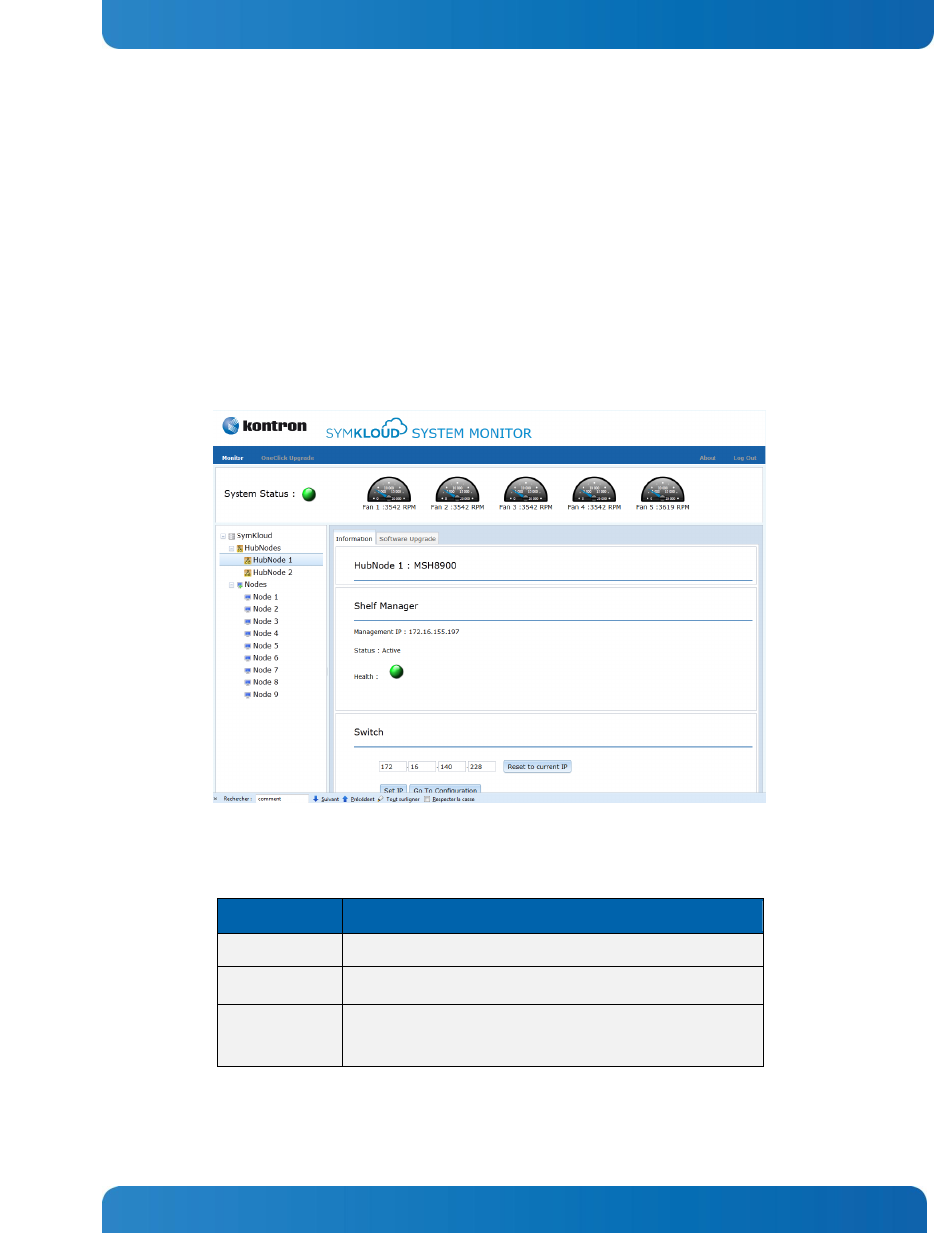

Figure 13 shows the layout of the System Monitor main page. This is the key user interface.

Figure 13: System Monitor Main Page

The System Monitor main page as shown in Figure 13 has three main sections:

Section

Function

System status bar

Overall system status/health and fan speed for all five fans

Left side panel

Menu of key chassis components: hubs and processor nodes

Right side panel

Tab 1: Information for the component selected in the menu

Tab 2: Software update for the selected component.
