11

www.kontron.com

Quick Start Guide

In addition to plugging in the power cord, you must also attach the grounding wire on the connector to the
grounding lug on the chassis lower right side (from the back) for proper chassis enclosure safety grounding.
The grounding lug can be positioned sideways, parallel with the chassis side, or turned up, facing toward the
top of the chassis, as shown in Figure 5.

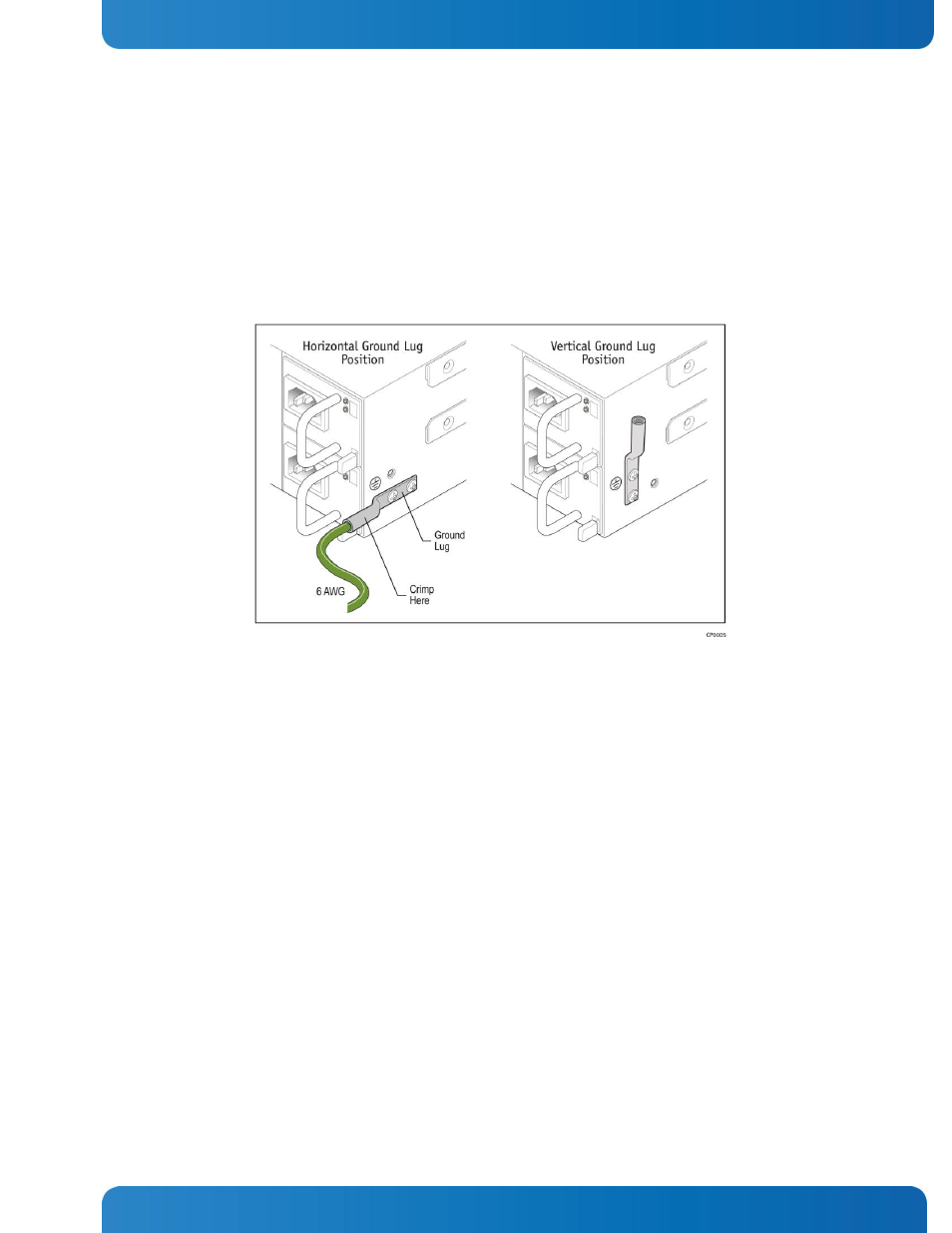

Figure 5: Grounding Lug Positions

2.3 Connecting I/O Cables

The MS2900 platform provides I/O connections from both the front and rear of the chassis. There are two
10GbE uplink ports, two 10GbE stacking uplink ports, and eight 1GbE RJ-45 LAN ports (four for each
switch/ShMC hub,

front access only

) in the system. For each hub there is also front panel access for an RJ-45

console port and a management RJ-45 port.
