11.3. DVI Connector (DVI-I)
The DVI-I connector support DVI Digital output and DVI analog output.

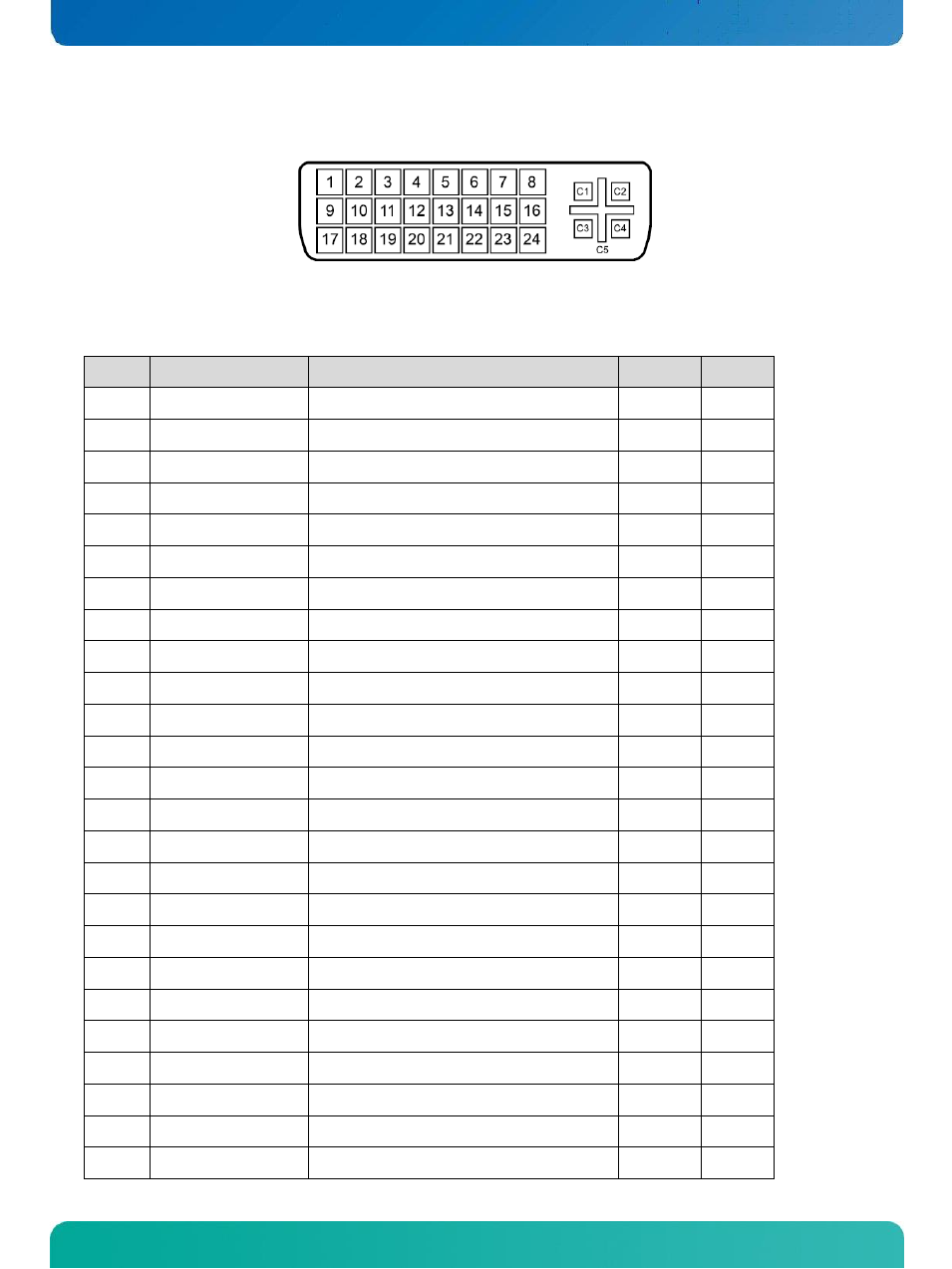

Figure 2. DVI-I Female socket, front view
Signal Description – DVI-I connector:
Pin No. Signal Description Type Pull U/D
1 TMDS Data 2- Digital Red – (Link 1) LVDS OUT
2 TMDS Data 2+ Digital Red + (Link 1) LVDS OUT
3 TMDS Data 2/4 Shield PWR
4 NC NC
5 NC NC
6 DDC Clock DDC Clock IO 2K2
7 DDC Data DDC Data IO 2K2
8 NC NC
9 TMDS Data 1- Digital Green – (Link 1) LVDS OUT
10 TMDS Data 1+ Digital Green + (Link 1) LVDS OUT
11 TMDS Data 1/3 Shield PWR
12 NC NC
13 NC NC
14 +5V Power for monitor when in standby PWR
15 GND PWR
16 Hot Plug Detect Hot Plug Detect I
17 TMDS Data 0- Digital Blue – (Link 1) / Digital sync LVDS OUT
18 TMDS Data 0+ Digital Blue + (Link 1) / Digital sync LVDS OUT
19 TMDS Data 0/5 Shield PWR
20 NC NC
21 NC NC
22 TMDS Clock Shield PWR
23 TMDS Clock+ Digital clock + (Link 1) LVDS OUT
24 TMDS Clock- Digital clock - (Link 1) LVDS OUT
C1 ANALOG RED Analog output carrying the red color signal O /75R
