11.5. DP Connectors (DP0/DP1)
The DP (Display Port) is based on standard DP type Foxconn 3VD51203-H7JJ-7H or Similar.

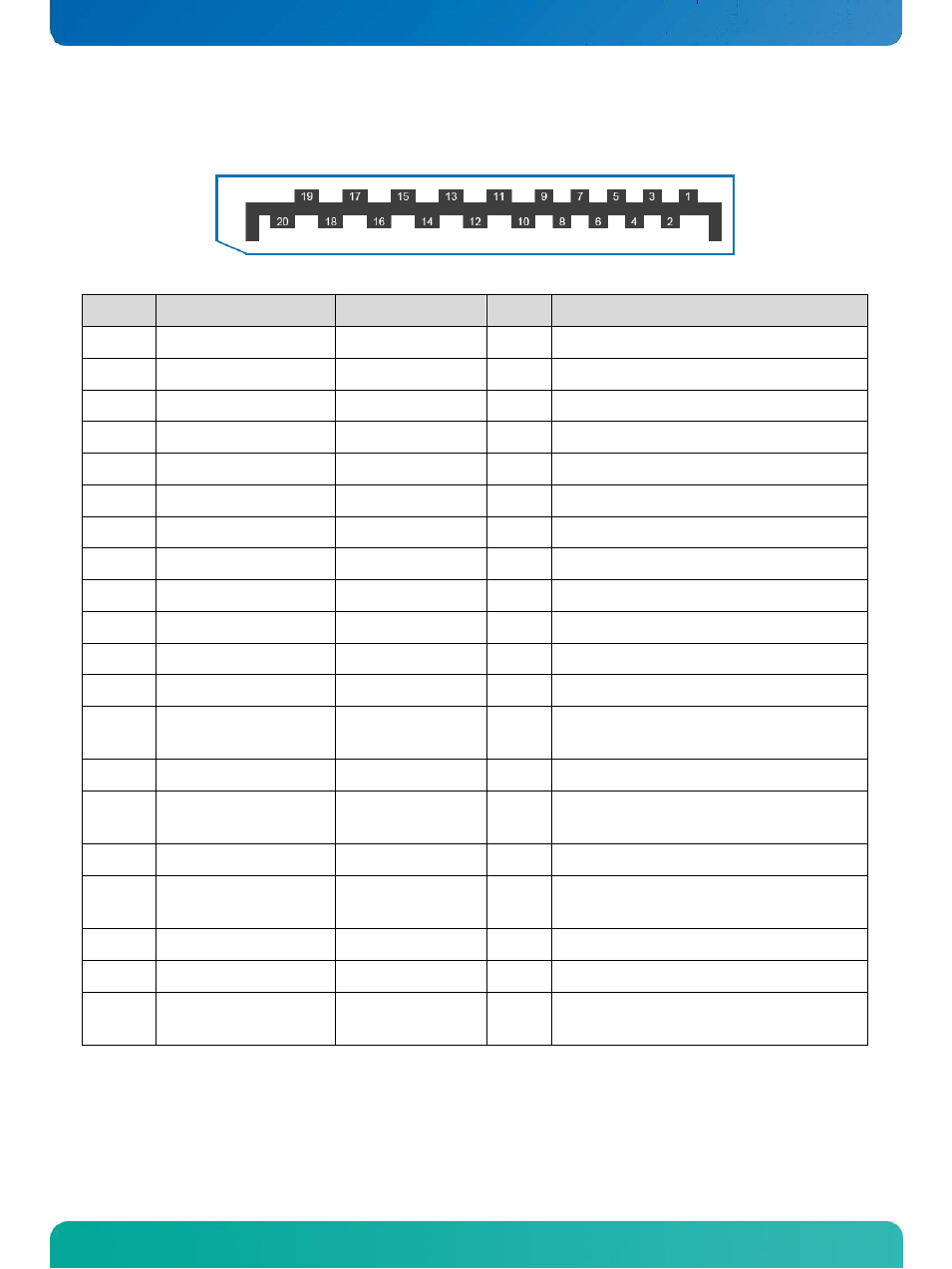

Figure 3. DP Connector, front view
Pin No.
Signal
Description
Type
Note
1
Lane 0 (p)
LVDS
2
GND
PWR
3
Lane 0 (n)
LVDS
4
Lane 1 (p)
LVDS
5
GND
PWR
6
Lane 1 (n)
LVDS
7
Lane 2 (p)
LVDS
8
GND
PWR
9
Lane 2 (n)
LVDS
10
Lane 3 (p)
LVDS
11
GND
PWR
12
Lane 3 (n)
LVDS
13
Config1
Aux or DDC
selection
I
14
Config2
(Not used)
O
15
Aux Ch (p)
Aux Channel (+) or
DDC Clk
AUX (+) channel used by DP
DDC Clk used by HDMI
16
GND
PWR
17
Aux Ch (n)
Aux Channel (-) or
DDC Data
AUX (-) channel used by DP
DDC Data used by HDMI
18
Hot Plug
I
Internally pull down (100Kohm).
19
Return
PWR
Same as GND
20
3.3V
PWR
Fused by 1.5A resetable PTC fuse, common
for DP0 and DP1
