7. Product Description KISS 2U V2 MB_SBC– User's Guide (Version 1.00)
7.6. System Configuration with Motherboard
Please observe that the KISS 2U V2 platform is designed to be operated in horizontal position only.
13
1
2
3
4
6
7
11
10
9
8
7
12
5

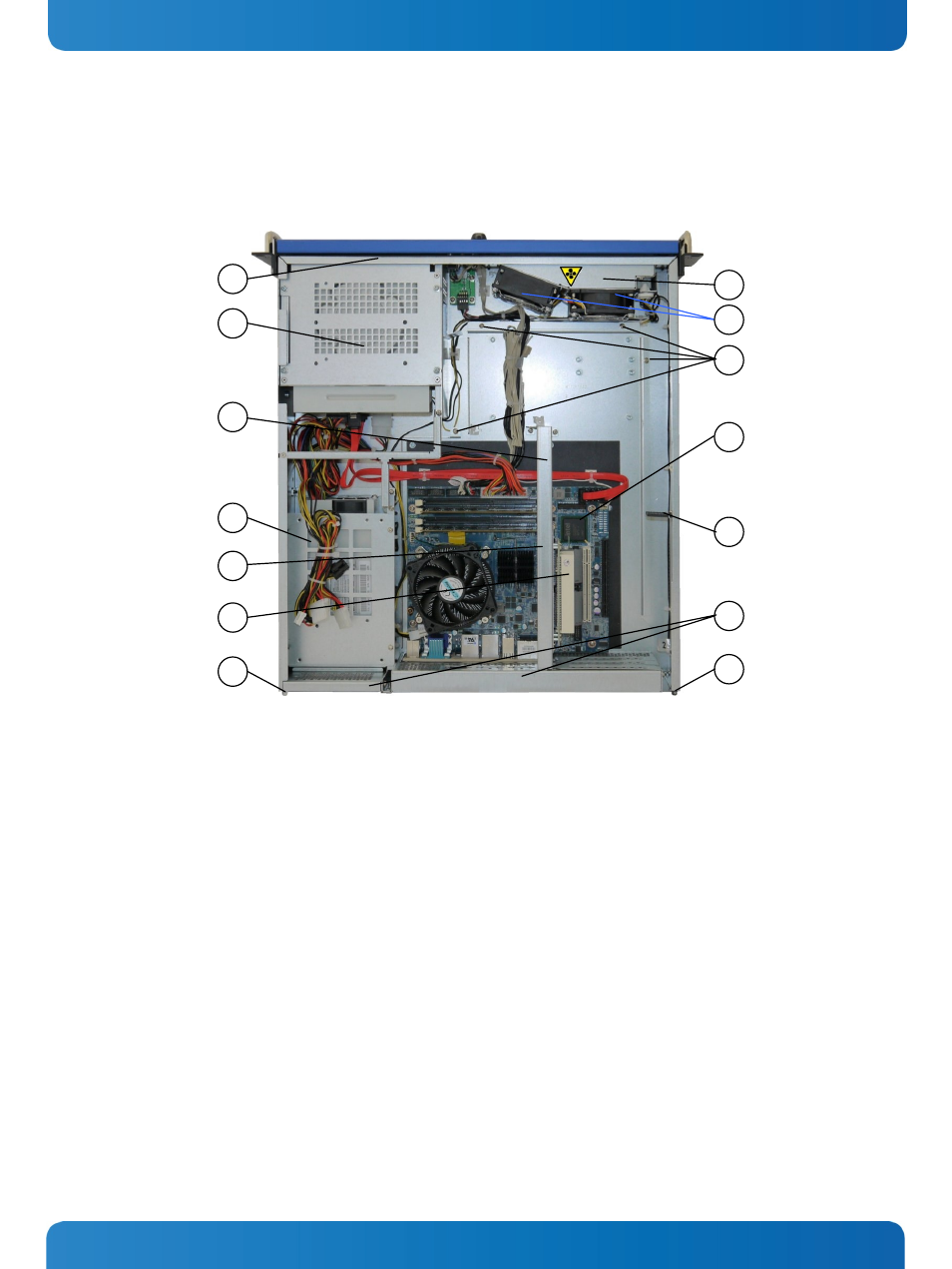

Fig. 22: Example of KISS 2U V2 - Configuration with motherboard
1 Cover retaining plate on the front side
2 L1 and L2: drives bays (stacked one above the
other into a drive cage)
3 Retaining bracket for the butterfly-backplane (not
provided at system configuration with low profile
cards)
4 Power Supply Unit (PSU)
5 Retaining bracket for the riser card (not provided
at system configuration with low profile cards)
6 Riser card for expansion cards
7 Centring latches for the cover at the rear side
8 Cover retaining plate on the rear side
9 Card hold down bracket (adjustable for long or
short expansion cards; see Fig. 20, pos. 3)
10 Motherboard
11 Cage for motherboard and expansion cards
12 Fans (of the fan slide-in-module)
13 Fan slide-in-module with two fans
