7. Product Description KISS 2U V2 MB_SBC– User's Guide (Version 1.00)
7.1. Front Side
The KISS 2U V2 platform is available as a rackmount version.
3 4
1
2
1
5 5

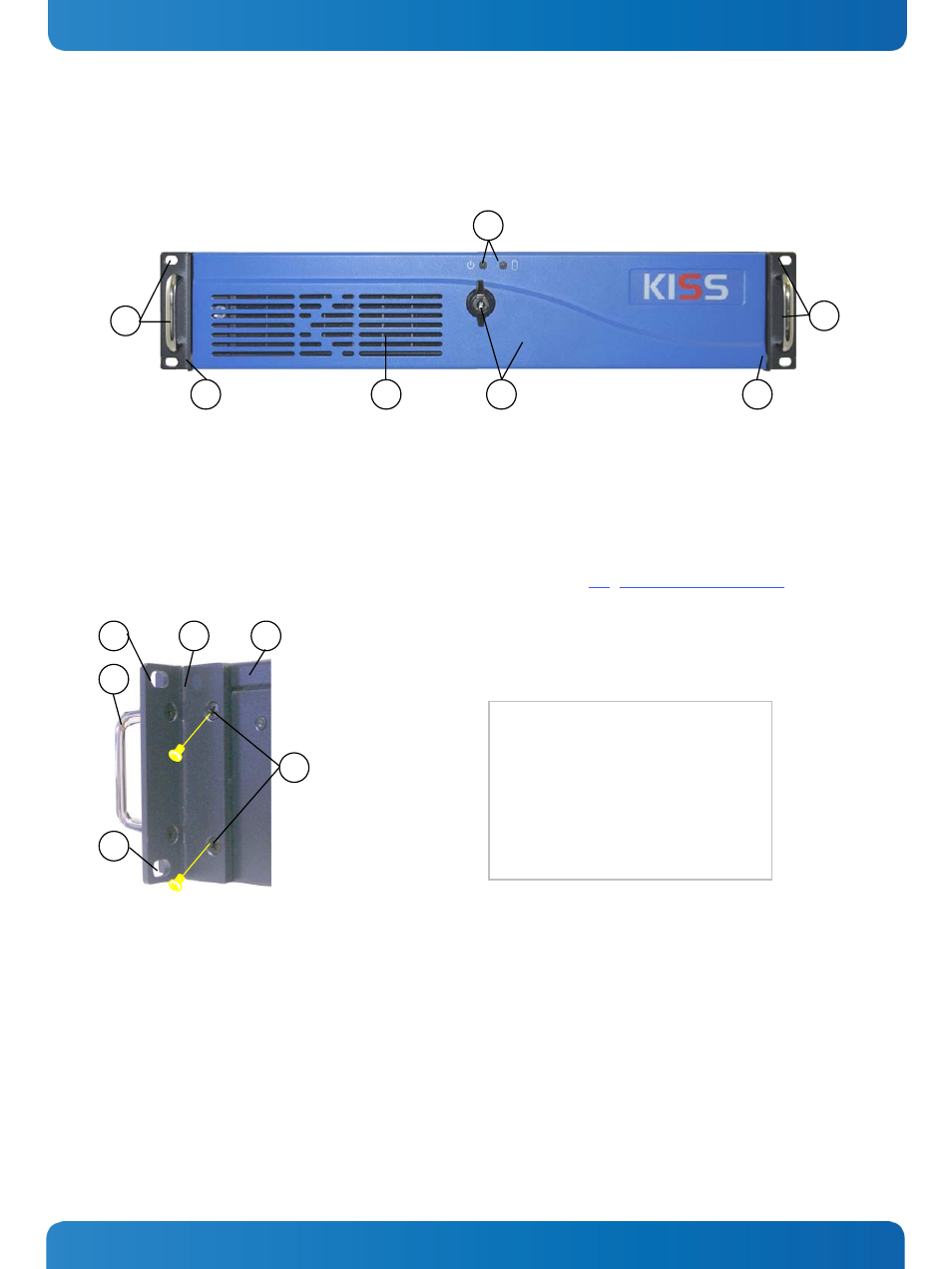

Fig. 7: Front (rackmount version) with the front access panel closed
1 19" bracket with handle
2 Light diffusors for HDD and power LEDs
3 Ventilation grille on the front access panel
4 Front access panel with a locking mechanism
5 Plastic washer
You can easily convert your system to a desktop version. Unscrew the left and right hand 19" brackets from the device. To
attach the rubber feet (included), please follow the instructions in the section 8.1 “Attaching the Rubber Feet”.
2 3
3
4
5
1
5 Screws for attaching the 19“ bracket
4 Handle
3 Holes for rack mounting
2 19" bracket with handle
1 KISS 2U V2 platform chassis
Fig. 8: 19” bracket with fixing screws
