7. Product Description KISS 2U V2_MB_SBC – User's Guide (Version 1.00)
The Power button, the USB ports and the integrated 5.25" drive are located on the front side (Fig. 9) of the KISS 2U V2
platform, behind the front access panel.

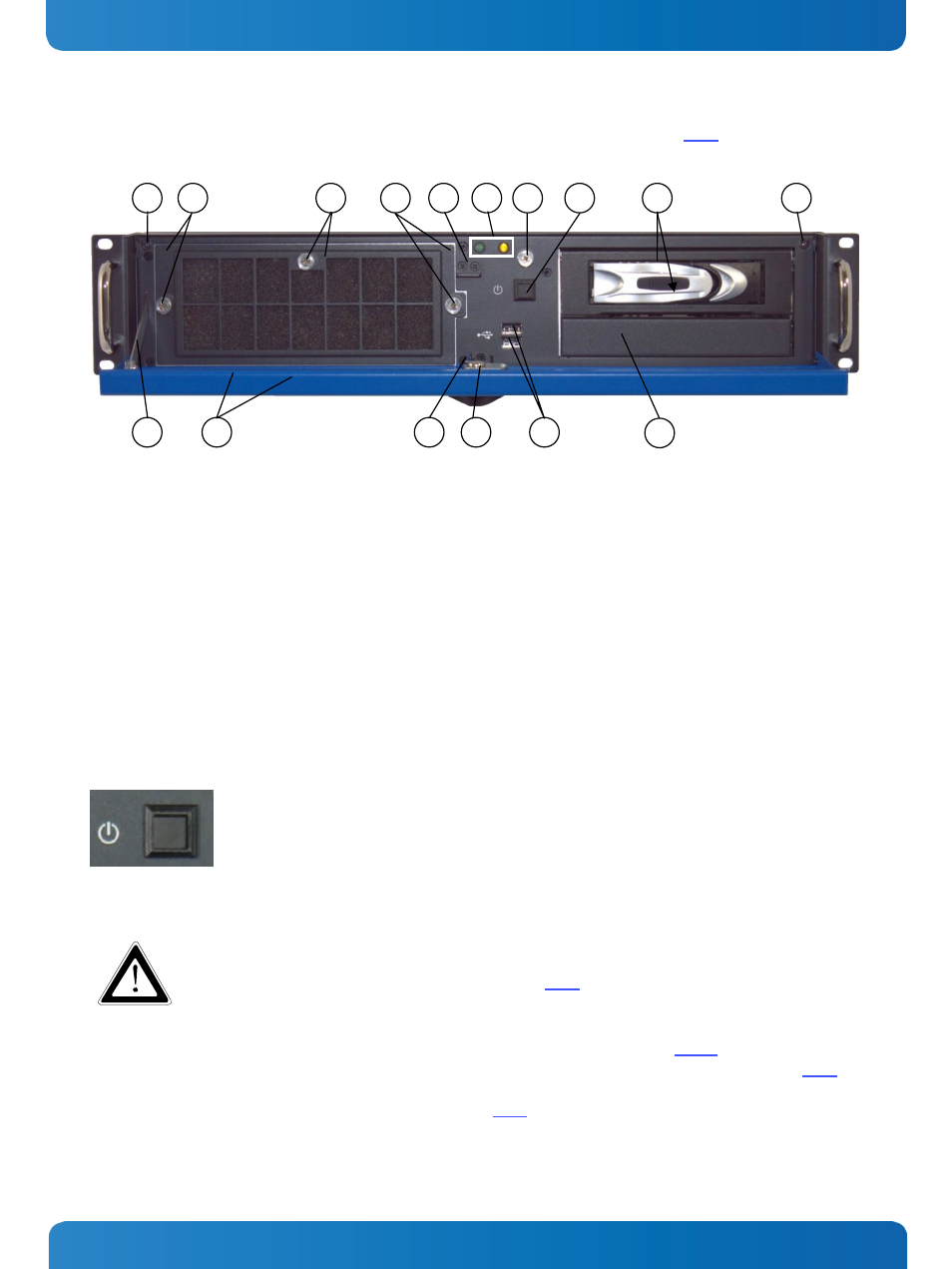

Fig. 9: Front (rackmount version) with the front access panel open
1 1 3 2 4 6 8
12 10 13
5
11 13
2 7
9
1 Bump stop for the front access panel
2 Fan slide-in module with knurled screws
3 Filter mat holder with fixing screw
4 Slot for the locking mechanism
5 Indicators (power and HDD LED)
6 Cover fastening screw on the front side
7 Power button
8 L1: 1x 5.25" externally accessible drive bay
(shown with 1x 3.5" removable HDD)
9 L2: 1x internal 3.5" drive bay or 1x external
accessible slim drive
10 2x USB (2.0) ports
11 Locking mechanism
12 Front access panel with ventilation grille
13 Holders for the front access panel
7.1.1. Power Button
The power button (refer to Fig. 10, and Fig. 9, pos. 7) is located at the
front side of the platform, behind the front access panel and allows to
power ON/OFF the system. Please observe the settings option for
“Restore on AC Power Loss” in the BIOS Setup.
Setting options: Power On/Power Off/Last State.
Fig. 10: Power button on the front
Warning!
Turning the power off using the power button (refer to Fig. 9, pos. 7) does not disconnect the
KISS 2U V2 platform from the AC power source.
For system configuration with:
AC wide range PSU: Please observe that the ON/OFF switch of this PSU (see Fig. 20) does not disconnect
the KISS 2U V2 from the AC power source. Even you turn off the system using the power button (Fig. 9,
pos. 7), and the ON/OFF switch of this PSU, there is still a standby-voltage of 5 VSb on the motherboard
or SBC (refer also to the hint in the subsection 7.2.4).
