18 Mechanical and Environmental Parameters
18.1 Mechanical Outline

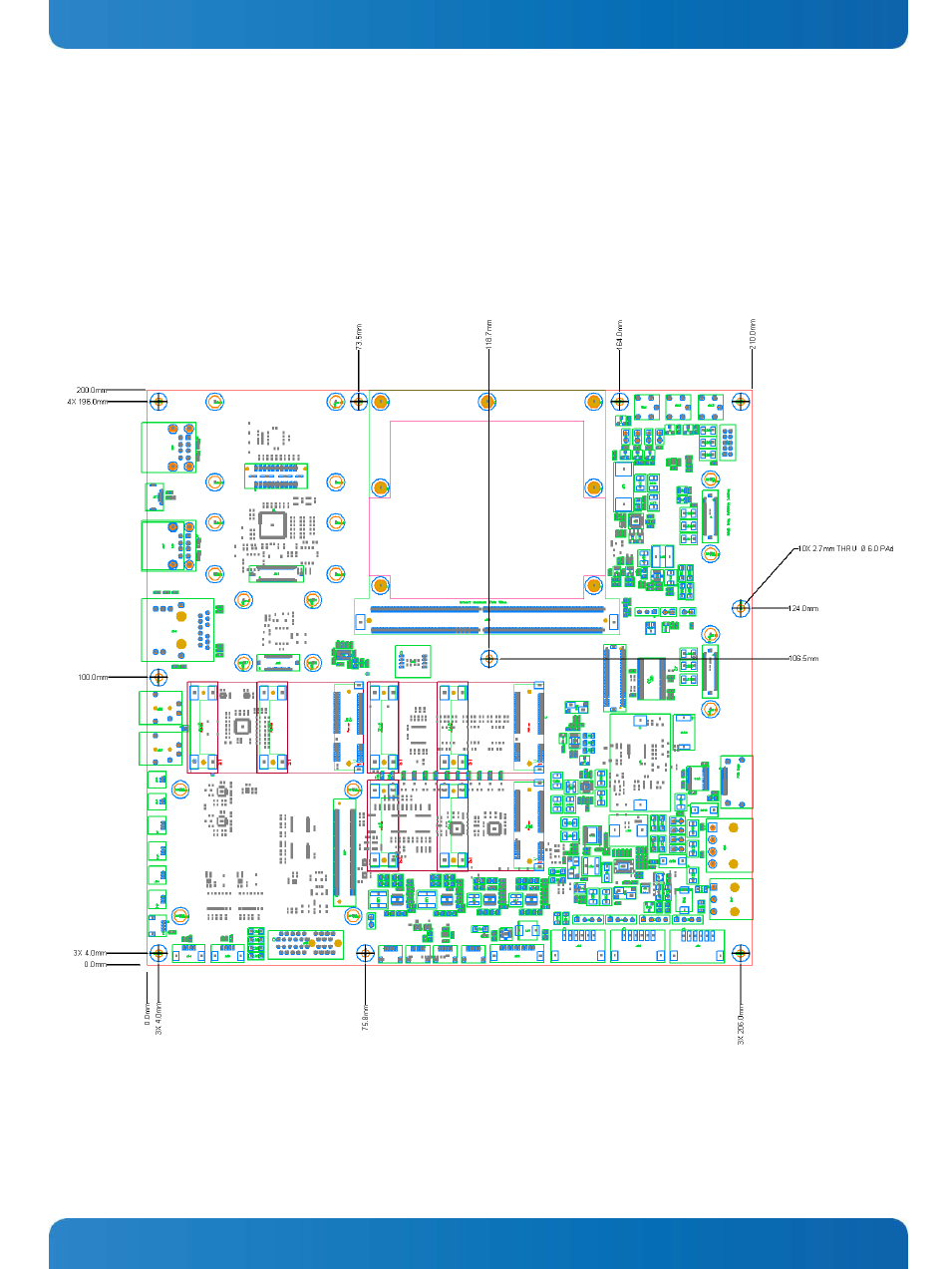

Holes that may be used to mount the SMARC Evaluation Carrier to a chassis are dimensioned in the figure below. The
holes are 2.7mm diameter clearance holes for use with metric M2.5 hardware.
Figure 18. Mechanical Outline
