KTHM65 Users Guide
KTD-N0838-A Page 42
5.6.3 USB Connector 10/11 (USB10/11) (J11)
USB Ports 10 and 11 are supplied on the internal USB10/11 pinrow connector J11.
Note Type Signal
PIN
Signal Type Note
1 PWR 5V/SB5V
1 2
5V/SB5V PWR 1
IO
USB10-
3 4
USB11-
IO
IO USB10+
5 6
USB11+ IO
PWR
GND
7 8
GND
PWR
NC
KEY
9 10
NC
NC
Signal
Description
USB10+ USB10-
USB11+ USB11-
Differential pair works as Data/Address/Command Bus.
5V/SB5V
5V supply for external devices. SB5V is supplied during powerdown to allow
wakeup on USB device activity. Protected by resettable 1A fuse covering both USB
ports.
5.6.4 USB Connector 12/13 (USB12/13) (J12)
USB Ports 12 and 13 are supplied on the internal USB12/13 pinrow connector J12.
Note Type Signal
PIN
Signal Type Note
1 PWR 5V/SB5V
1 2
5V/SB5V PWR 1
IO
USB12-
3 4
USB13-
IO
IO USB12+
5 6
USB13+ IO
PWR
GND
7 8
GND
PWR
NC
KEY
9 10
NC
NC
Signal
Description
USB12+ USB12-
USB13+ USB13-
Differential pair works as Data/Address/Command Bus.
5V/SB5V
5V supply for external devices. SB5V is supplied during powerdown to allow
wakeup on USB device activity. Protected by resettable 1A fuse covering both USB
ports.
Note 1: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V.

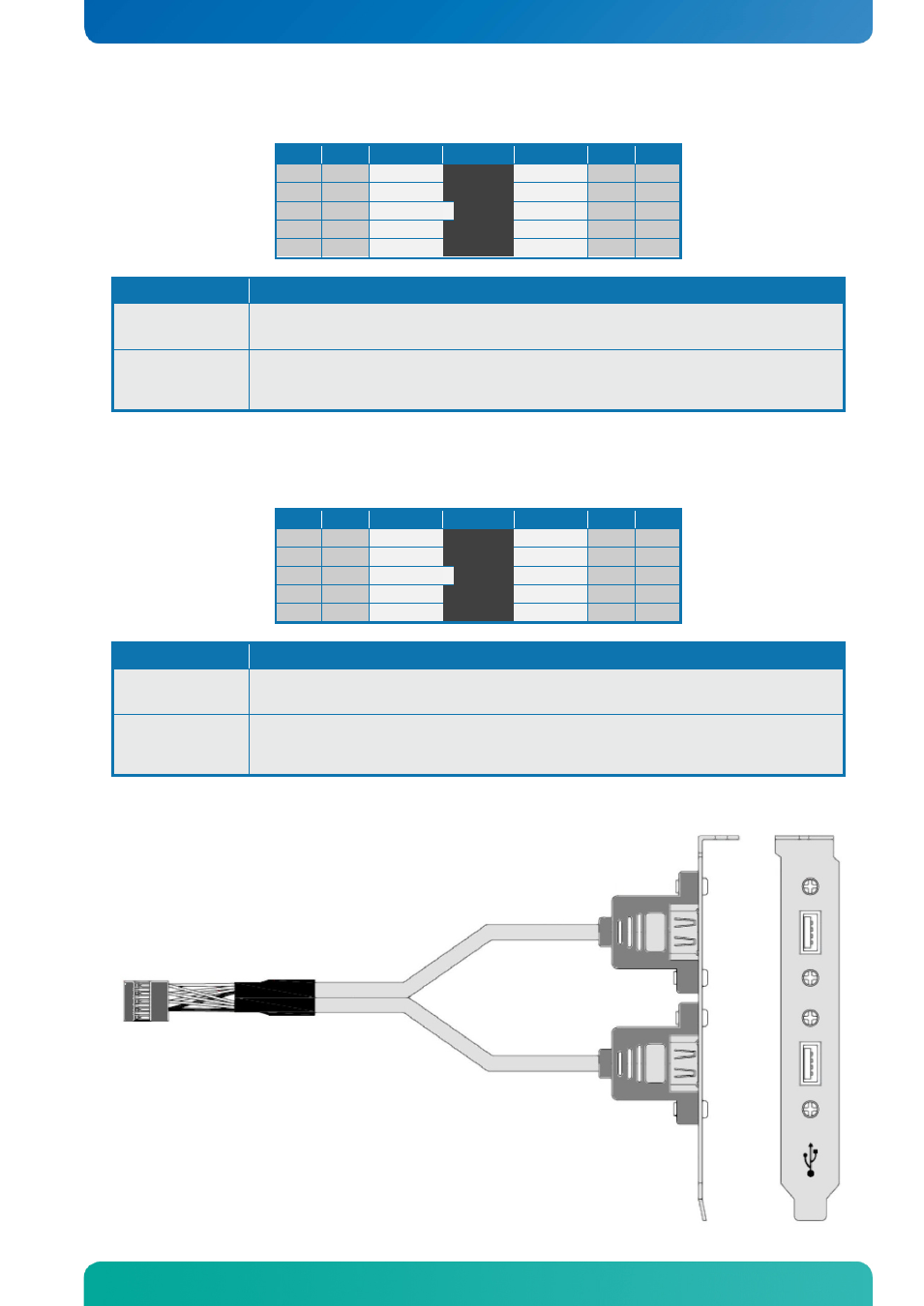

Available cable kit:
PN 821401 Bracket Dual USB Cable
Internal Connectors
