Connector Locations

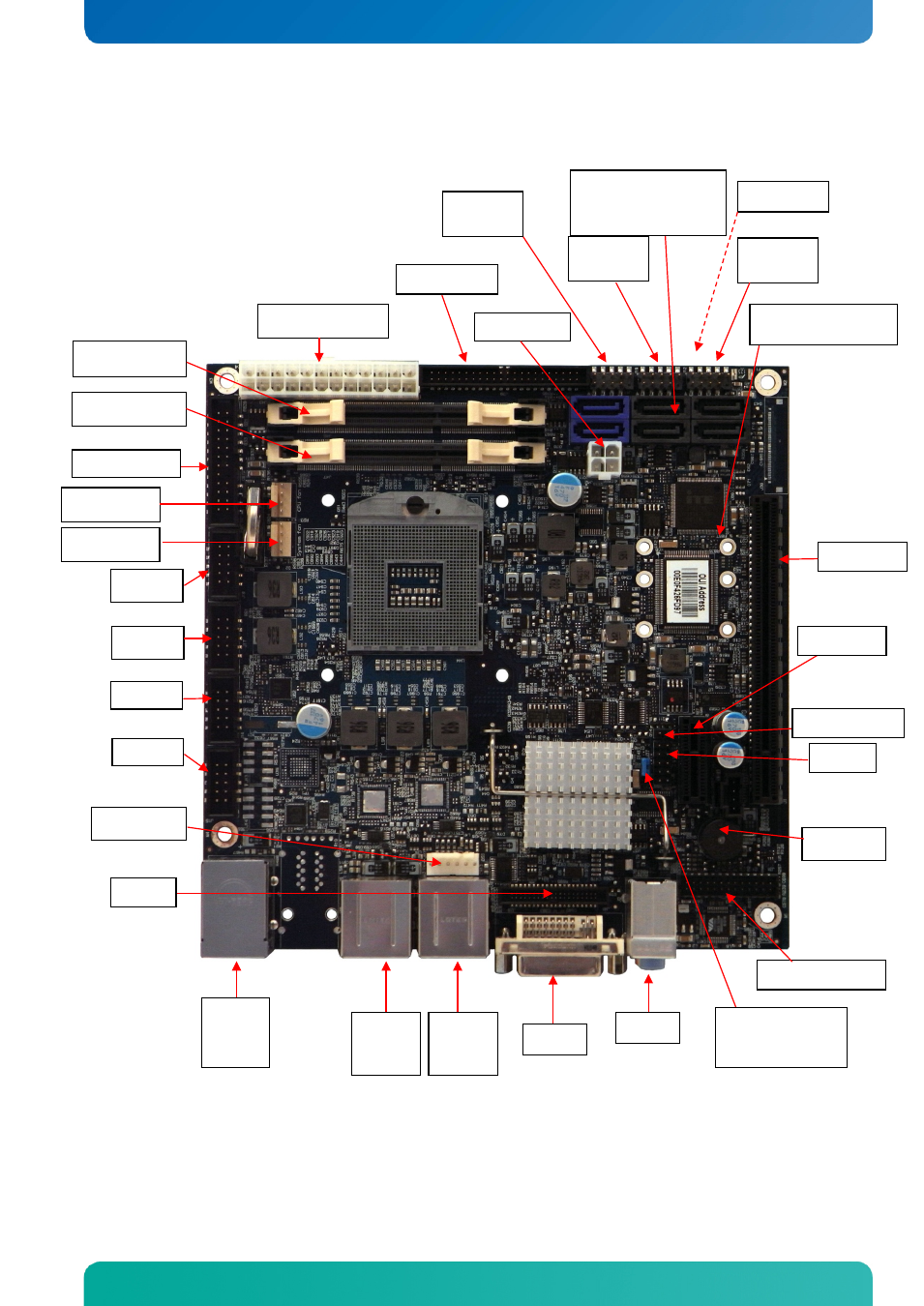

2.7 KTHM65/mITX – frontside
DDR3 Slot 1
FEATURE
DVI-I
KBDMSE
PCIe x16
ATX/ BTXPWR
Audio
DDR3 Slot 0
USB13
USB12
FRONTPNL
LVDS
CDROM
AUDIO_HEAD
COM3
COM4
ATX+12V
FAN_SYS
FAN_CPU
ETH1
USB5
USB4
COM2
Load Default
BIOS Settings
mPCIe (* )
Sata1 Sata4 Sata2
Sata0 Sata5 Sata3
(see note below)
USB9
USB8
USB11
USB10
COM1
PCIe x1
SPI recover
SPI
USB1
USB0
DP0
USB3
USB2
DP1
Note: Sata0/Sata1support up to 6GB/s and Sata2/Sata3/Sata4/Sata5 support up to 3GB/S.
System Temperature
Sensor( Q10)
Connector Location
