4.5.2 DVI Connector (DVI-D), Digital output
The
DVI-D connector only support DVI Digital output.

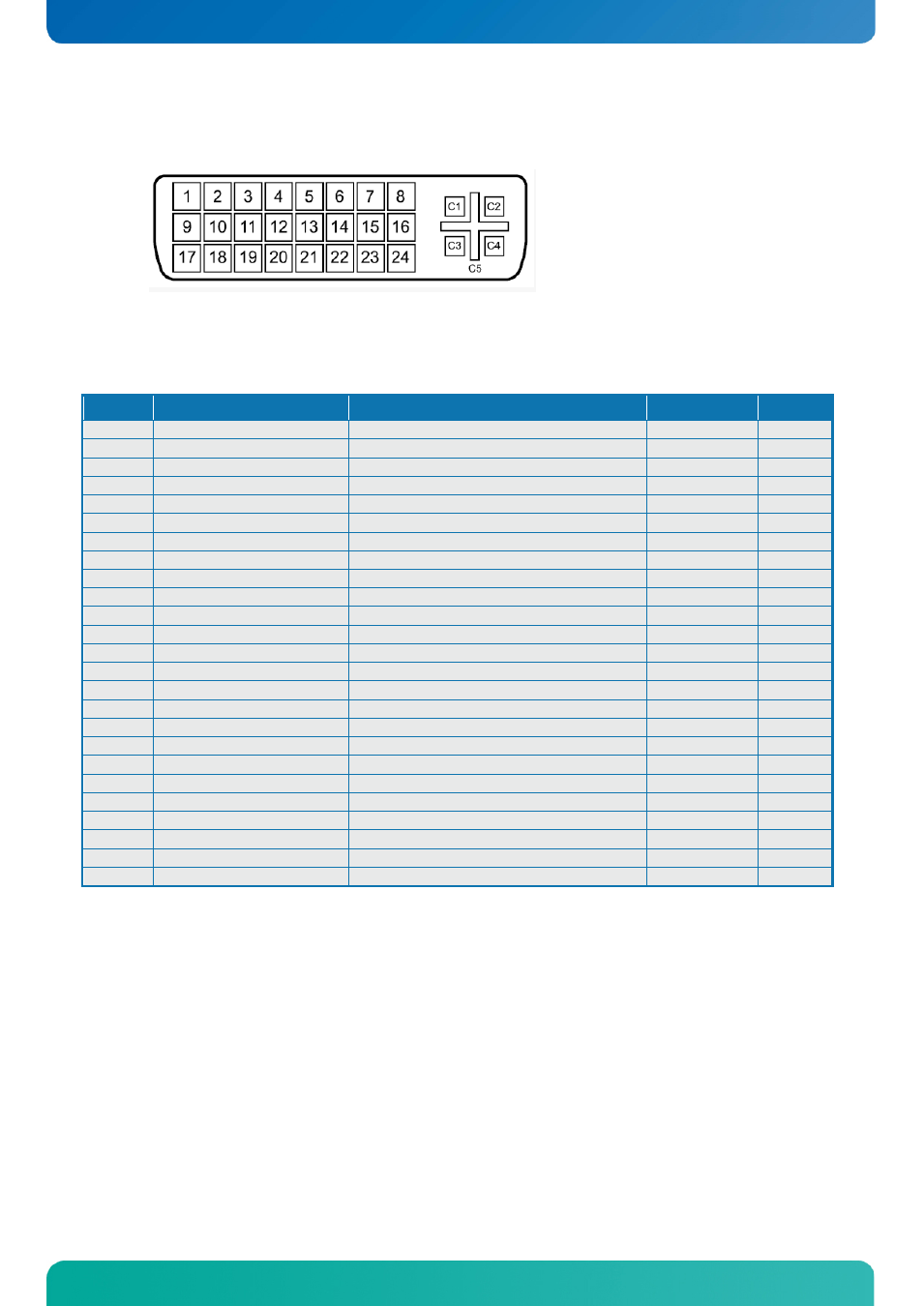

Female socket, front view
Signal Description - DVI Connector:
Pin
Signal
Description
Type
Pull Up
1
TMDS Data 2-
Digital Red – (Link 1)
LVDS OUT
2
TMDS Data 2+
Digital Red + (Link 1)
LVDS OUT
3
TMDS Data 2/4 Shield
PWR
4
N.C.
-
5
N.C.
-
6
DDC Clock
DDC Clock
IO
2K2
7
DDC Data
DDC Data
IO
2K2
8
N.C.
-
9
TMDS Data 1-
Digital Green – (Link 1)
LVDS OUT
10
TMDS Data 1+
Digital Green + (Link 1)
LVDS OUT
11
TMDS Data 1/3 Shield
PWR
12
N.C.
-
13
N.C.
-
14
+5V
Power for monitor when in standby
PWR
1
15
GND
PWR
16
Hot Plug Detect
Hot Plug Detect
I
17
TMDS Data 0-
Digital Blue – (Link 1) / Digital sync
LVDS OUT
18
TMDS Data 0+
Digital Blue + (Link 1) / Digital sync
LVDS OUT
19
TMDS Data 0/5 Shield
PWR
20
N.C.
-
21
N.C.
-
22
TMDS Clock Shield
PWR
23
TMDS Clock+
Digital clock + (Link 1)
LVDS OUT
24
TMDS Clock-
Digital clock - (Link 1)
LVDS OUT
C1 - C5
N.C.
-
2
Note 1: The 5V supply in the CRT connector is fused by a 1.1A resettable fuse
Note 2: DVI analogue signals are not supported
