KTD-00774-G

KTUS15/mITX

Page 25 of 84

4.4

Keyboard and Mouse connectors

Attachment of a keyboard or PS/2 mouse adapter can be done through the MINI-DIN (KBD) connector or via

the pinrow (KBDMSE) connector. All interfaces utilize open-drain signaling with on-board pull-up.

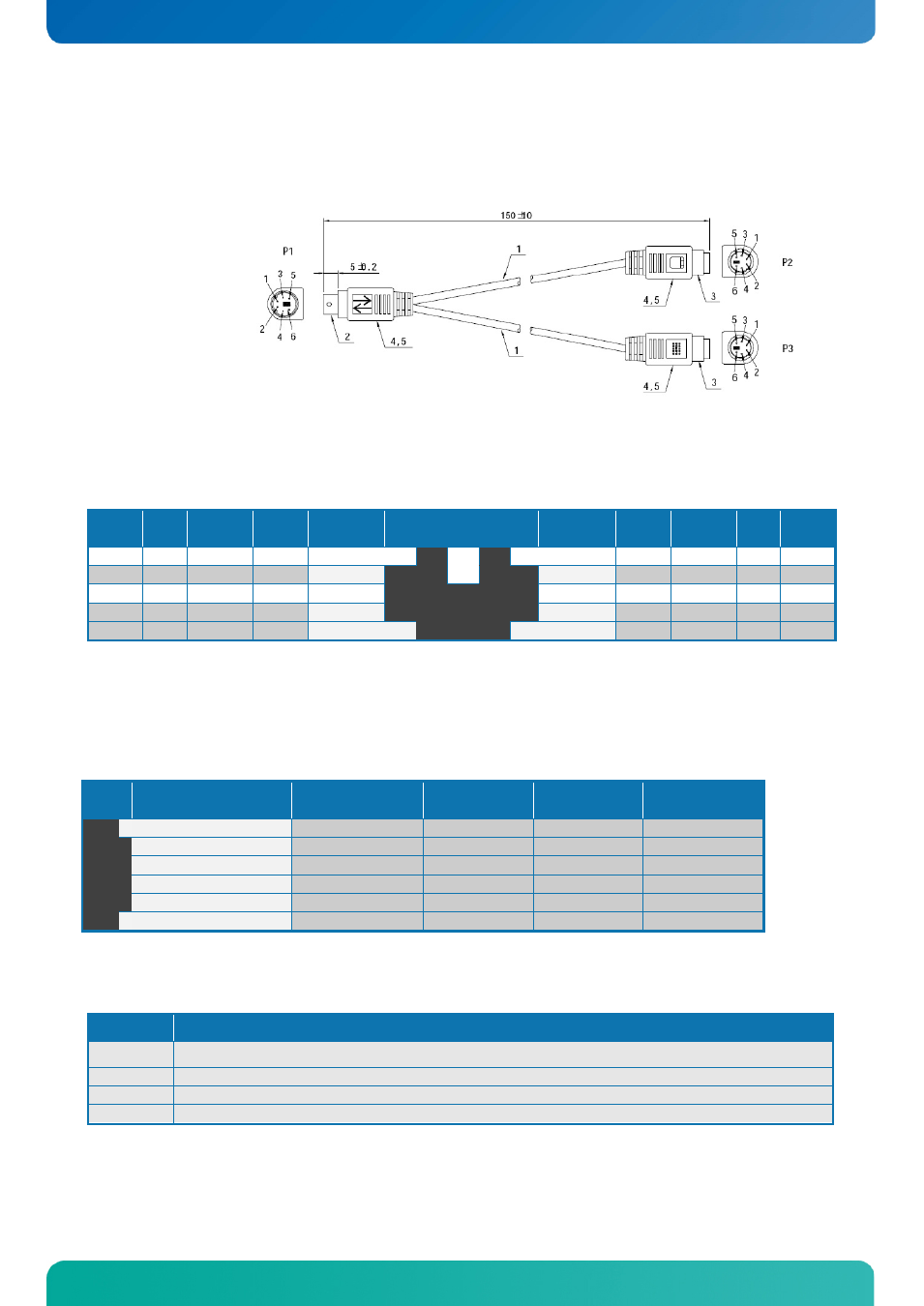

Note: PN 821091 Keyboard/Mouse cable splitter cable kit is available for connecting Keyboard and Mouse

via KBD connector.

The mouse and keyboard is supplied from SB5V when in standby mode in order to via keyboard or mouse to

make the system wake up from power saving states. The supply is provided through a 1.1A reset-able fuse.

4.4.1 MINI-DIN Keyboard and Mouse Connector (KBD)

Note Pull

U/D Ioh/Iol Type Signal

PIN#

Signal Type Ioh/Iol Pull

U/D Note

1

2K7

TBD

IOC

MSCLK

6

5

KBDCLK IOC

TBD

2K7

-

-

PWR 5V/SB5V

4

3

GND

PWR

-

-

1

2K7

TBD

IOC

MSDAT

2

1

KBDDAT IOC

TBD

2K7


Note 1: To use the PS/2 mouse in the KBD connector an adapter cable is required.
Signal Description – Keyboard & and mouse Connector (MSE & KBD), see below.

4.4.2 Keyboard and Mouse pinrow Connector (KBDMSE)

PIN#

Signal

Type

Ioh/Iol

Pull

U/D

Note

1

KBDCLK

IOC

TBD

2K7

2

KBDDAT

IOC

TBD

2K7

3

MSCLK

IOC

TBD

2K7

4

MSDAT

IOC

TBD

2K7

5

5V/SB5V

PWR

-

-

6

GND

PWR

-

-

Signal Description – Keyboard & and mouse Connector (KBDMSE).

Signal

Description

MSCLK Bi-directional clock signal used to strobe data/commands from/to the PS/2 mouse.

MSDAT Bi-directional serial data line used to transfer data from or commands to the PS/2 mouse.

KDBCLK Bi-directional clock signal used to strobe data/commands from/to the PC-AT keyboard.

KBDDAT Bi-directional serial data line used to transfer data from or commands to the PC-AT keyboard.
