Assembly and Installation

|

39

The probe rejection of any external pickup from conductors not passing through
the window is better than 60 dB. The presence of very strong magnetic fields will
likely have an effect on probe sensitivity. Do not place the unit close to
permanent magnets or the magnetic field structures of motors or generators.

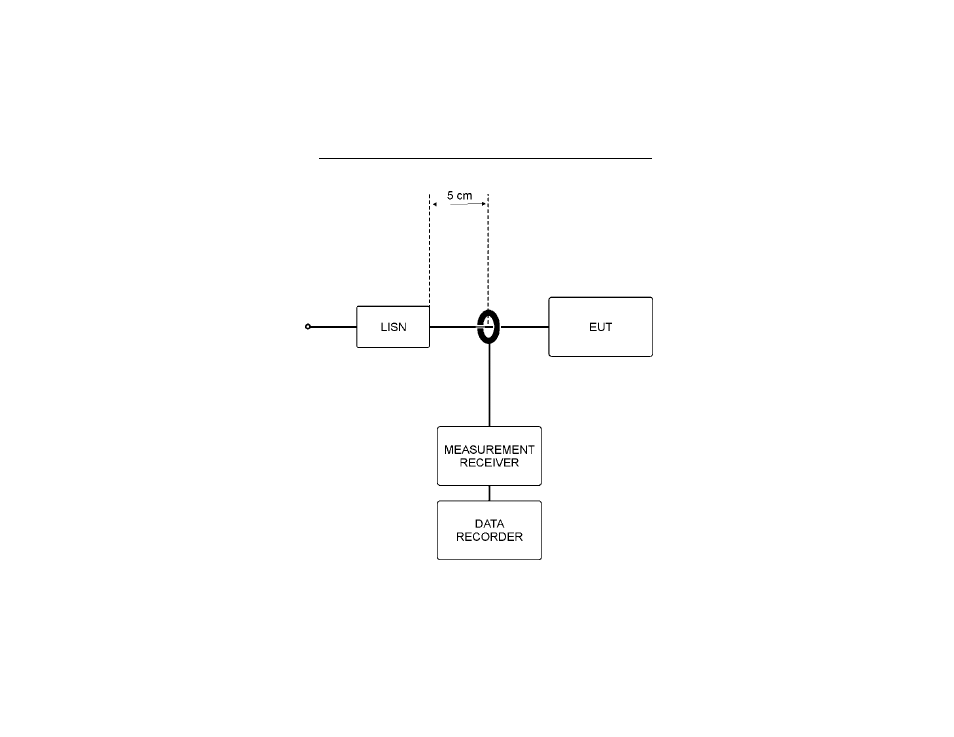

Sample Test Configuration
