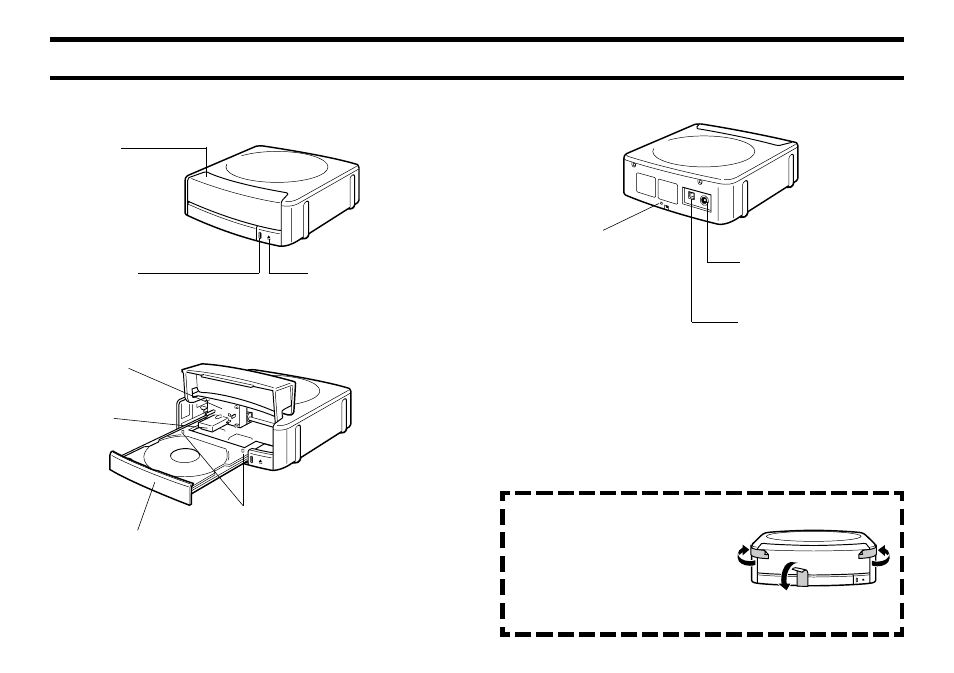

General Guide
Front Back
Front cover
Open this cover to
load or remove the
ink ribbon cassette.
Indicator lamp
• Lights when the printer is connected
correctly to a PC.
• Flashes when printing is in progress.
Print head
Disc tray
Eject button
Press to open the disc
tray.
Carriage
Disc positioning guides
These guides help to position the disc
correctly when you place it onto the
tray.
AC adaptor terminal
Connect the bundled AC
adaptor here.
If the disc tray will not open due
to printer malfunction, you can
open it manually by inserting a
thin, pointed object (at least 20
mm long, and less than 1.5 mm
thick) into this hole.
Use this hole to manually open
the disc tray only when abso-
lutely necessary. Do not use it
normally to open the tray.
* Do not use an object with an
easily breakable tip. Doing so
c r e a t e s t h e r i s k o f
malfunction.
USB port
Connect the bundled USB ca-
ble here when connecting to
your PC.
Do this first!
The front parts of the printer are se-
cured with tape to protect them dur-
ing shipment. Make sure you remove
the tape before using the printer for
the first time.
