22

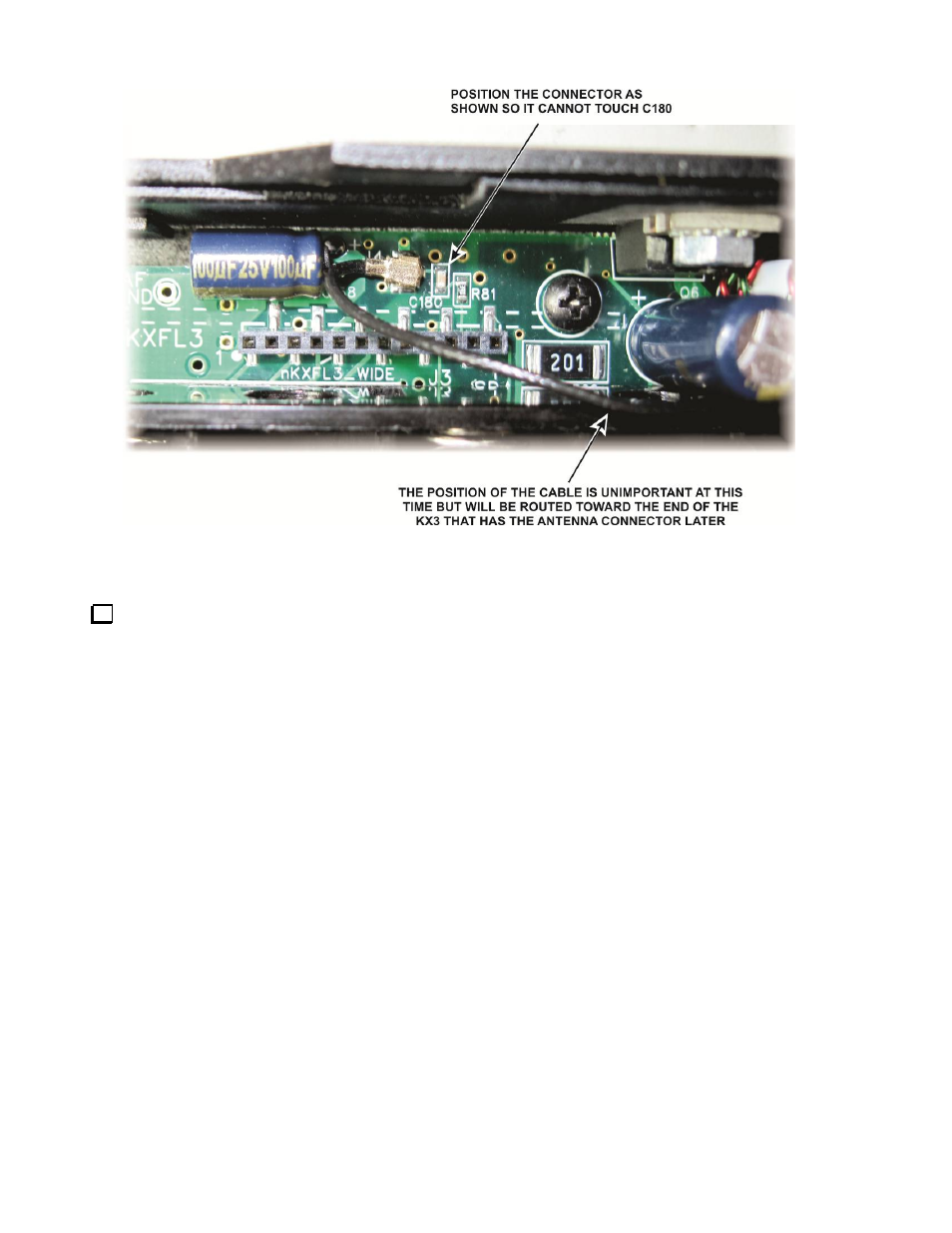

Figure 14. Orienting the Cable at J4..

If you removed the KXFL3 filter board (see Figure 12 on page 20), replace it now. Replace the

retaining screw and ensure it passes into the hole in the KXFL3 board.
