Elecraft KX3-4M - Manual (Page 17)

17
Installing the Antenna Coaxial Cable
Remove the KXAT3 Antenna Tuner board as follows. If your KX3 is not equipped with the KXAT3, skip
the following steps and go directly to installing the antenna cable on page 18.
On the KXAT3 module, unplug the connector for the cable leading to the BNC connector as shown in
Figure 6. You can use long-nose pliers to grip the connector as shown in Figure 7.
If using the pliers, take care not to damage the pc board or components.
Remove the two screws and lock washers shown in Figure 6.
Lift the KXAT3 board out, unplugging it from the two connectors shown in Figure 6. Set the KXAT3
board aside in an ESD-safe place.

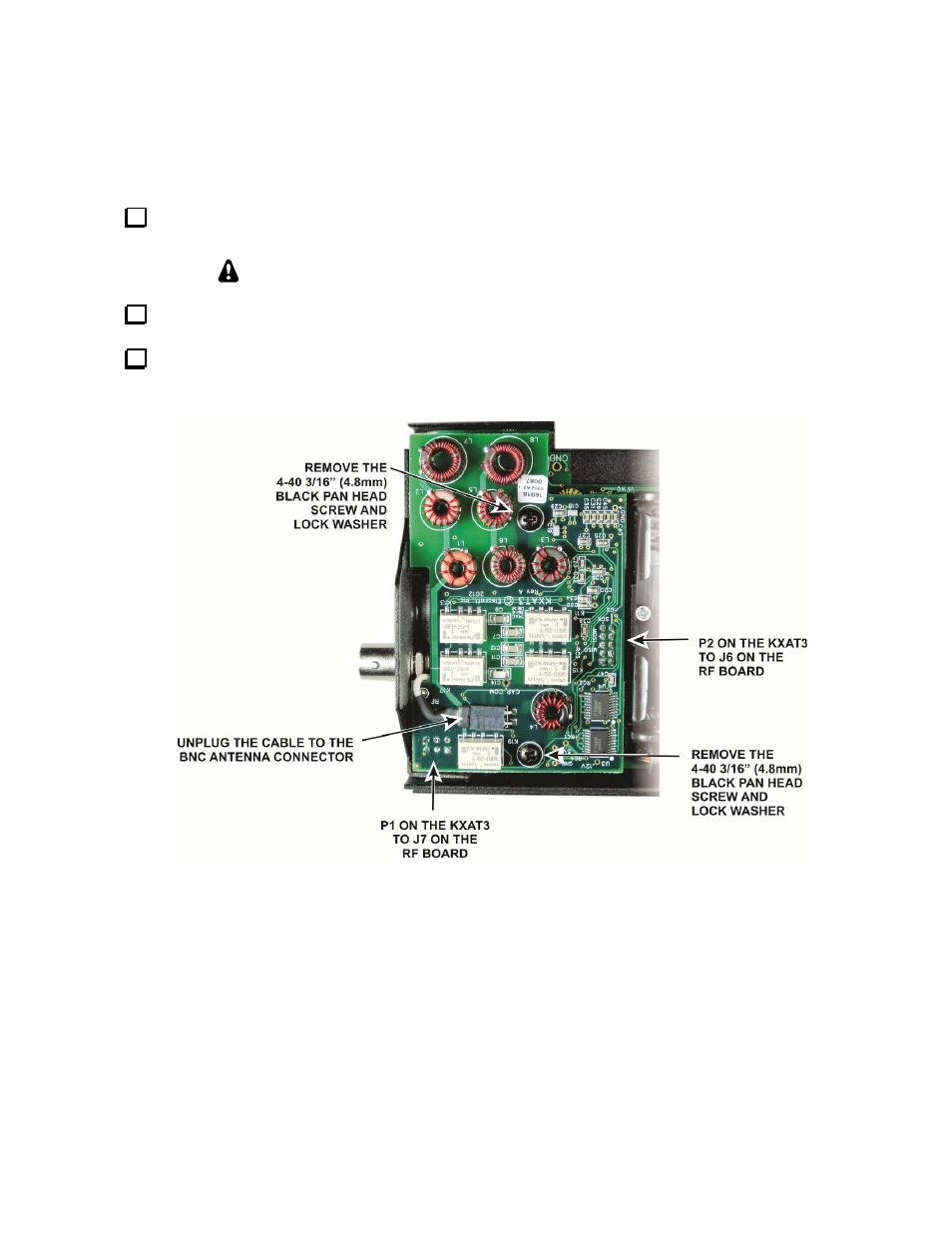

Figure 6. Removing the KXAT3 ATU.
