M O D E L 2 0 0 I P X / 2 5 0 I P X U P G R A D E
Pit Cover Installation
Version 1 Model 200iPX/250iPX Upgrade Installation Guide
1-23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIT COVER INSTALLATION
Use the following instructions to install the pit covers.
You will need the following parts:
• 21200025 Drum Guard Mounting Bracket
• 21200038 Drum Safety Cover
• 21229106 Drum Guard (2)
• 36561045 Screw, 1/4-20 x 5/8", Pan-Head, Torx (12)
• 36580434 Bolt, 3/8-16 x 1/2", Button-Head, Flange, Allen (6)
• 61100005 Middle Pit Cover
• 61100006 Right Pit Cover
• DM150-020-005 Nut, crush, 1/4-20 (4)
1 Loosely install the drum guard mounting bracket to the underside of the middle
pit cover using four 1/4-20 x 5/8-inch pan-head torx screws.

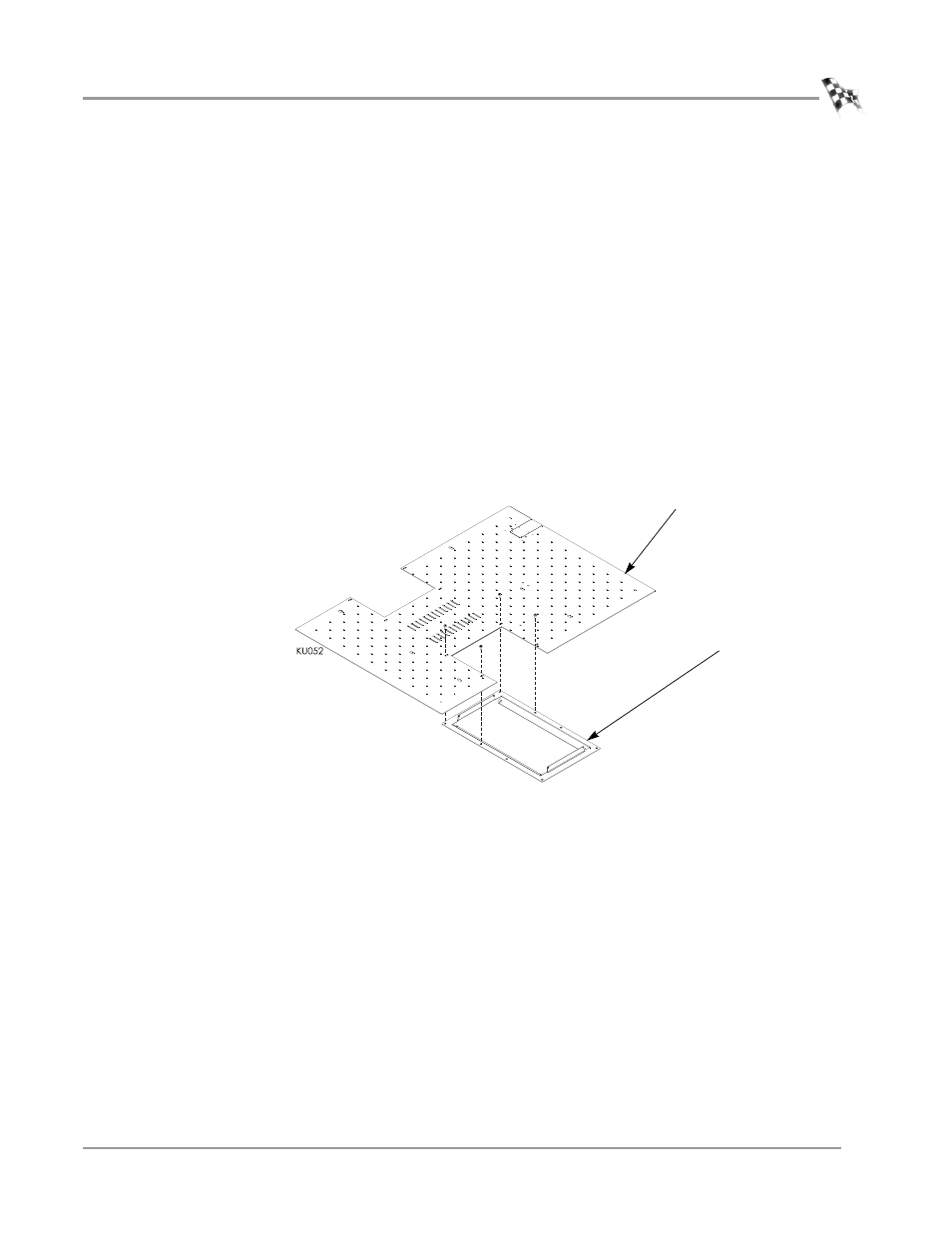

Figure 1-18: Install the Drum Guard Mounting Bracket
drum guard mounting
bracket
pit cover
