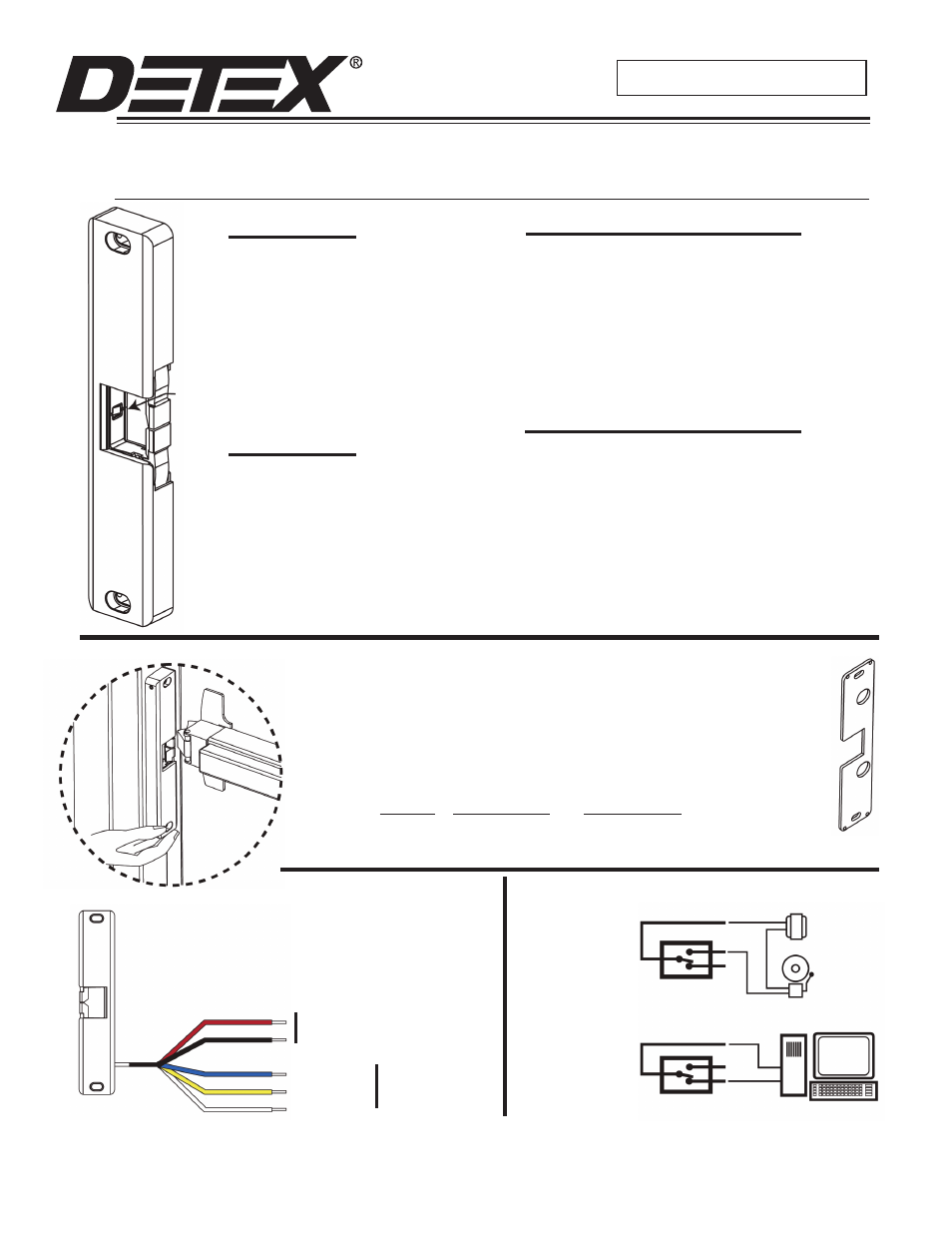

INSTRUCTIONS AND SPECIFICATIONS FOR DS-1581-LBM ELECTRIC STRIKE

104812 February 8, 2010

APPLICATION:

Remote central station notification
Local alarm monitoring
Triggering video surveillance and

recording systems
Active relay for trap door systems
For indoor applications ONLY.

INFRARED

SENSOR

SENSOR WIRE

COLOR CODE

POWER LEADS:

RELAY LEADS:

PREINSTALLATION CONSIDERATION:

LB SENSOR WIRE TERMINAL

COLOR CODING ASSIGNMENTS

TECHNICAL SPECIFICATIONS:

FEATURES:

RELAY

RELAY

WIRING SCHEMATICS FOR TYPICAL APPLICATIONS

Red - Positive

Black - Negative

Blue - Common

Yellow - Normally Open (NO)

White - Normally Closed (NC)



SHARP

Infrared optical sensor

Normally Open and Normally Closed

contact terminals
Single pole, double throw, Form “C”

relay, rated at 1 Amp at 24 VAC or

24 VDC.
Sensor Power - 12 through 30 VDC (ONLY)

Non-Mechanical operation

Sensor is concealed within the unit
Sensor does not require any adjustment
Ignores ambient light, detecting radiant

Infrared reflections off the pullman latch
Increase life and decrease in maintenance

due to electronic versus mechanical

operation

®

When Mounting, the pullman latch must be positioned as close

as possible to the vertical center of the latch cavity. Having the latch on

center will ensure that the sensor will have enough surface to detect.
You can use the 1/8” spacer (included) to move the DS-1581-LBM close

to the panic bar.

QUIESCENT

TRIGGER

VOLTAGE CURRENT DRAW CURRENT DRAW
12 VDC

13mA

23mA

24 VDC

20mA

35mA

30VDC

22MA

39mA

NOTE:

Please observe proper polarity for the LB sensor. The RED wire
terminal must be attached to the POSITIVE side and the BLACK wire
terminal must be attached to the NEGATIVE side.

RED +
BLACK -

BLUE COMMON (

COM)

YELLOW - NORMALLY OPEN (

NO)

WHITE - NORMALLY CLOSED (

NC)

TO TRANSFORMER

12V THROUGH 30V DC

RELAY TERMINALS

TO USER DEVICE OR

SENSORS.

For an alarm system a

Buzzer or Bell can be

wired to the NO terminal

such that when the door

is open the Buzzer or Bell

will sound.

For a security system

setup one side of the

circuit can be connected

to the common and the

other side to the NC

terminal so that when the

door is open, the system

senses the relay switch

as open

COMMON

NO

NC

TRANSFORMER
POWER

BUZZER OR
BELL

COMMON

NO

NC

SECURITY SENSOR

1/8” Spacer
