DETEX INS143 PAGE 4

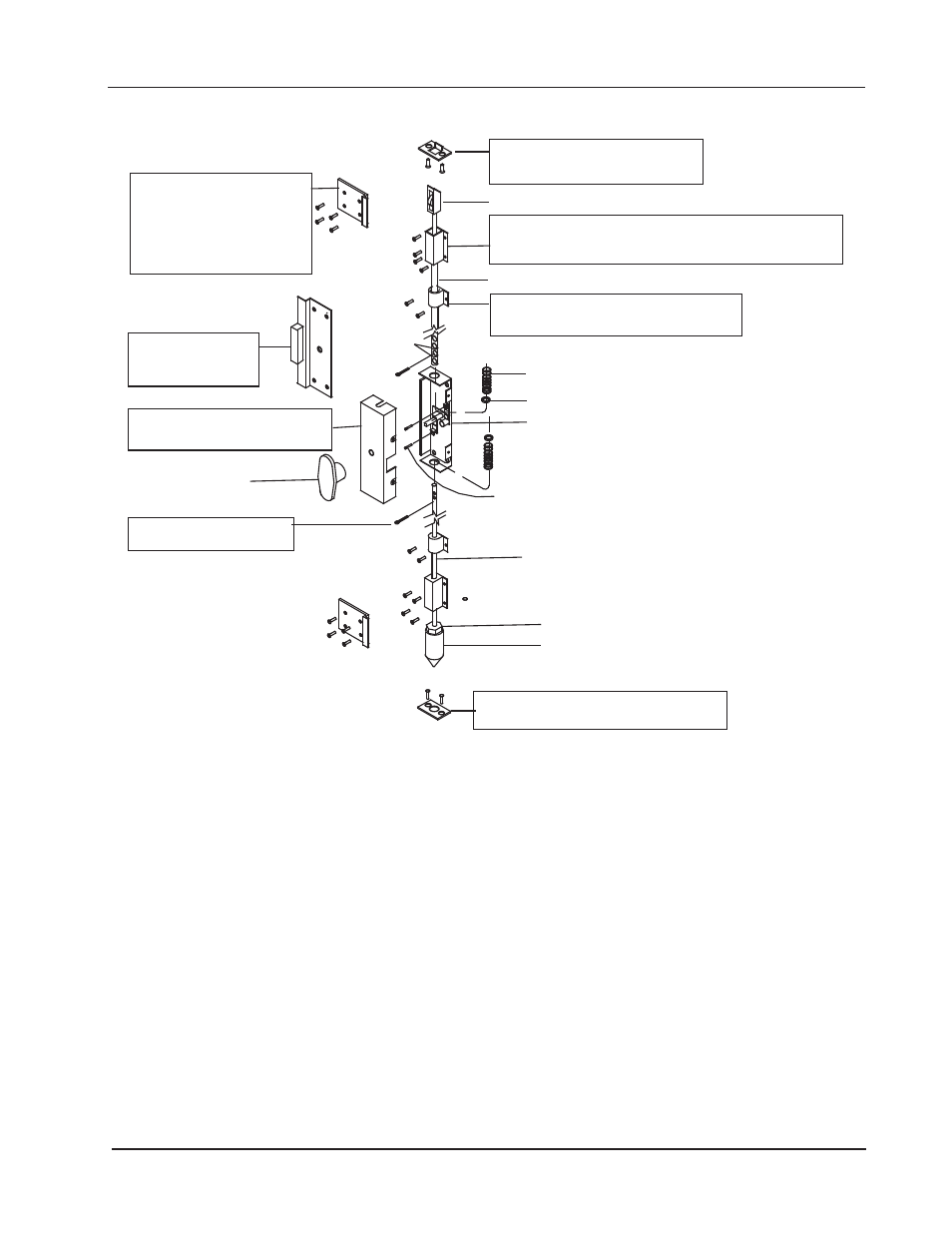

FIGURE 7 ILLUSTRATED PARTS BREAKDOWN
Overlap plate, VRA-173
2 required, type B only
one-way screws,
#10 x 1” type AB
2 per plate
type AB Phillips - head screws
#10 x 1”, 2 per plate
Strike, closed back
VRA-161
For type - C only
Cover, VRA-179
#8-32 x 3/16”
Pan-head machine screws, (2)
Handle, VRA-137
Cotter-pin
PP-5096-7G, 2 required
Upper strike plate
VRA-121
#10 x 3/4” flat-head screws (2)
Upper bolt, VRA-139
Bolt housing, VRA-119 (2)
One-way screws, #10 x 1” type AB, 2 per housing
Phillips-head screws, #10 x 1” type AB, 2 per housing
Upper rod, VRA-144, specify door height in inches
Rod guide, VRA-117 (2)
#10 x 3/4” oval-head screws, type AB
(2 per guide)
Spring, VRA-193, 2 required
Washer, PP-5063-37, 2 required
Base assembly, VRA-192
Pin, VRA-135, 2 required
Lower rod, VRA-118
Jam nut, PP-5062-37
Lower bolt, VRA-129
Lower strike plate, VRA-127
#10 x 3/4” flat-head screws, type AB
Cut rod here
if necessary.
