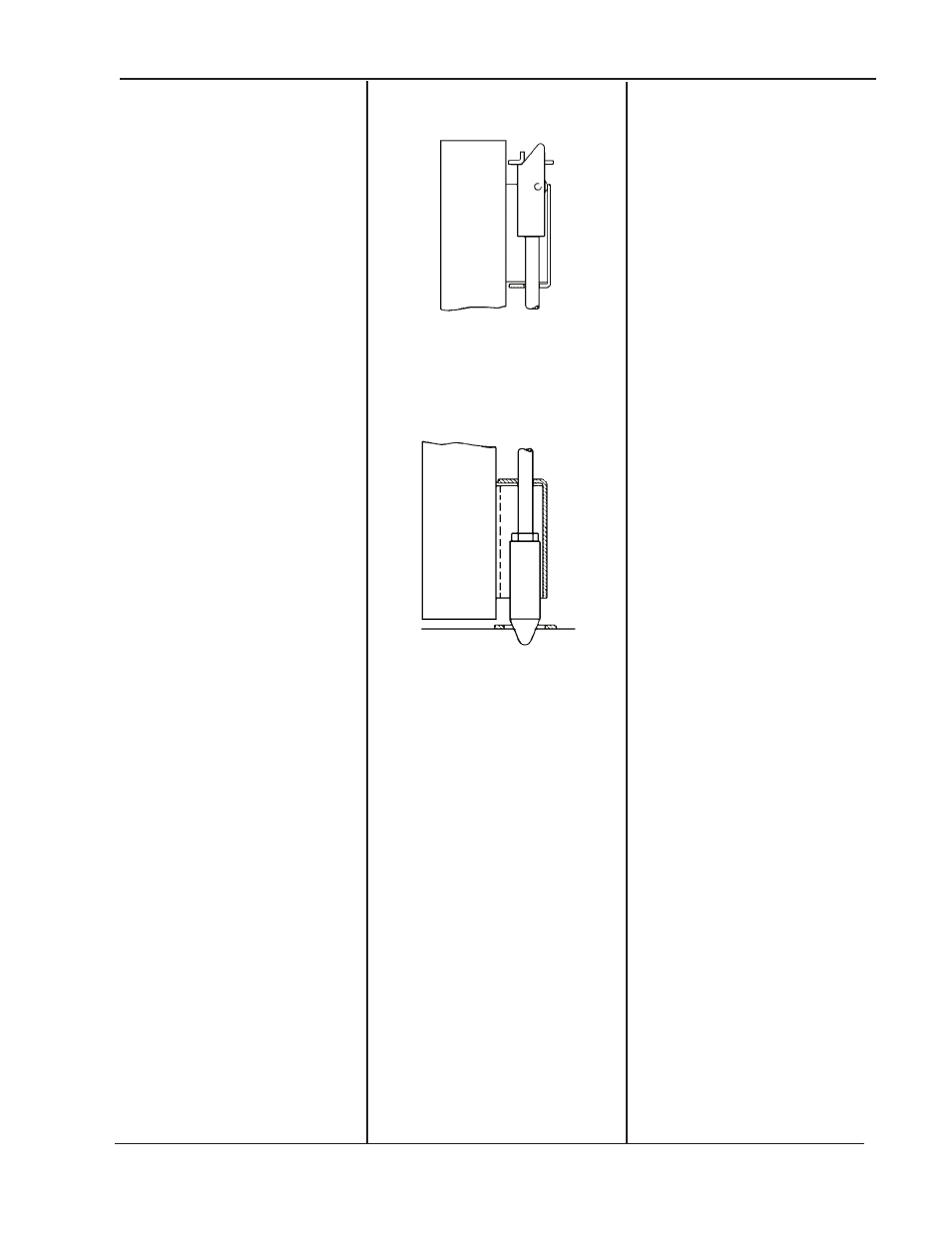

FIGURE 5
FIGURE 6
The lower bolt must be adjusted so
that the bolt enters the lower strike
plate as shown in figure 6. Adjust
the bolt by screwing or unscrewing
it on the rod. Tighten the jam nut on
the lower rod.
When all the adjustments are com-
plete, operate the VRA handle to
make sure that the mechanism works
freely and the top and bottom bolts
enter the strike plates properly when
locked. Make sure that the top and
bottom bolts clear the strike plates
when the rods are retracted.
Replace the temporary screws in the
top and bottom bolt housings with
"one-way" screws.
INSTALL COVER
Remove the VRA handle and install
the cover with two pan-head screws,
1/4" long. Install the handle.
INSTALL ECL(S)
Refer to the instructions provided
with the ECL-230 and install the
products(s). If a type-C installation
with an OKC, install the cylinder
before installing the ECL-230.
OVERLAP PLATES
If a type-B installation., install the
top and bottom overlap plates with
two one-way screws and two Phil-
lips-head screws each.
See figure 7.
PROBLEMS?
Contact Customer Service at
1-800-729-3839
