Installation
Hanger Plate Location for Single or Pair Push Units
The hanger plate should be located 5/8" from the outside edge of the hinge jamb, (typical 1 3/4”
frame face) level and flush with the bottom of the header of the door frame. Bar clamp the
hanger plate. Using hanger plate, mark and drill holes into header frame, solid wall or wall stud.
Fasten using appropriate type and size screws (Detex recommends using flat head type).
Note: Drilling debris accumulated in hanger groove tracks can prevent the operator from seating
uniformly when mounting. Remove debris with thin brush. Masking tape can also be used to
prevent debris from collecting in groove.
Lift the operator and lower onto the webs of the hanger plate bracket. Be sure both top and
bottom are engaged.
104850 Page 4

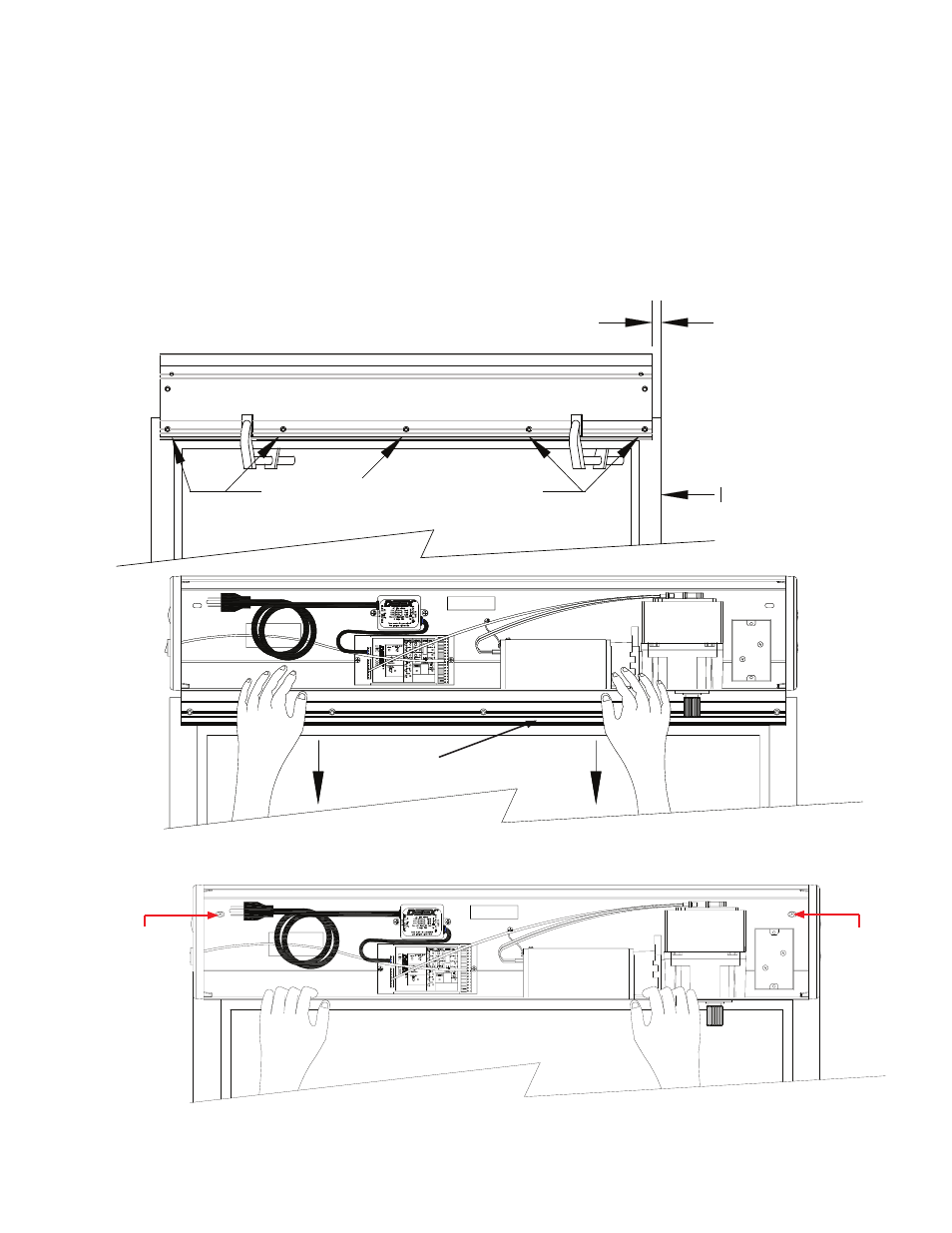

SECURE HANGER WITH SCREWS
HINGED SIDE
5/8”
Once they are seated, pull down until unit is completely flush and screws can be replaced in
top corners.
Hanger Plate
Replace
Screw
here
Replace
Screw
here
