Detex 02AN Trim - Manual (Page 3)

1/4"
Floor
Interior door face
101324 Page 3
Pilot Hole
Mark 1/4" UP
from center mark
5
For 03 function ONLY
Drill 1-1/2" hole through exterior
door face ONLY
(1/4" up from center mark)
Drill 3/8" thru holes
3
For 03 function, drill
pilot hole thru door.

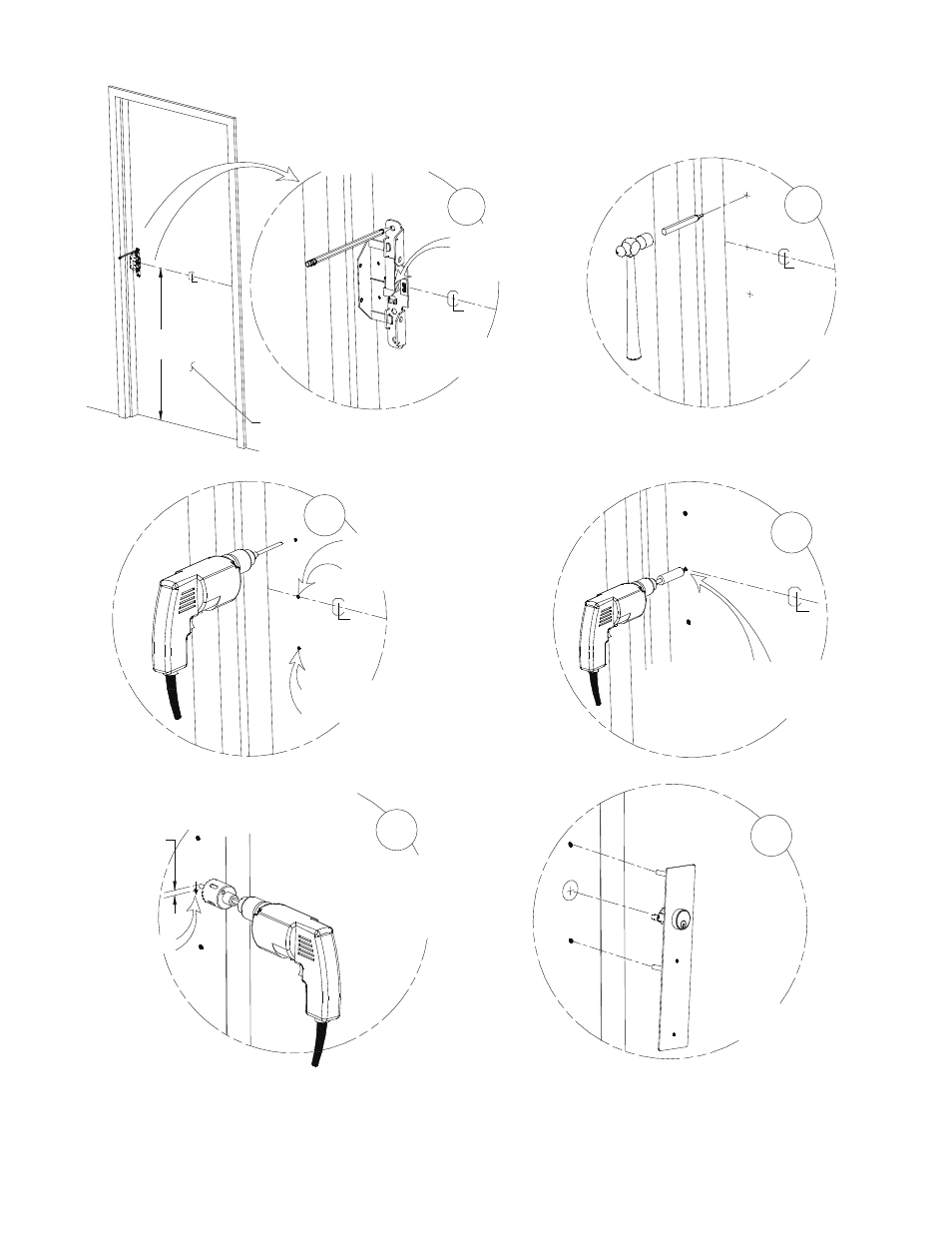

Mark mounting plate holes
(narrow stile shown)
For 03 function
mark centerhole
1
Note: All Holes Must Be
Drilled Straight and Level
Punch marked
holes
2
For 03 function ONLY
Next, drill 3/4" hole through interior
door face ONLY
4
6
Place trim unit onto
exterior door face.
Door Preparation
INTERIOR PREP
Height
EXTERIOR PREP
