The WI-127's front panel consist of 24 keys and 14 annunciators.

The WI-127's keys are divided into four primary groups:

Standard Scale Keys –

–

– These yellow keys are common to a majority of

weighing applications and include SELECT, TARE, PRINT, ZERO, and
UNITS.

SELECT –

–

– Used to switch between the gross, tare, and net display

modes. SELECT can also be used to accept a current selection and
return to weighing mode from within any menu.

TARE –

–

– Enters a push button tare in the display mode. Can be

configured to accept values entered through the numeric keypad.

PRINT – Used to initiate manual data transmission.

ZERO – Zeros the scale in the display mode. Also clears values in
numeric entry.

UNITS – Switches the units of measure in the display mode. Up to
three units of measure are selectable.

WI-127 Indicator Introduction

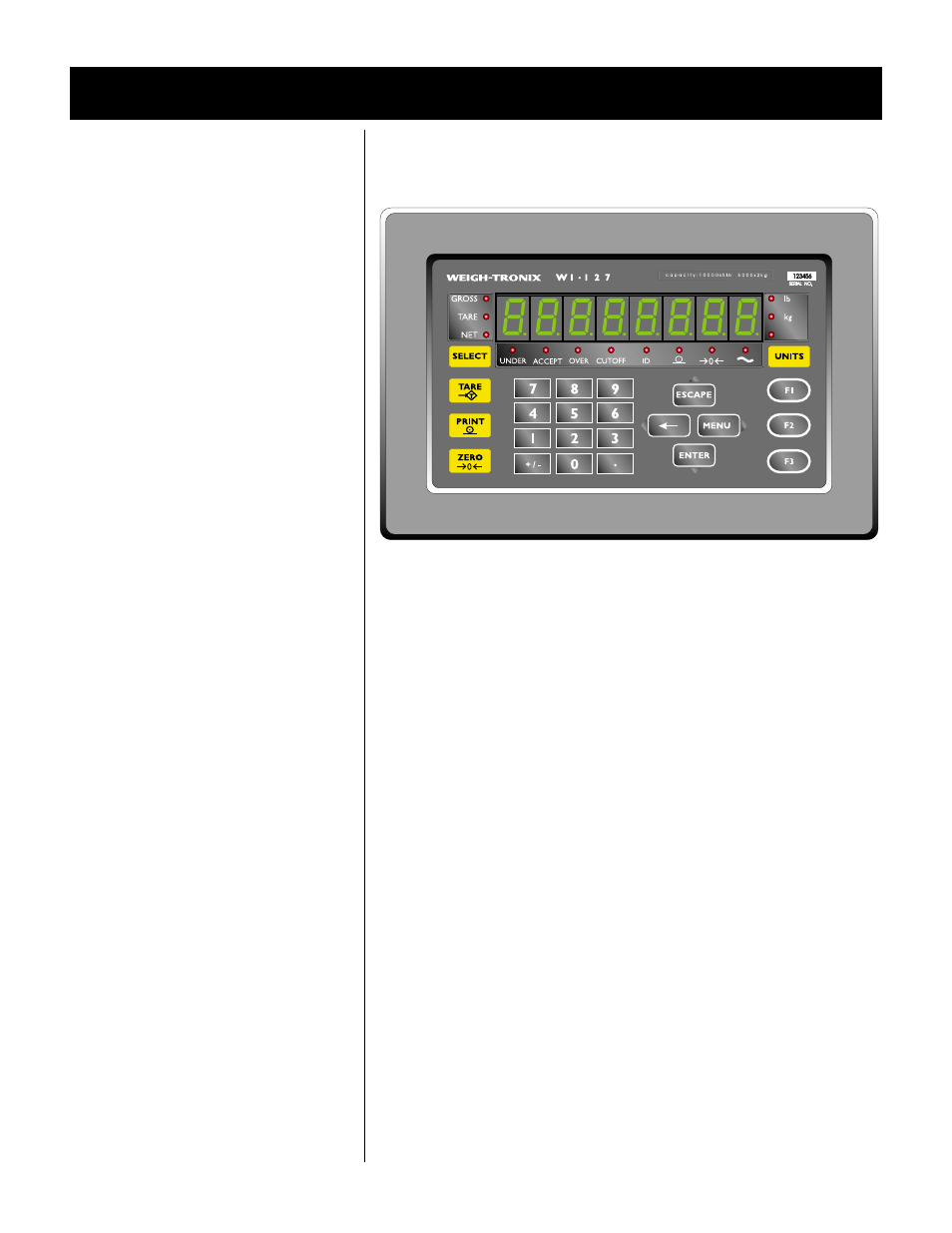

Figure 3

WI-127 Front Panel

Keys
