Shooting Mode Selector
®

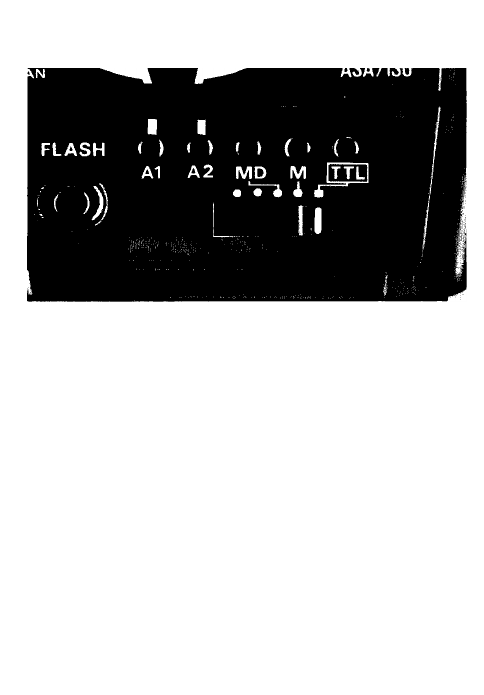

The shooting mode selector on the back of the SB-16 has
five click-stop settings. Directly above the selector (read
ing from left to right), there are the blue and orange dots
for non-TTL automatic operation, two white dots in the
middle Indicating MD (Motor Drive) and M (Manual)
operation respectively, and a white square at the far righf
which is for TTL operation.
As soon as the SB-16 is turned on, one of the appropriate
LEDs (green for TTL and red for all the rest) above the
selector lights up to indicate the setting selected.
Usable shooting modes depending on the combination of
the type of fhe flash unit and camera are as listed on
page 5.
TTL (through-the-lens automatic operation)
This mode provides automatic through-the-lens (TTL)
