Connecting the Glasstron (continued)

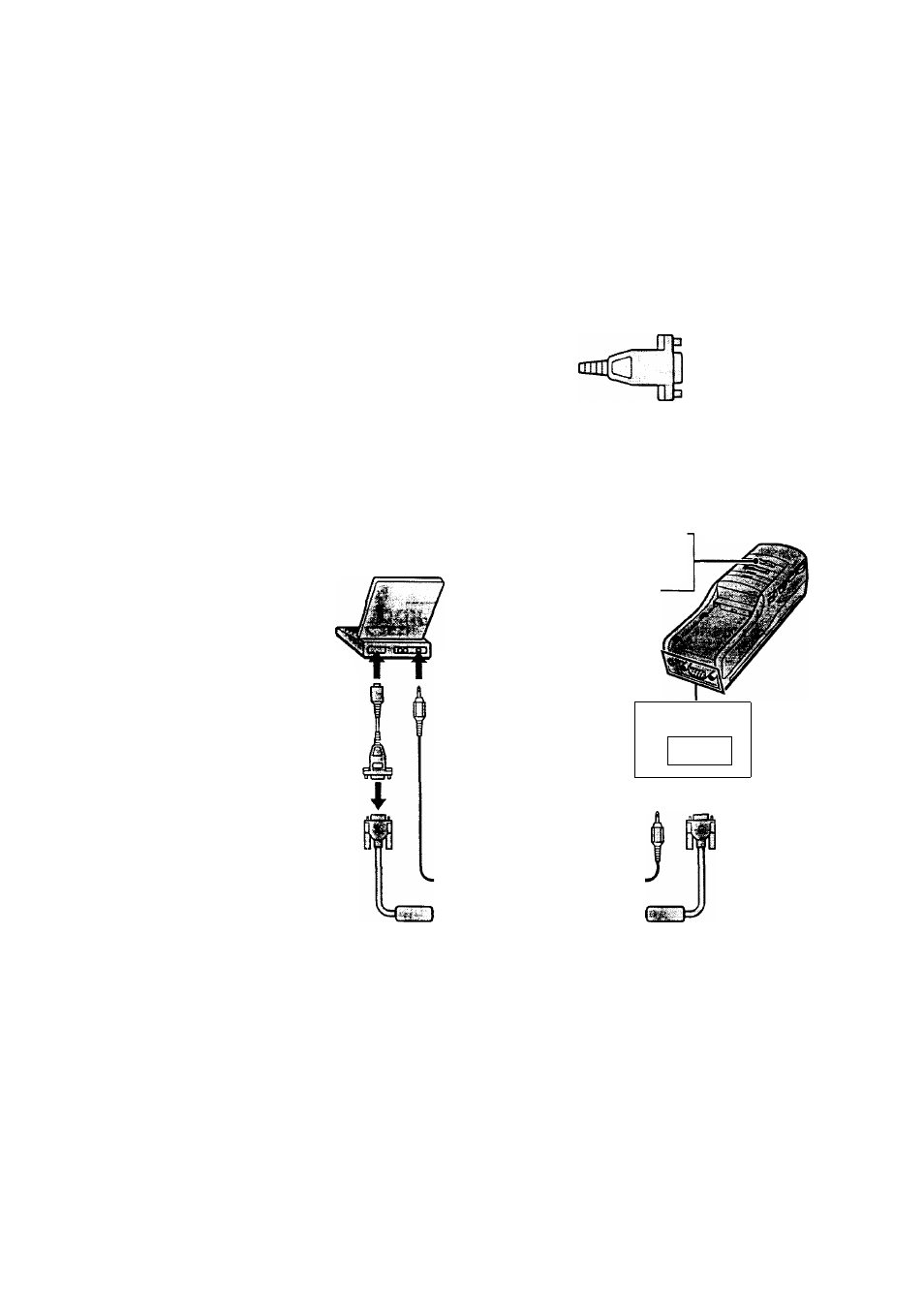

Connecting a Macintosh Powerbook
Depending on the model, you may need to use a commercially available adapt, r connect the
RGB signal cable (supplied) as shown below. When you connect the Glasstron
Powerbook, set thë PC-VIDEO switch on the power supply box to "PC."
our
to monitor
port of
Powerbook
À
^
Connector should match the monitor
port of your Powerbook model.
to RGB
signal cable
VGA type connector
(HD15, female)
Power supply box
to monitor port
Adapter
Set the PC-VIDEO switch
to "PC."
to audio port
PC
RGB
AUDIO
-©■
to PC AUDIO
connector
to RGB connector
Audio cable (supplied)
-----------!======
RGB signal cable (supplied)
: Signal flow
Note on connection
Set the display setting to the 16-inch display mode (832 x 624) or the 13-inch display mode (640 x 480).
The Glasstron does not display the image with the 19-inch display mode (1024 x 768) or more.
