Playing Back a Tape
This section shows you how to view the piayback picture on the TV screen. You
must connect the camcorder and the TV and/or VCR property.
In an earlier section (page 16), we explained the basic connection to your TV.
Here, we will show you several other methods of connection to your TV
depending on the type of TV you have.
If you connect a TV which has video/audio inputs, see page 16.

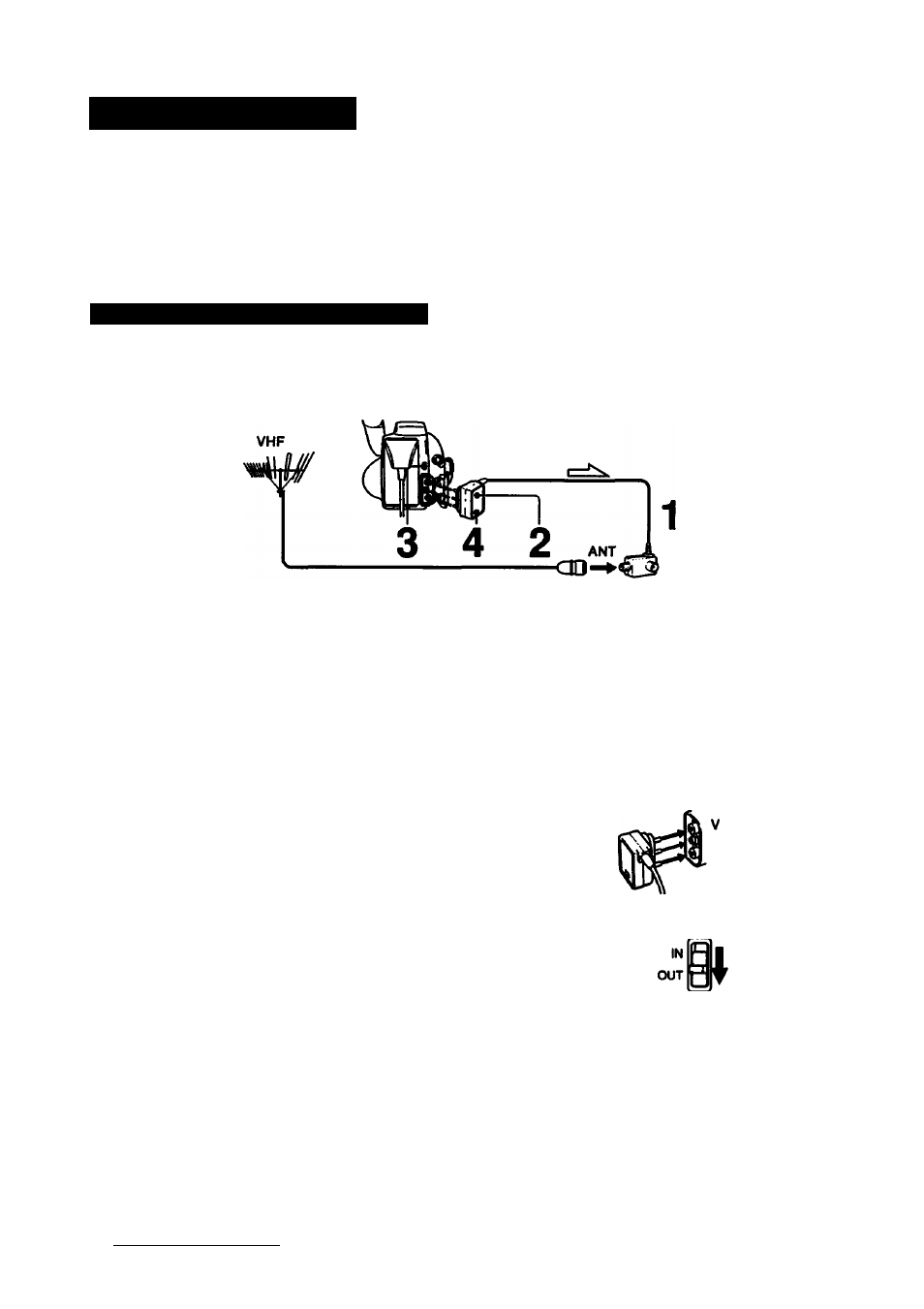

If Your TV Has Only an Antenna Input
Use the supplied RFU adaptor to connect your camcorder to the TV. Make sure
that the TV is turned off to prevent speaker damage before hooking up to your
camcorder.
UHF unrà
; Signal flow
TV
OUT
VHF antenna
To add your camcorder connection to a TV which already has a regular TV (VHF)
antenna attached, you need to do the following procedure.
1
Unplug the antenna cable from the TV first
Rug the tail-end of the RFU adaptor marked OUT into the antenna input of
your TV. Re-wire the antenna cable you unplugged to the RFU adaptor jack
marked ANT. This way, you can switch between TV broadcasts and your
home video playback without re-wiring.
Connect the RFU adaptor to the camcorder.
RFU DC OUT
A
Slide IN/OUT on the camcorder to OUT.
Set the channel selector on the RFU adaptor (and
your TV diannel) to 3CH or 4CH of the VHF channel,
whichever is not active (vacant) in your area. 3CH-^lD~l^4CH
44
Chapter 3: Advanced Operation
