EXIT FEED LINE (With Hose)

CAUTION

■ Arrange the parts to be positioned free from interference with the hoses, so there's no tension.

■ Apply a small amount of engine oil to the tapered surface of the AN screw for lubrication.

Failure to do so can cause scratches and possible fuel leaks.

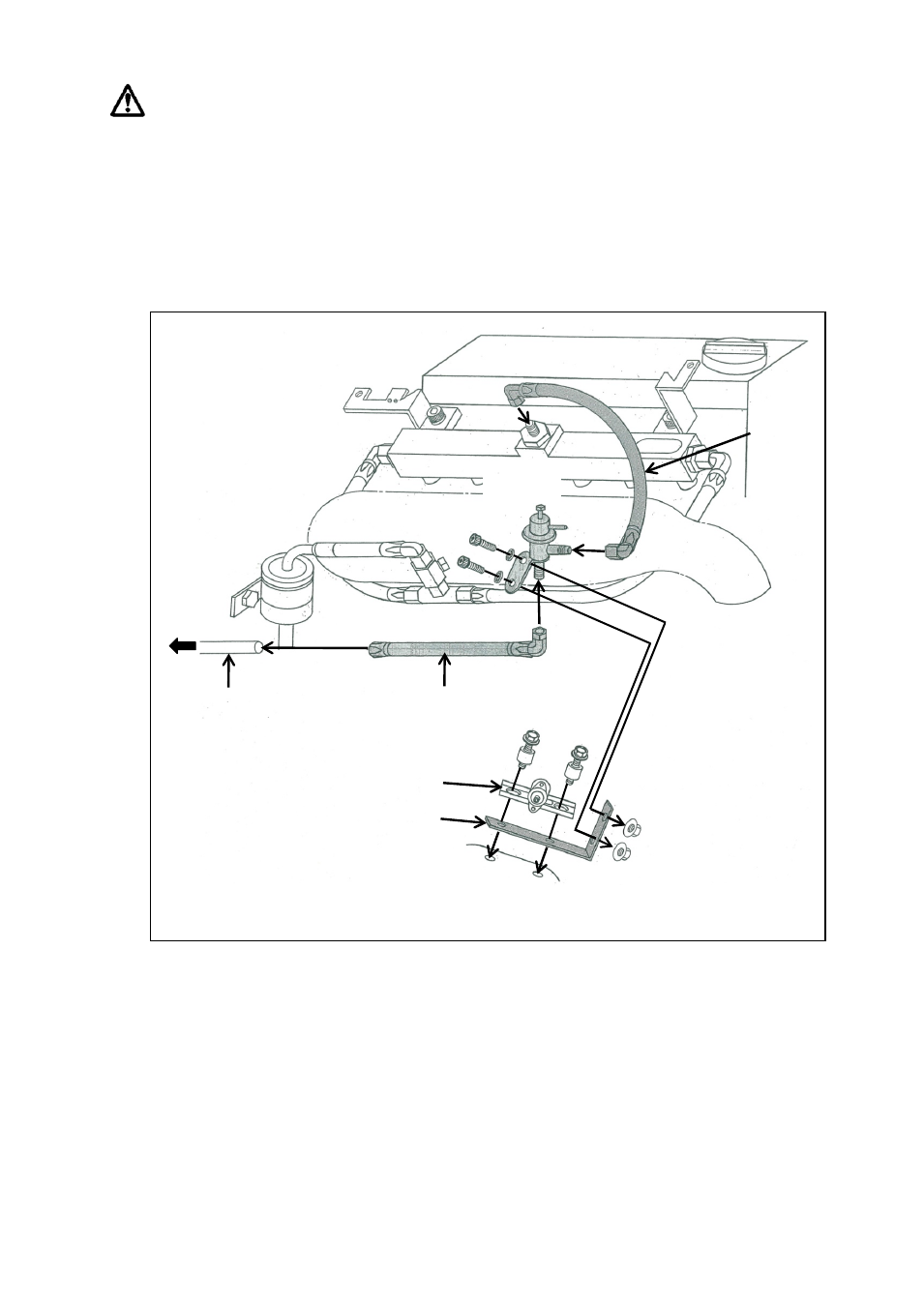

① Loosen the two bolts, then remove the solenoid valve.

② Fasten the solenoid valve to the regulator brackets.

③ Fasten the regulator to the bracket with 6mm bolts.

Hose B

Regulator

6mm Bolt

To Tank

Hose D

Fuel return line

Soleniod Valve

Regulator Bracket

Nut
