Tomei Powered FUEL RAIL - Manual (Page 15)

15

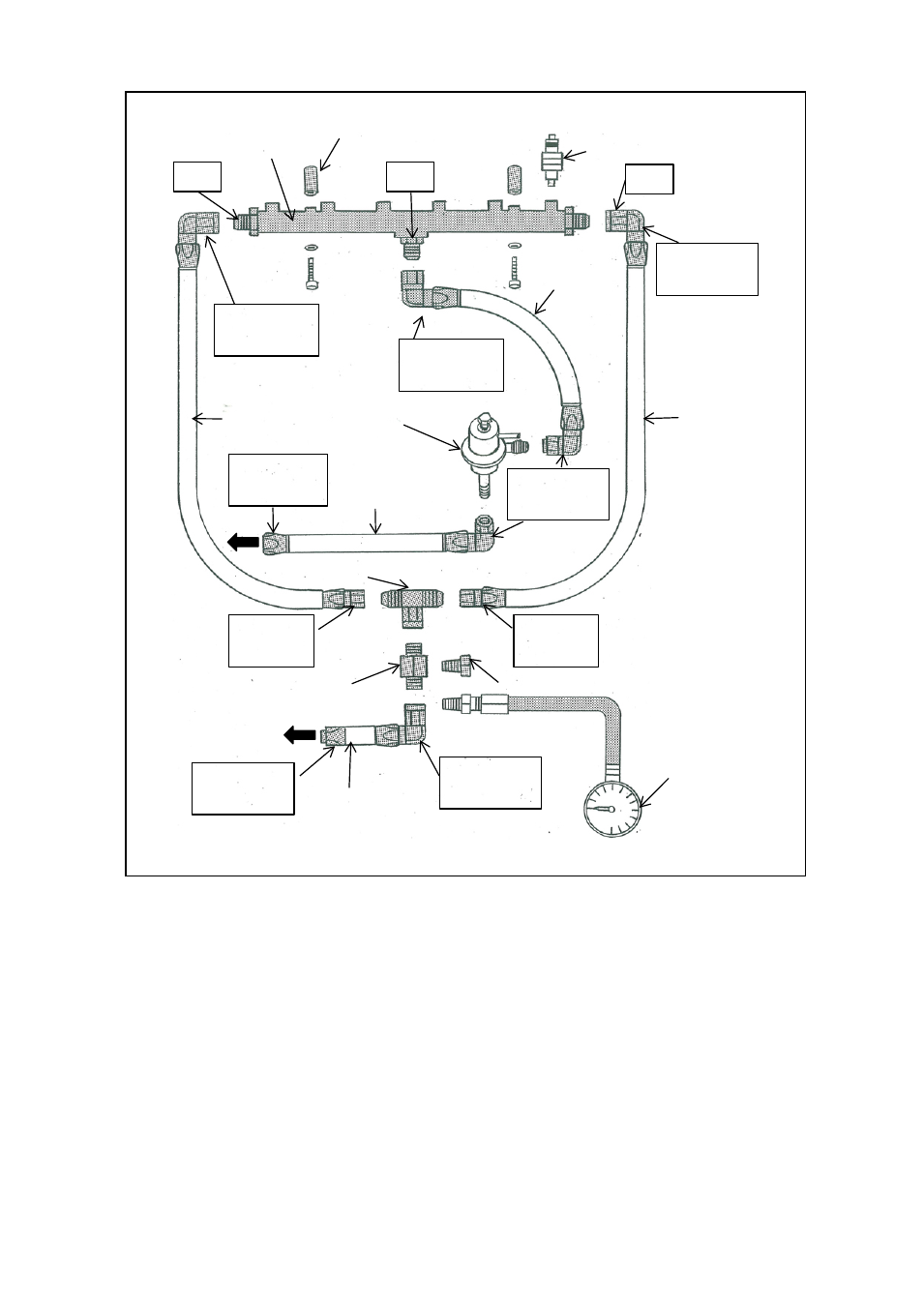

ASSEMBLY CONFIGURATION
AN6
Delivery Pipe
Spacer
AN6 AN6
Insulator (Optional)
Bolt
90°Forge
(Size 6 )
90°Forge
(Size 6)
90°Forge
(Size 6 )
Hose A
Hose B
Hose A Regulator
90°Forge
(Size 6 ) Hose D
Econ-O-Fit
(Size 6 )
To Tank
3 Way Adapter (AN Female -AN Male Size 6)
Straight
(Size 6)
Fuel Pressure Guage Adapter
From Filter
Econ-O-Fit
(Size 6 ) Hose C
90°Forge
(Size 6 )
Straight
(Size 6 )
Plug (Size 1/8)
Fuel Pressure Gauge
(Optional)
