45
Completing the Storage Center Setup
Completing the Storage Center Setup
Completing the Storage Center setup consists of these steps:
• Configure a Phone Home Proxy on page 45
• Phone Home on page 46
• Check for Storage Center Updates on page 47
Configure a Phone Home Proxy
If you will use a proxy server in your network for Phone Home, configure the Phone Home
Proxy Server before checking for Storage Center updates:
1 From the Storage Management menu, select System > Phone Home > Configure
Phone Home Proxy. The Configure Phone Home Proxy dialog appears.

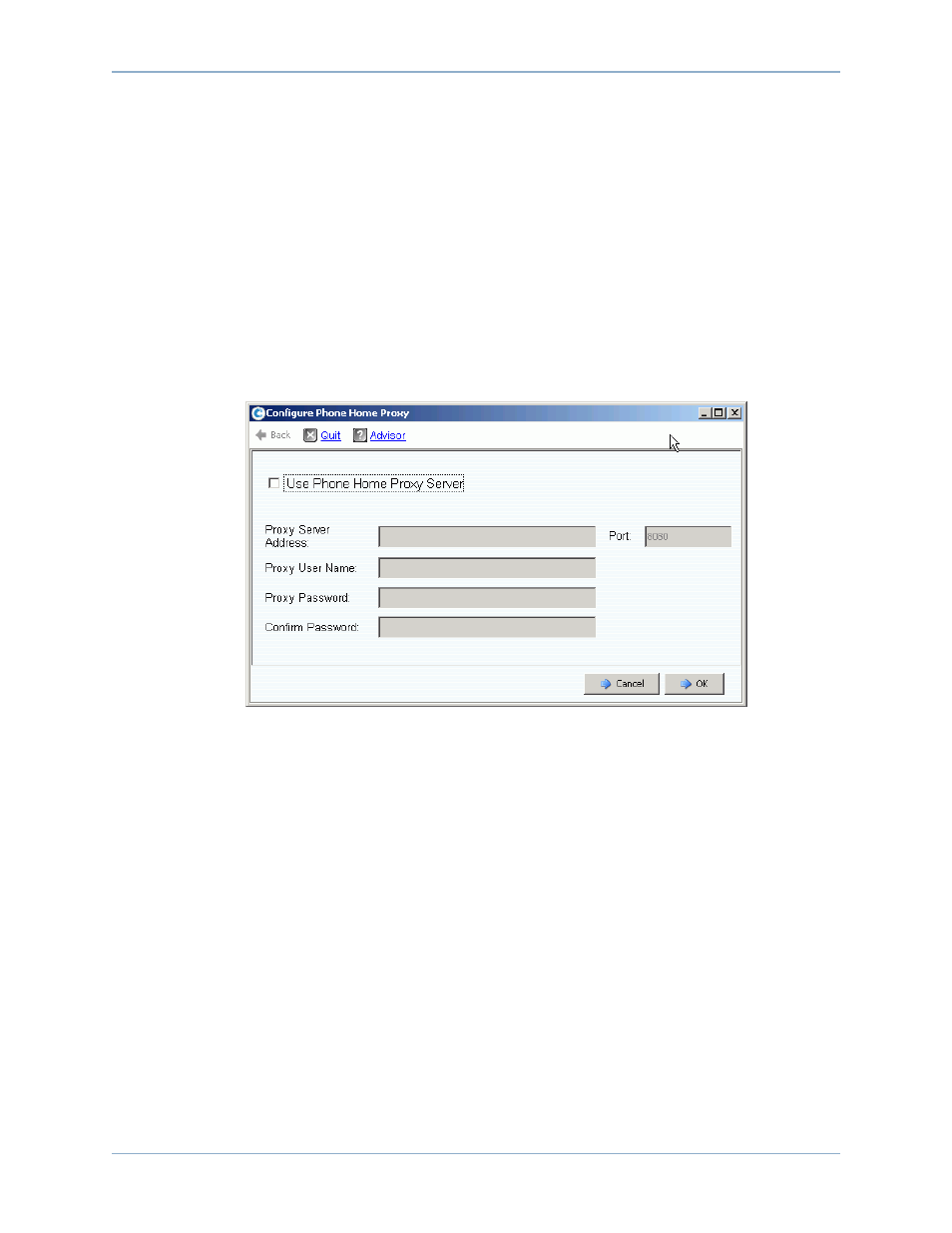

Figure 42. Configure Phone Home Proxy
2 Select Use Phone Home Proxy Server. Enter the following:
• Proxy Server Address and Port: Enter the IP address and port for the proxy server.
• Proxy User Name: Enter the user name for the proxy server.
• Proxy Password/Confirm Password: Password for the proxy server.
3 Click OK.
