Dell Compellent Series 30 User Manual
Page 26
20
Storage Center System Setup Guide
Setting Up the Storage Center
Advanced SMTP Options

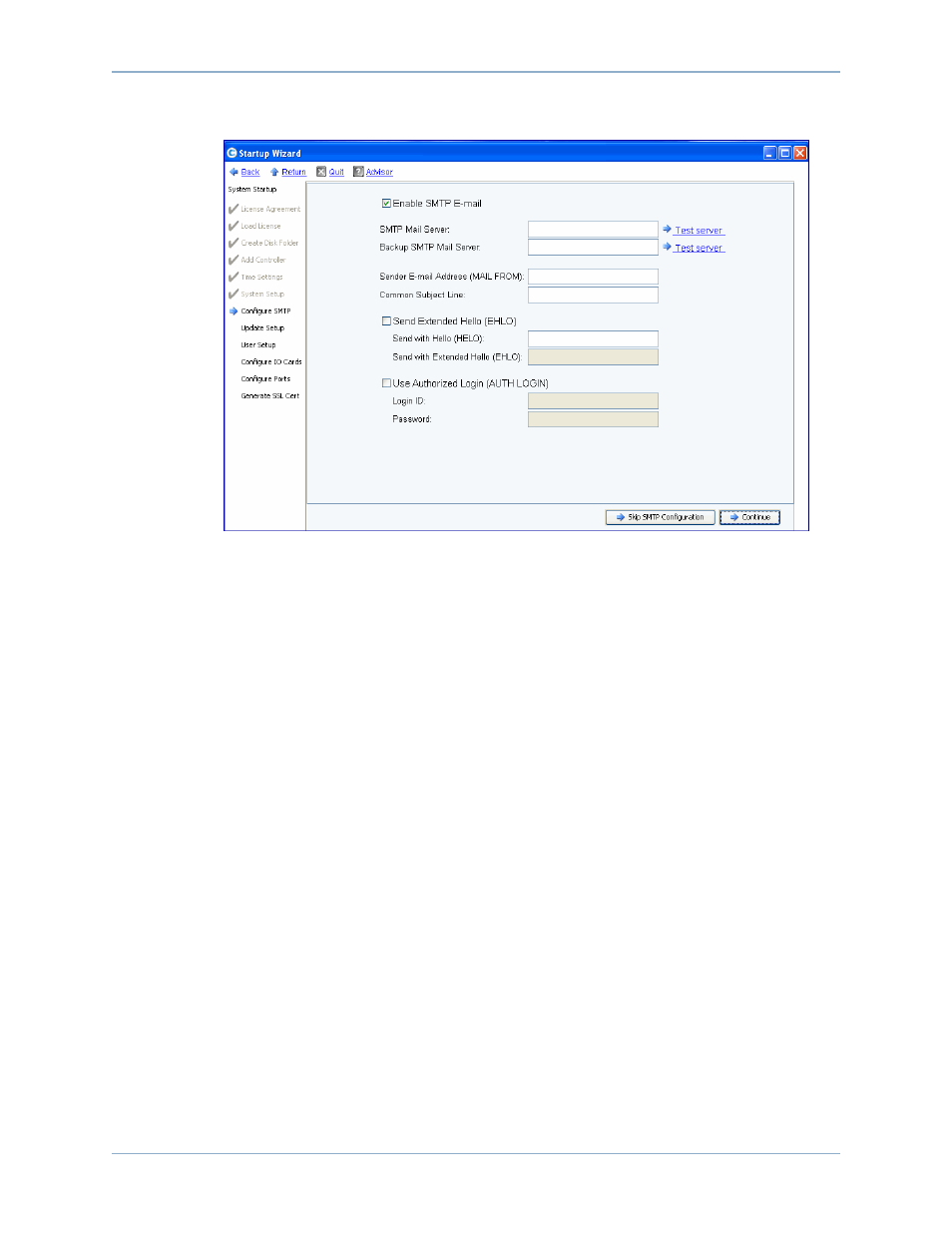

Figure 14. Advanced SMTP Options
1 The default is Enable SMTP E-mail.
2 Enter the IP address or fully-qualified domain name of the SMTP mail server in the
SMTP Mail Server box.
3 Enter the IP address or fully-qualified domain name of the backup mail server in the
Backup SMTP Mail Server box.
4 Click Test server to test the connection(s).
5 Enter a Common Subject Line for all emails from Storage Center.
6 Enter the email address of the sender in the Sender E-mail Address (MAIL FROM)
box, and a common subject line for all emails from Storage Center in the Common
Subject Line box.
7 Check the Send Extended HELO (EHLO) box to configure use of extended hello for
mail system compatibility. Instead of beginning the session with the HELO command,
the receiving host issues the HELO command. If the sending host accepts this
command, the receiving host then sends it a list of SMTP extensions it understands, and
the sending host then knows which SMTP extensions it can use to communicate with
the receiving host. Implementing Extended SMTP (ESMTP) requires no modification of
the SMTP configuration for either the client or the mail server.
8 Check the Use Authorized Login (AUTH LOGIN) and complete the Login ID and
Password boxes if the email system requires the use of an authorized login.
9 Click Continue.
