Device Status: Dell™ Wireless 2350 Broadband Router User's Guide

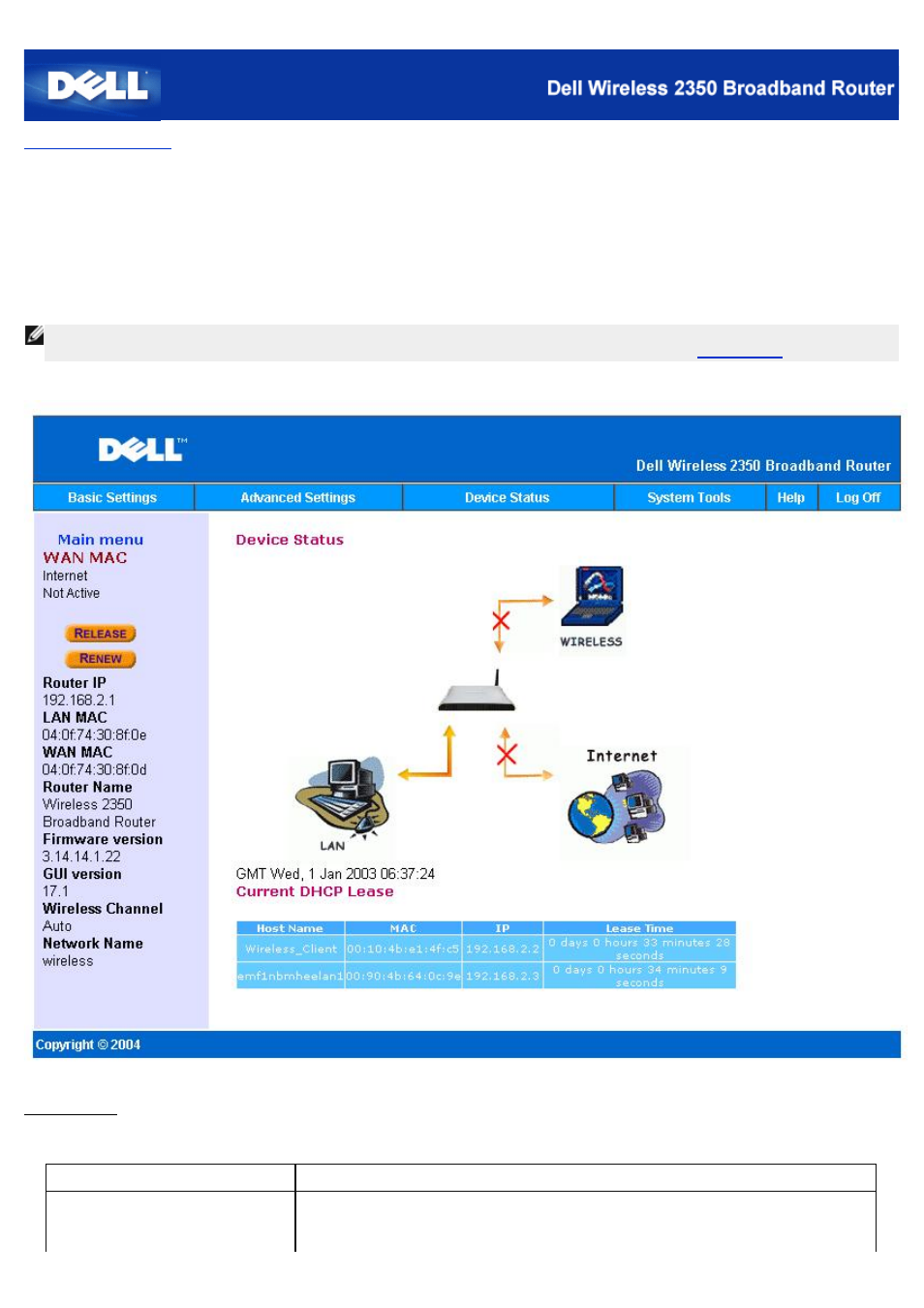

The Device Status screen displays the basic network settings for your Dell Wireless 2350 Wireless Broadband Router. When changes are
made to the network settings, those changes are updated on this screen. In addition, it graphically displays the current connection status
for the Dell Wireless 2350 Broadband Router and other devices in your network. Connections between network devices are shown with a
yellow arrow. Inoperative connections are represented by a red X through the yellow connection line.
NOTE: The Dell Wireless 2350 Broadband Router offers two ways to check the status of your network. One is the Device Status
feature in the web configuration tool mentioned here. The other is through the Windows-based Control Utility .
Status
Device Status
The following connections are displayed on the Device Status page:
Device Indication
Internet
An inactive cable/DSL connection indicates that either the cable is unplugged or the Dell
Wireless 2350 Broadband Router has not received an IP address.
