4. Remove the palm rest assembly (see Removing the Palm Rest Assembly ).
5. Disconnect the bridge battery cable from the connector on the left daughter board.
6. The bridge battery is glued to the base cover. Using a plastic scribe pry the bridge battery out of the base cover.
Replacing the Bridge Battery
1. Follow the instructions in Before You Begin .
2. Use the adhesive on the bridge battery and adhere it to the base cover.
3. Connect the bridge battery cable to the connector on the left daughter board.
4. Replace the palm rest assembly (see Replacing the Palm Rest Assembly ).
5. Replace the computer battery (see Replacing the Computer Battery ).
Back to Contents Page

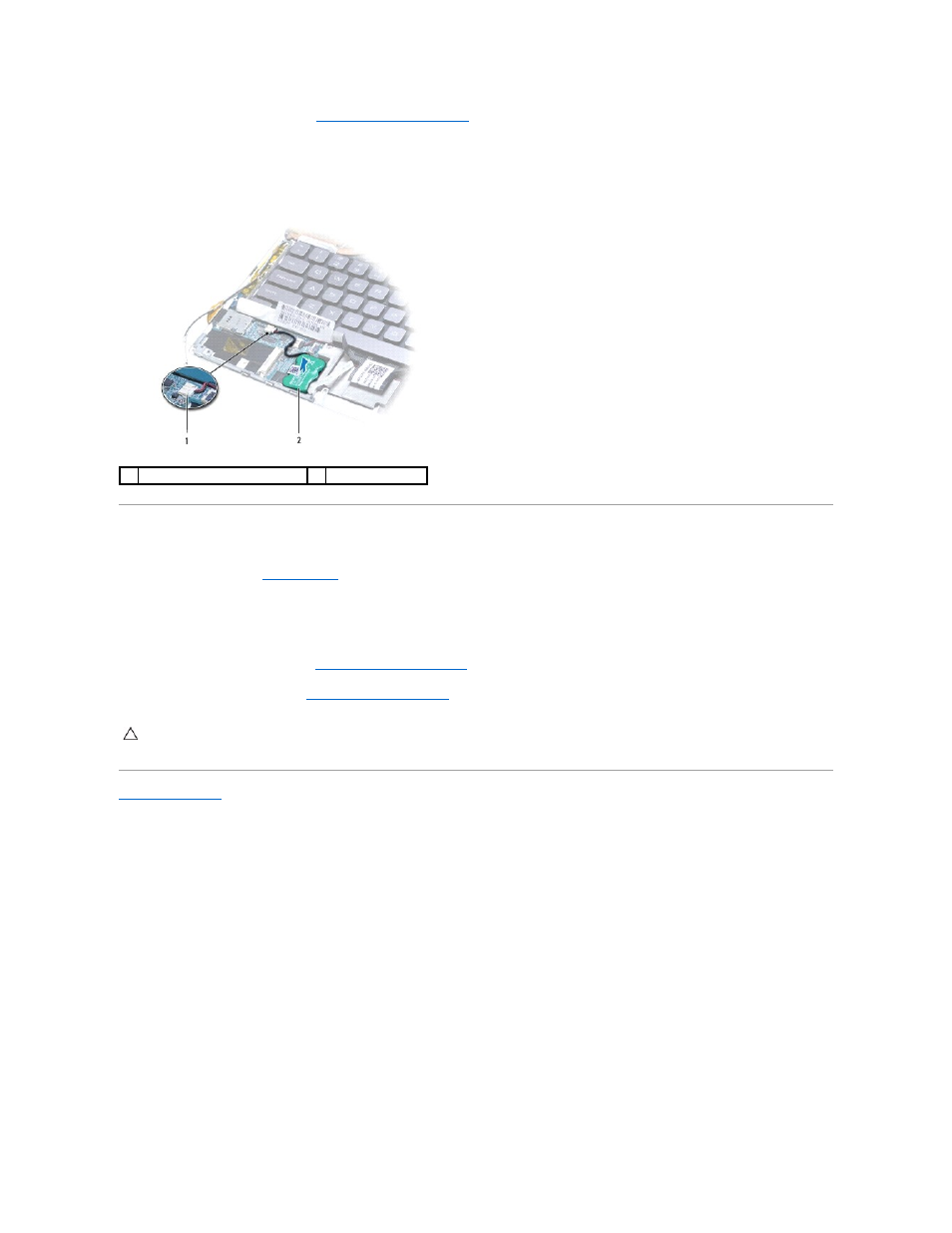

1 bridge battery connector 2 bridge battery
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
