Service Tag Panel
Adamo XPS™ Service Manual
Removing the Service Tag Panel
Replacing the Service Tag Panel
Removing the Service Tag Panel
1. Follow the instructions in Before You Begin .
2. Remove the computer battery (see Removing the Computer Battery ).
3. Remove the two screws that secure the service tag panel to the computer.

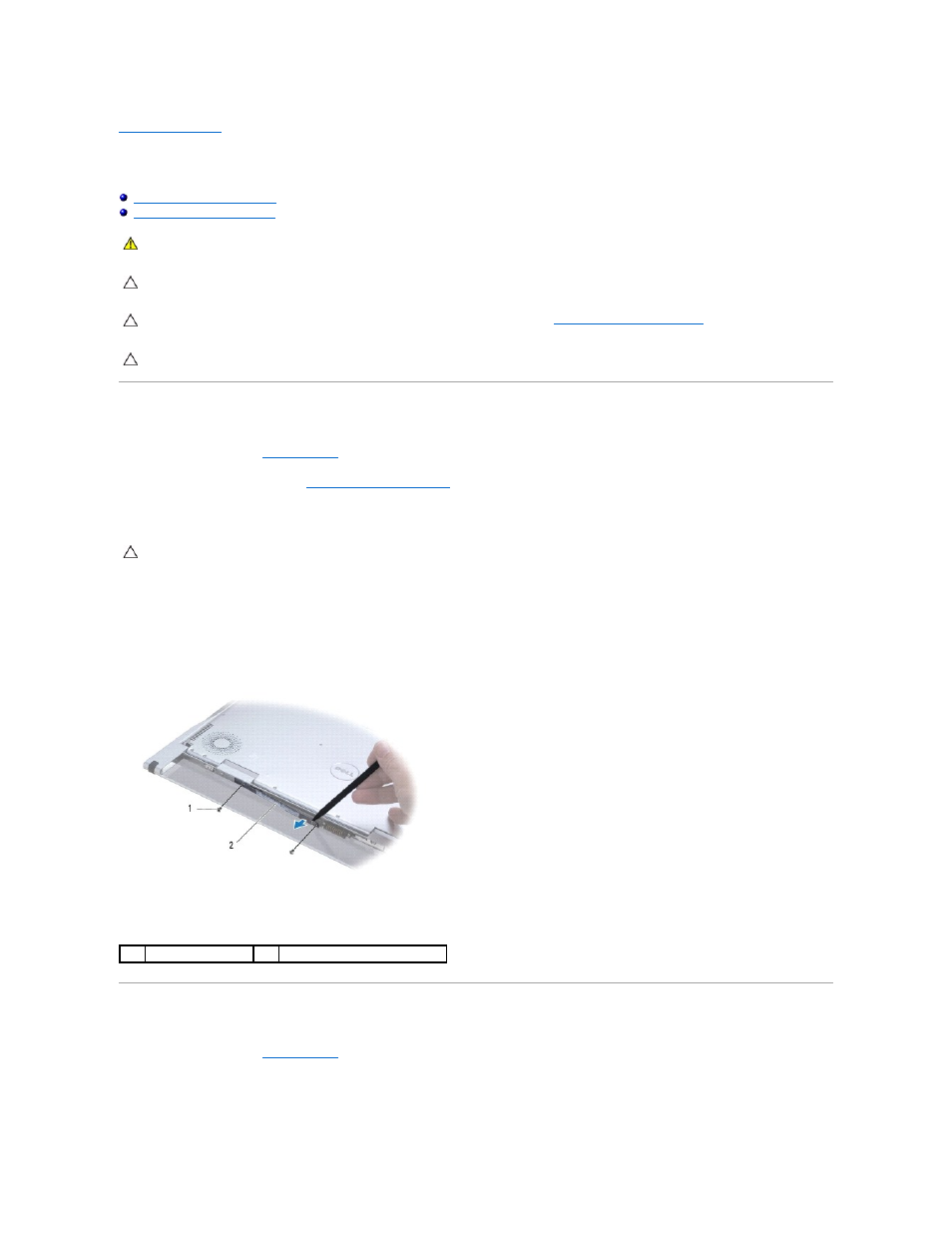

4. Pry the right side of service tag panel as shown in the illustration.
5. Slide the service tag panel out of the slot on the battery bay.
Replacing the Service Tag Panel
1. Follow the instructions in Before You Begin .
2. Align the antenna cables below the service tag panel clamp.
3. Slide the left side of the service tag panel into the slot on the battery bay.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Computer Battery ) before working inside
the computer.
CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell™ computer. Do not use batteries designed for
other Dell computers.
CAUTION: Be extremely careful when removing and handling the service tag panel. Failure to do so could result in damaging the service tag
panel.
1 screws (2) 2 service tag panel
