Internal Module With Bluetooth Wireless Technology
Adamo XPS™ Service Manual
Removing the Bluetooth Card
1.
Follow the instructions in
Before You Begin
.
2.
Remove the computer battery (see
Removing the Computer Battery
).
3.
Open the display (see
Opening the Display
).
4.
Remove the palm rest assembly (see
Removing the Palm Rest Assembly
).
5.
Remove the screw that secures the Bluetooth™ card to the right daughter board.
6.
Lift the Bluetooth card to disconnect it from the connector on the right daughter board.
7.
Turn the Bluetooth card over.
8.
Disconnect the blue antenna cable from the Bluetooth card.
Replacing the Bluetooth Card
1.
Follow the instructions in
Before You Begin
.
2.
Connect the blue antenna cable to the Bluetooth card.
3.
Turn the Bluetooth card over.
4.
Align the connector on the Bluetooth card with the connector on the right daughter board, and press gently to connect the Bluetooth card to the right
daughter board.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Computer Battery
) before working inside
the computer.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.

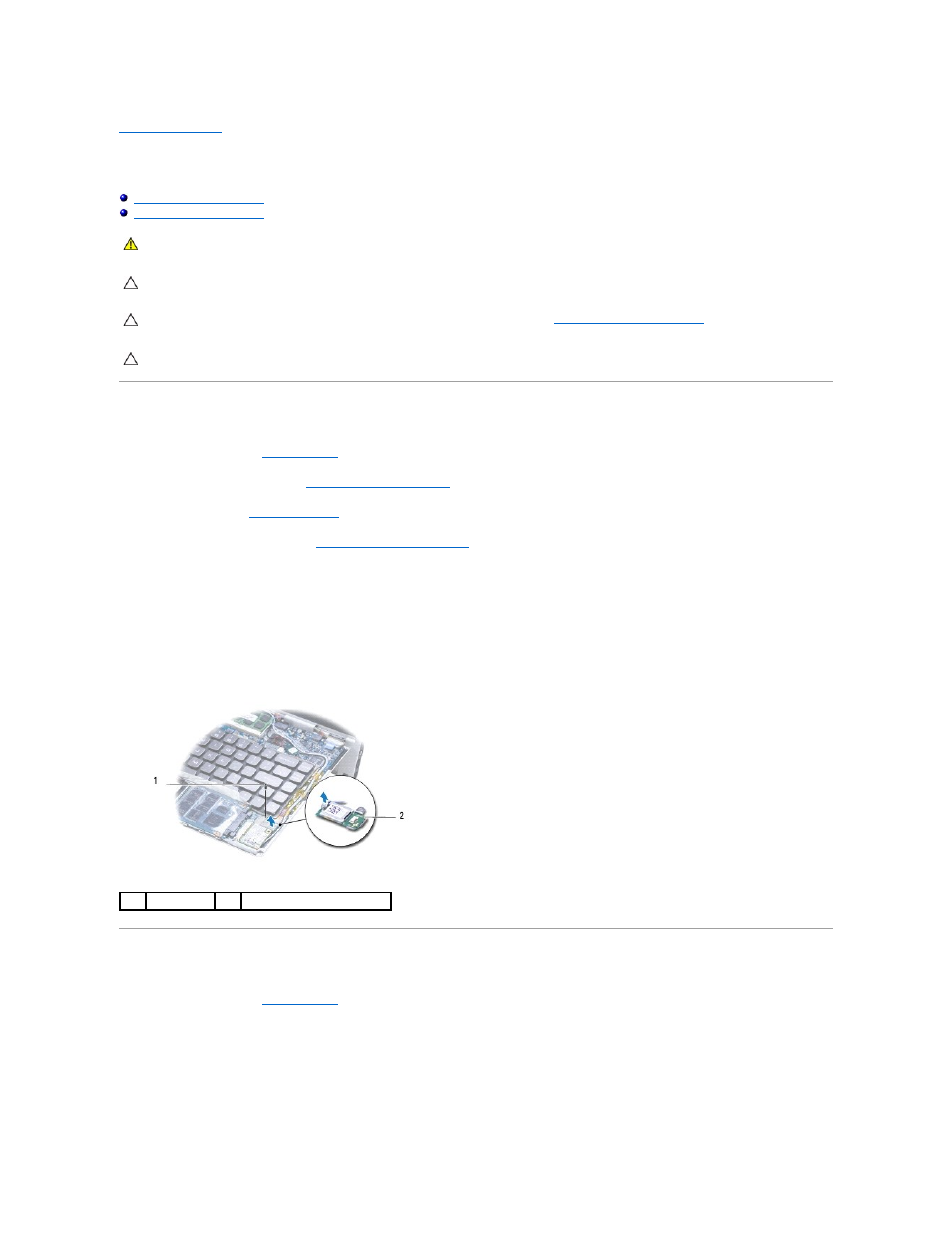

1
screw
2
Bluetooth card
